| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | DV-1T, DV-2T |
| Minimum Order Quantity: | 1 set |
| Price: | USD500-3000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Measuring Range (MPa·sec): | MPa.s 100-13 Million; 200-26 Million; 800-104 Million | Rotor: | R2 – R7(6, Marking) |
|---|---|---|---|
| Display: | English Display Screen | Power: | 220V/110V |

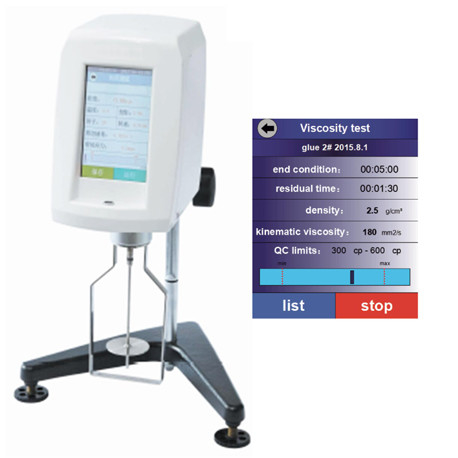

DV-1T DV-2T Series Digital Rotary Viscometer /Touch Screen Rotational Viscometer
DV-1T DV-2T Series Digital Rotary Viscometer ( touch screen rotational viscometer) is used to test the viscosity of the sample; it is widely used in adhesives (solvents), biological fluids, chemicals, cosmetics, milk products, hot wax, ink, fruit juice, latex, edible oil, petroleum, ink, paints and coatings and other high viscosity industries, include RVDV-1T, HADV-1T, HBDV-1T, RVDV-2T, HADV-2T, HBDV-2T model. DV-1T DV-2T Series Digital Rotary Viscometer adopts high-performance imported microcomputer chip, imported stepping motor and other key components, 5-inch touch screen display operation, program setting, automatic control, timing measurement, automatic scanning and other functions; It can measure the absolute viscosity of Newtonian liquid or the apparent viscosity of non-Newtonian liquid. The instrument has high sensitivity, high precision, accurate and reliable test data, and good repeatability.
Features:
10.0.1 to 200 revolutions Continuously Variable Transmission, which is convenient for analyzing and testing the rheological properties of samples, and the test data supports USB disk export;
Technical Parameters:
| model | RVDV-1T | HADV-1T | HBDV-1T |
| Control / display mode | 5-inch color touch screen | ||
| speed(r/min) | 0.3–100 infinitely variable speed , a total of 998 speed options | ||
| measuring range
mPa.s |
100-13 million | 200-26 million | 800-104 million |
| (Measure viscosity below the lower limit, need to choose
R1 rotor) |
|||
| rotor | R2 – R7(6, marking)
R1(Optional) |
||
| Sample dosage | 500ml | ||
| measurement error(Newtonian liquid) | ±1% | ||
| Repetition error
(Newtonian liquid) |
±0.5% | ||
| Display shear response / shear rate | standard configuration | ||
| Timing function | standard configuration | ||
| Display viscosity curve | shear rate – viscosity
Temperature-viscosity Time-viscosity |
||
| kinematic viscosity | Density of sample to be input | ||
| temperature
measurement |
Standard temperature probe interface
(need to select temperature probe) |
||
| autoscan | Automatically scan and recommend the best combination
of rotor and speed |
||
| Maximum measurement range | Automatic display of the selected combination of rotors and rotational speeds in a measurable range of viscosity | ||
| Self-built measurement program | Save up to 30 groups (including rotor, speed, temperature, time, etc.) | ||
| Preservation of measurement results | Up to 30 sets of data can be stored (including viscosity, temperature, rotor speed, shear rate, shear stress, time, density, kinematic viscosity, etc.) | ||
| Data, curves (marked with print interface, printer to be purchased) | |||
| data output interface | RS232 | ||
| Constant temperature component | Selection (all kinds of viscometer special constant temperature slot, constant temperature cup) | ||
| source | Wide voltage work (110V / 60Hz or 220V / 50Hz) | ||
| outline dimension | 300 × 300 × 450 mm | ||
| Type | LVDV-2T | RVDV-2T | HADV-2T | HBDV-2T |
| Test Range (cP) | 1*—6M | 100**—40M | 200**—80M | 800**—320M |
| Rotor | 1#,2#,3#,4# | R2, R3, R4, R5, R6, R7 | ||
| Rotation Rate (RPM/min) | 0.1—200 Continuously Variable Transmission | |||
| Control/Display Mode | 5-inch color touch screen | |||
| Demand Amount of Test Sample | 400—500mL (According to different rotators) | |||
| Display Information | Viscosity, rotor, rotation rate, torque%, measurement time, temperature, shear rate, shear stress | |||
| Test Accuracy | ±1% (Newtonian Fluid FS) | |||
| Reproducibility | ±0.3% | |||
| Test Data | Support the storage of 30-group data,Support USB flash disk to export test data | |||
| Viscosity Curve | Support real-time display and measurement of Visibility Curve | |||
| Overall Dimensions | 300×300×450(mm,L*W*H) | |||
| Net Weight | 4.5Kg | |||
| Power Supply | Input: AC100V to 230V, output: DCDC12V 2A | |||
| Power | 40W | |||
Viscosity unit conversion:1Pa.s=1000mPa.s, 1P=100mPa.s, 1mPa.s=1cP, M=1,000,000, FS=Full Scale
*If the measured viscosity is lower than 15cP, ULR ultra-low viscosity test accessories are required
**To measure the viscosity from the lower limit to this point, R1 rotor is required
