NDJ-5T/8T Touch Screen Digital Rotary Viscometer BonninTech

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: STM-2TNDJ-5T/8T
Minimum Order Quantity: 1 set
Price: USD500-2000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Measuring Range (MPa·sec): 40~40,000,000 Test Range(cP): 1*—2M, 1*—100K
Display: English Display Screen Power: 220V/110V

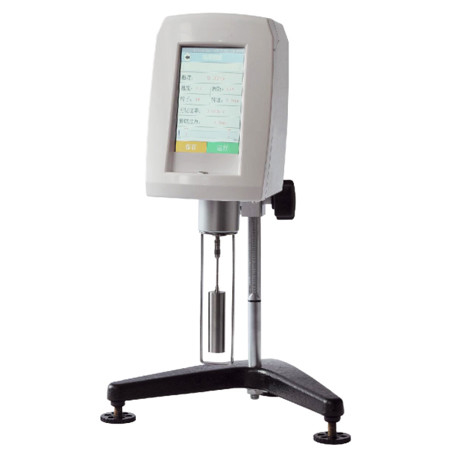

NDJ-5T/8T Touch Screen Rotary Viscometer is perfectly integrated with touch screen technology. It uses a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. It has powerful functions. The large 5-inch color touch screen can comprehensively and display various parameters and working conditions. It has many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable rotation rate and strong anti-interference performance.



Features:

  1. The 5-inch touch screen is used for operation, which is intuitive, simple and easy to use, and displays rich contents;
  2. It can automatically display the test range of the selected rotor speed. If it exceeds the test range, the machine will automatically alarm;
  3. Automatic conversion of dynamic viscosity and kinematic viscosity (the density value of the test sample needs to be known);
  4. With timing measurement function, it is simple and practical to detect the viscosity of non-Newtonian fluid;
  5. Support the storage of test data and test conditions, up to 30 groups of data can be stored;
  6. Display contents include: besides viscosity data, temperature, shear rate, shear stress, torque%, range overflow alarm, date and time, etc;
  7. The machine can choose a variety of accessories to meet different measurement needs of customers: PT100 temperature sensor, ULR ultra-low viscosity adapter, thermostatic bath, printer, DV software, visibility standard solution;



Technical parameters:

Type NDJ-8T NDJ-5T
Test Range(cP) 1*—2M 1*—100K
Rotation Rate (RPM/min) 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 6, 12, 30, 60
Test Accuracy ≤±1% (Newtonian fluid FS)
Reproducibility ± 0.3%
Control/Display Mode 5-inch color touch screen
Viscosity Value Resolution 0.01cP
Rotor 1#, 2#, 3#, 4#
Demand Amount of Test Sample 300—400mL (According to different rotators)
Display Information Dynamic viscosity, kinematic viscosity, measurement time, temperature, torque%, rotation rate, rotor, shear rate, shear stress
Test Data Support the storage of 30-group data
Viscosity Curve Support real-time display and measurement of Visibility Curve
Stop Mode Manual/automatic (timing measurement)
Overall Dimensions 300*300*450 mm (Length * Width * Height)
Net Weight 4.5kg
Power Supply input AC100V to 230V, output: DC DC12V 2A
Power 40W

Viscosity unit conversion:1Pa.s=1000mPa.s, 1P=100mPa.s, 1mPa.s=1cP, M=1,000,000, K=1,000, FS=Full Scale

*If the measured viscosity is lower than 15cP, ULR ultra-low viscosity test accessories are required
