STM-2T Stomer Viscometer for Ink Paint ASTM D0562

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: STM-2T
Minimum Order Quantity: 1 set
Price: USD500-2000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Measuring Range (MPa·sec): 40~40,000,000 Test Range: 40—141.0 KU, 32—1099.0 G, 27—5274.0 CP*
Display: English Display Screen Power: 220V/110V

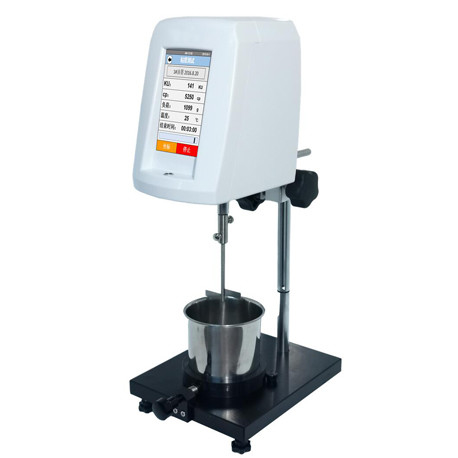

STM-2T Stomer Viscometer is a special machine for viscosity testing in paint, coating and ink industries.



Features:

  1. The 5-inch touch screen operation is intuitive, simple and easy to use, and the display content is rich;
  2. Conform to the industrial standards for coating testing ASTM D0562, GB9269;
  3. Automatic measurement without weights simplifies the test procedures;
  4. Real time display data: KU value, load g value, cP value, °C value, test completion value lock display;
  5. If the test range is exceeded, the machine will alarm automatically.
  6. Anti-static housing, metal lifting rod design, manual lifting frame structure, reduce the test level control requirements;
  7. Computer full range linear correction to ensure consistent accuracy;
  8. With timing measurement function, it is simple and practical to detect fluid viscosity;
  9. With test data output and print port;
  10. Optional accessories: PT100 temperature sensor, thermostatic bath, printer;



Technical parameters:

Type STM-2T
Test Range 40—141.0 KU



32—1099.0 g

27—5274.0 cP*

Rotation Rate 200RPM/min
Test Accuracy ≤±1% (Newtonian fluid FS)
Reproducibility ± 0.5%
Control/Display Mode 5-inch color touch screen
Rotor KU-1
Demand Amount of Test Sample 300mL
Display Information KU, g, cP Values, Measurement Time, Temperature, Torque%
Test Data Support the storage of 30-group data
Viscosity Curve Support real-time display and measurement of Visibility Curve
Stop Mode Manual/automatic (timing measurement)
Overall Dimensions 300*300*450 mm (Length * Width * Height)
Net Weight 5.5kg
Power Supply input AC100V to 230V, output: DC DC12V 2A
Power 40W

*The centipoise value(cP) is converted from KU value according to ASTM D562 industrial standard, so it is not equivalent to the cP measured by other types of rotary viscometers (such as LV/RV viscometers). The cP displayed on the Stomer Viscometer is for reference only and cannot be used for comparison with the measured value of other instruments.



Standard configuration:

Name Quantity Name Quantity
Host 1 Lifting Column 1
Rotor 1 Base 1
Power Adapter 1 Touch Pen 1
Inner Hexagon Spanner 1 Connecting Rod 1
Open-end Spanner 1 Instruction Manual 1
Sample Cup 1
