LB-3D Smart Disintegration Time Limit Tablet Testing Equipment 1L In Laboratory

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: LB-3D
Minimum Order Quantity: 1 set
Price: USD2500-35000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Name: Nablet Disintegration Tester Functions: Disintegration Time Limit
Flat Bottom Beaker Volume: 1000ml Flat Bottom Beaker Quantity: 3 Pieces
Temperature Range: Room Temperature~ 45.0℃
High Light:

LB-3D Tablet Testing Equipment


1L tablet disintegration test machine


Smart tablet disintegration tester

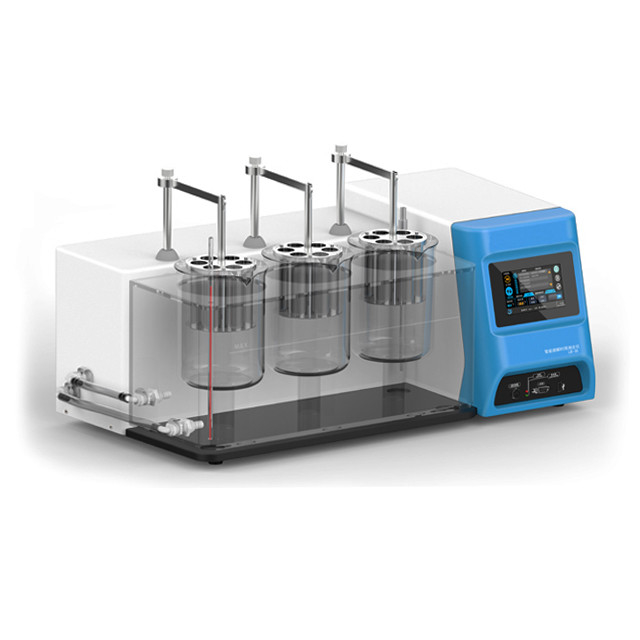

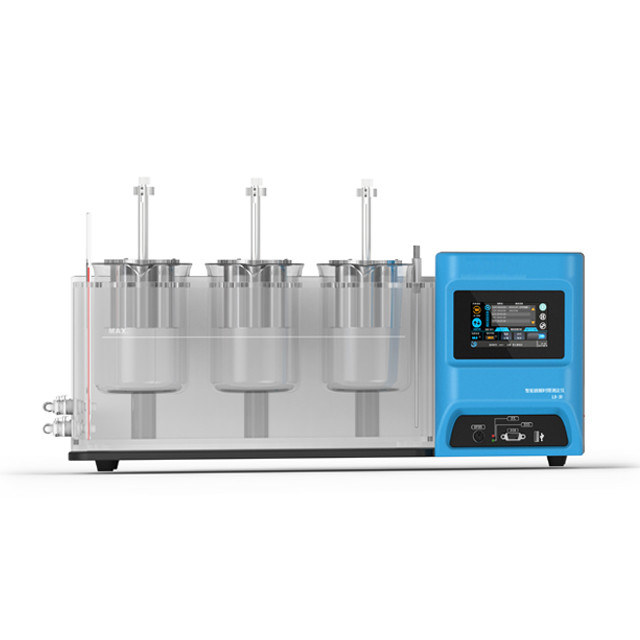

Laboratory Drug Testing Instrument Disintegration Time Limit Analyzer, LB-3D Smart Digital Tablet Disintegration Tester


LB series Tablet disintegration time limit analyzers have been used in the field of drug analysis for more than 40 years, strictly following the current Pharmacopoeia specifications. LB-3D Digital tablet disintegration tester is a special test instrument for controlling the quality of solid preparation drugs. The instrument is suitable for testing time limit of disintegration solid preparations such as tablets, sugar-coated tablets, film-coated tablets, enteric coated tablets, extract tablets and capsules. It is a kind of drug disintegration measuring instrument with advanced level.



1. Built-in user right management, audit trail, data management system.

2. Higher precision integrated circuit design ensures measurement accuracy.

3. High-definition touch screen with simple interface and minimal operation mode.

4. The three sets of baskets move synchronously.

5. Product information management, no need to repeat settings frequently.

6. High-precision real-time constant temperature control, fast temperature rise, over temperature protection and temperature calibration.

7. With fault prompt function; detection data can be exported and printed by USB.



Basket lifting frequency 25~35 times/min
Basket lifting amplitude 55mm±1mm
Minimum distance from the screen to the bottom of the cup 25mm±1mm
Screen bore diameter 2mm (There is an optional)
Temperature range Room temperature~ 45.0℃
Temperature resolution 0.1℃
Temperature control accuracy ≤±0.3℃
Timing range ≤ 999 hours 59 minutes 59 seconds
Flat bottom beaker volume 1000ml
Flat bottom beaker quantity 3pieces
Power AC220V±10%, 50Hz

LB-3D Smart Disintegration Time Limit Tablet Testing Equipment 1L In Laboratory 0LB-3D Smart Disintegration Time Limit Tablet Testing Equipment 1L In Laboratory 1

LB-3D Smart Disintegration Time Limit Tablet Testing Equipment 1L In Laboratory 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
