JS-2 Jelly Strength Tester Gelatin Gel Strength Test System High Precision

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: JS-2
Minimum Order Quantity: 1 set
Price: USD3000-6000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Test Range: (5~1000)g Test Accuracy Max: *(±0.05% )
High Light:

Gelatin gel strength tester


JS-2 Jelly Strength Tester


Gel Strength Test System high precision

JS-2 Jelly Strength Tester Gelatin Gel Strength Test System



JS-2 Gelatin Gel Strength Test System

This system is provided for detecting the jelly strength of gelatin in a specified environment. The freezing strength of gelatin, which reflects the level of gelatin production technology.

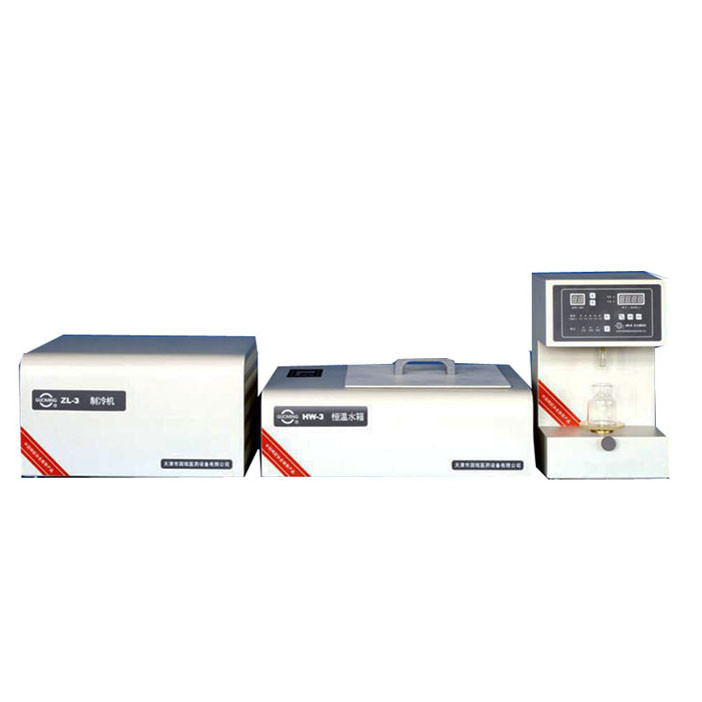

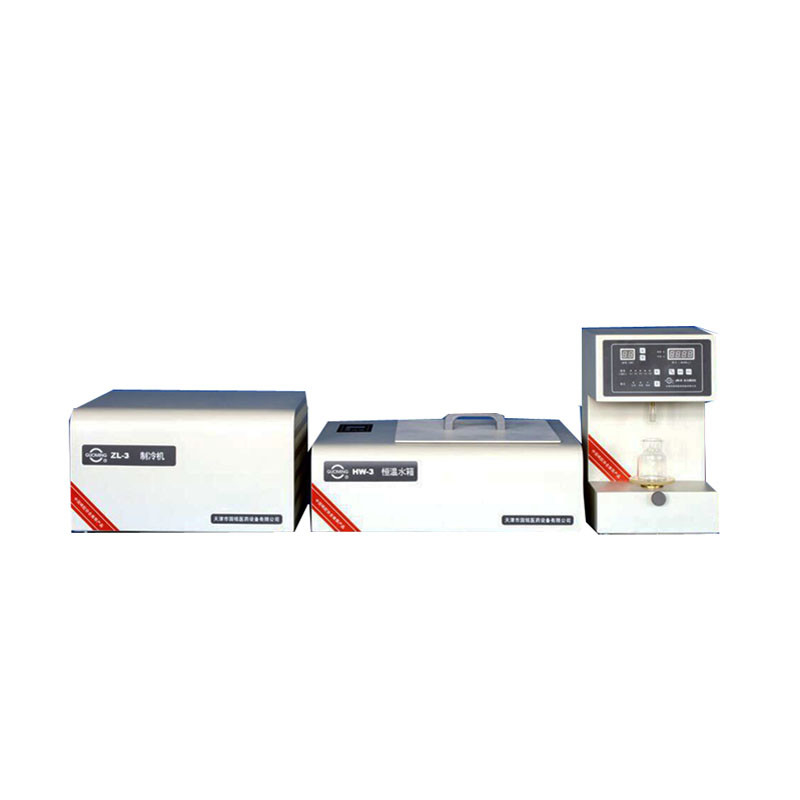

It Consists of:
JS-2 Jelly strength tester
HW-2 Constant temperature bath
ZL-2 Refrigerator


Applicable standard
National standard (Food additive Gelatin) GB6783-94
American codex/No.22/VSPXX
Vocation standard (Gelatin for medicine) QB2354-98
Vocation standard (Industrial gelatin) QB/T1995-94
Vocation standard (Bone gelatin) QB/T1996-94
Vocation standard (Photographic gelatin) QB/t1997-94
Corporate standard(Thickness tester) Q/12XQ0190-2010


A MPU is used to control all operations in Jelly strength system. It works in Bloom mode and the Bloom gram is displayed by LED. The probe is of
British standard.
Using high-precision pressure sensor, auto-correcting nonlinear errors, high accuracy.
Any sampling depth can be preset, with five sampling speeds, three sampling mode, and two sampling results.
Using precise mechanical transmission gear with shock absorber, operating placidly, displaying stably.
Precisely constant temperature bath system is composed of invariable temperature water tank and refrigerate.
Using magnetism pump system to circulate water for equable heating, bath temperature getting even.
Using high-precision temperature sensor, with little linear error and high accuracy in testing temperature.
Using auto frequency-conversion control technology, controlling temperature intellectually high accurately.
A new type of high-reliability and great-power compressor applied in a refrigerator, with high speed and low noise in refrigeration.
The presetting temperature at will, displaying preset and real-time data alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.


Test range: (5~1000)g
Test accuracy Max: *(±0.05% )
Travel: (1~60)mm
Travel accuracy: ±0.1mm
Temperature control range: (5~39.9)℃
Temperature control accuracy : ±0.1℃
Cooling time: 40min
Volume accuracy: ±0.5mL
Power: 220V/50Hz/1200W
Dimension: JS-2 (260×260×420)mm3
HW-2 (530×450×280)mm3
ZL-2 (400×350×280)mm3

JS-2 Jelly Strength Tester Gelatin Gel Strength Test System High Precision 0JS-2 Jelly Strength Tester Gelatin Gel Strength Test System High Precision 1

JS-2 Jelly Strength Tester Gelatin Gel Strength Test System High Precision 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
