YPD-350N Digital Automatic Tablet Hardness Tester Machine USB Port

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: YPD-350N
Minimum Order Quantity: 1 set
Price: USD3000-4000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Hardness Range: 10~350N Tablet Diameter: 2~25mm
Hardness Unit: N/kg (optional) Functions: User Management, Audit Tracking And USB Output
High Light:

YPD-350N automatic tablet hardness tester


tablet hardness tester machine 350N


digital tablet hardness tester USB

Laboratory Automatic Tablet Hardness Testing Machine, YPD-350N Smart Digital Tablet Hardness Tester


YPD-350N Smart automatic tablet hardness tester is a special tablet hardness instrument for measuring the hardness and diameter of tablets. It adopts the international advanced design concept and manufacturing technology, has the advantages of smooth and beautiful appearance, compact and stable structure, highly reliable performance, simple operation and so on.
The product is widely used in pharmaceutical factories, pharmaceutical research, teaching and drug testing departments.

Built-in user management, data management system, detection data long - term storage.
Higher precision integrated circuit design, automatic statistics and analysis of measurement values.
Higher precision load sensor, ensure the measurement accuracy.
It is required to complete the experiment in a shorter time, and it is more efficient (the fastest is 10 seconds/sample).
Smaller size, higher precision, more perfect, simple, user-friendly interface and mode of operation.
Stable operation, low energy consumption and high reliability.
Weak current working voltage, more safe.
Continuous test 1000 times, continuous test interval user adjustable.
The hd transparent lens window above the detection warehouse can clearly and intuitively observe each test process.
With the function of fault self-diagnosis, detection data can be exported and printed by USB.
New with user management, audit tracking, touch screen and other functions.


Technical parameters:

Product model YPD-350N
Measuring range hardness 10~350N, tablet diameter 2~25mm
Resolution 0.01 N
Accuracy + / - 1.5% plus or minus 1 digit
Diameter measuring range 2.0-25.0mm
Diameter resolution 0.1mm
Diameter measurement accuracy ±0.1mm
Hardness unit N/kg (optional)
Automatic single time/continuous multiple times (maximum 1000 times)
Power supply AC220V, 50Hz

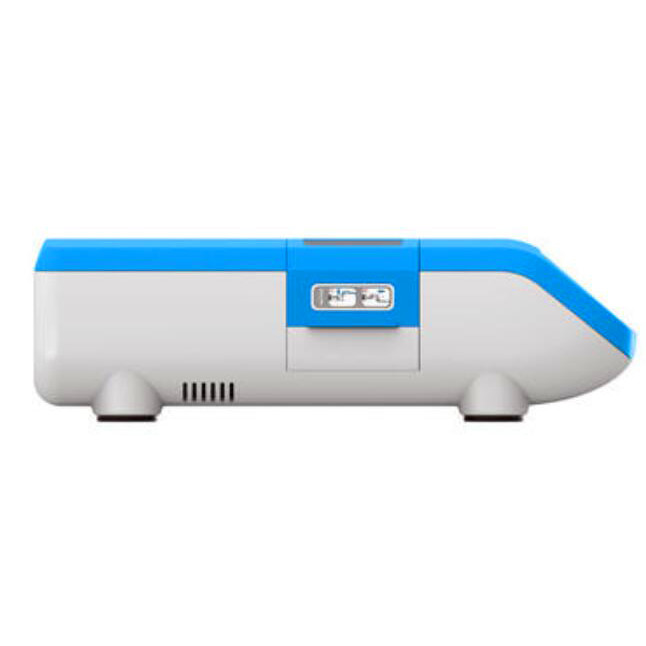

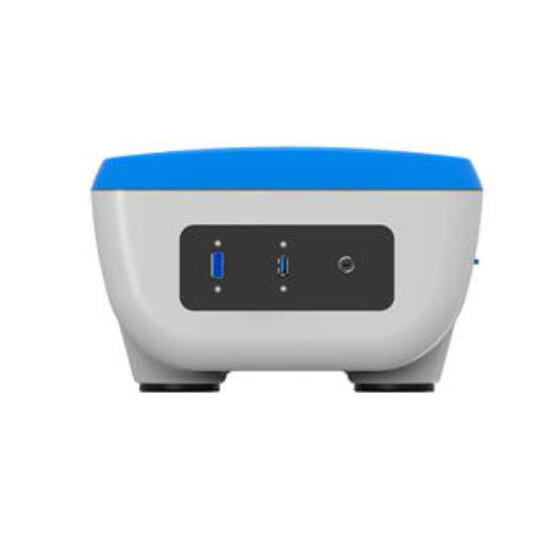

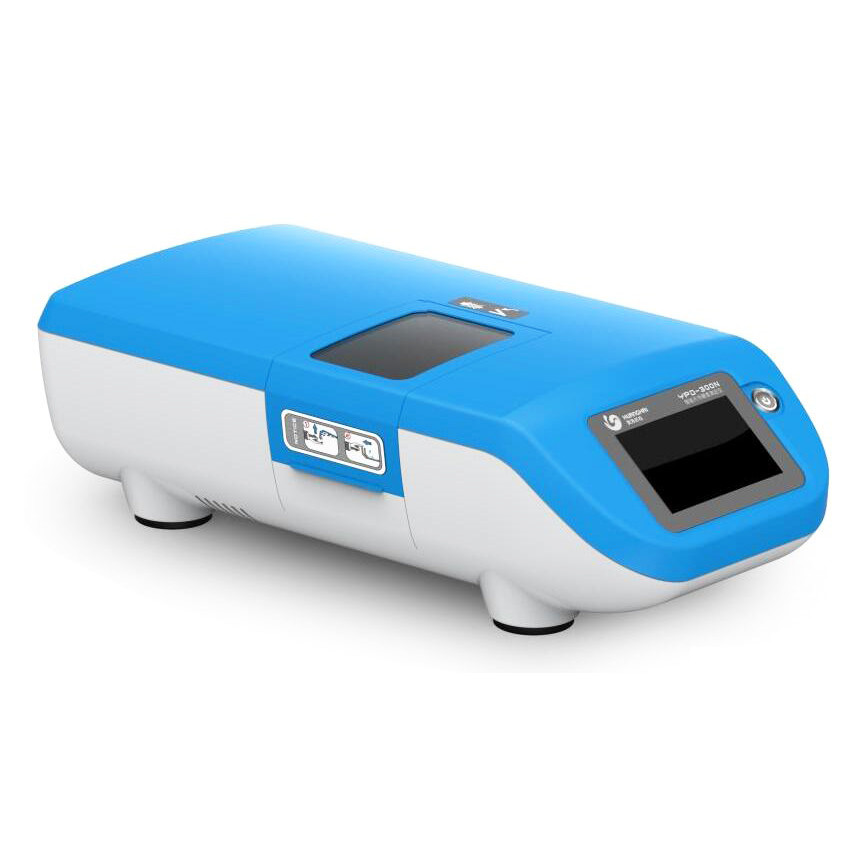

YPD-350N Digital Automatic Tablet Hardness Tester Machine USB Port 0YPD-350N Digital Automatic Tablet Hardness Tester Machine USB Port 1

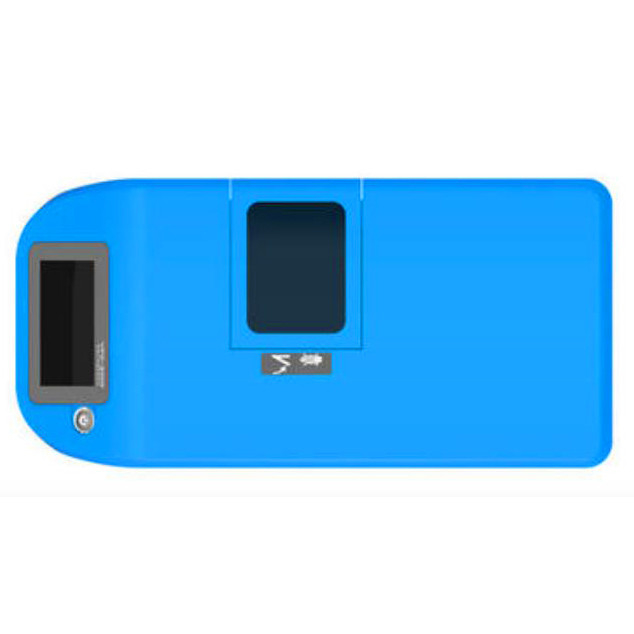

YPD-350N Digital Automatic Tablet Hardness Tester Machine USB Port 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
