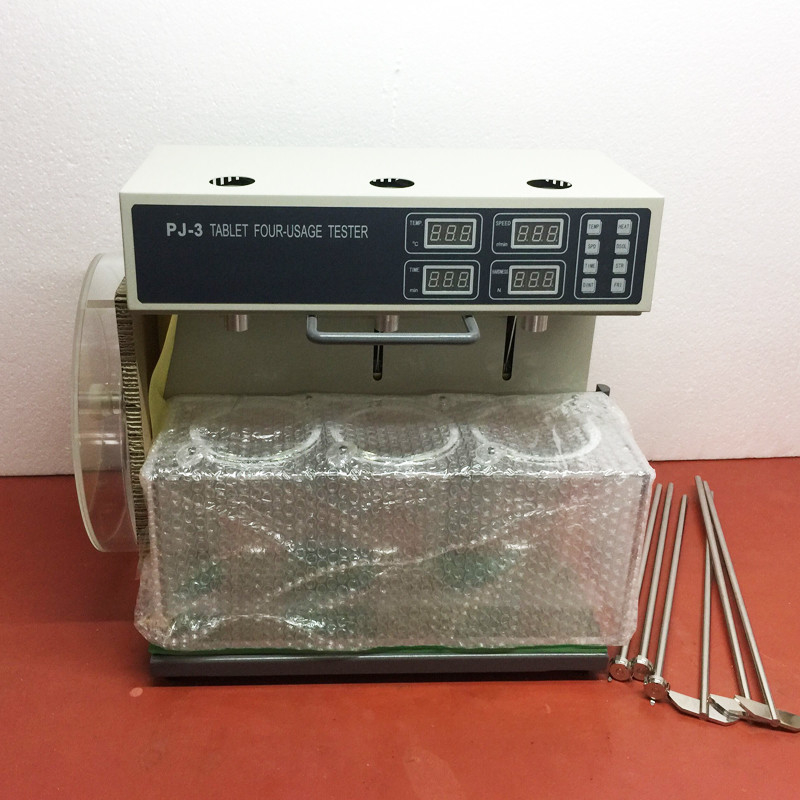

Bonnin PJ-3 Multifunction Tablet Testing Equipment Four Usage Auto Memorize

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: PJ-3
Minimum Order Quantity: 1 set
Price: USD800-4000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Functions: Dissolution, Disintegration, Friability And Hardness Stations Of Dissolution: 3
High Light:

PJ-3 Tablet Testing Equipment


AC110V Tablet Testing Equipment


Bonnin Tablet Four Usage Tester


PJ-3 Digital Tablet Four Functions Tester, Tablet Four-Usage Tester


It has four functions: detecting pharmic dissolution, disintegration, friability/abrasion and hardness of tablet.


Applicable standards

●National standard (Chinese codex) /2015

●Industry Standard (Dissolution tester)

●Industry Standard (Disintegration tester)

●Industry Standard (Tablet friability tester)

●Corporate standard (Tablet hardness tester)



●Intellectualized,auto-control, auto-test, auto-diagnose, auto-alarm.

●The circular water current pumped by magnetism pump can heat the system equally, and the bath liquid can achieve an even temperature.

●Temperature is high accurately auto-controlled.

●Auto stop at timing point.

●Parameters can be preset at any time, the preset and real data are displayed alternately in time.

●It has three vessels and three poles arranged on one line. The head part of the instrument can be  artificially turned over smoothly and flexibly.

●Two disintegrations run synchronously. Auto stop at timing point.

●High accuracy is achieved in testing rotary speed and counting friability.

●The hardness has high accuracy press sensor and hardness data is displayed in Newton.

●It tests tablet hardness continuously. The tablet is loaded and pressed artificially.

●Auto-display, auto-memorize, auto-reset, auto-retest.



●Stations of dissolution 3

●Cylinder number 1

●Temperature range (20~45) ℃ ± 0.3 ℃

●Drum’s size radius:Φ286mm depth: 39mm

●Speed range (20~200 )rpm ± 2 rpm

●Tablet fall height 156 mm

●Automatic time range (1~900) min ± 0.5 min

●Rotation speed 25 rpm ± 1 rpm

●Paddle radial run-out ± 0.5 mm

●Rotation count 100 r ± 1 r

●Basket radial run-out ± 1.0 mm

●Hardness range (2~200) N

●basket assemblies 2

●Probe procession range (3~20) mm

●Nacelle back and forth frequency (30~32) / min

●Dimension (59×30×48) cm

●Nacelle back and forth range (55±2) mm

●Power 220V/50Hz/600W or 110V/60Hz/600W

Bonnin PJ-3 Multifunction Tablet Testing Equipment Four Usage Auto Memorize 0Bonnin PJ-3 Multifunction Tablet Testing Equipment Four Usage Auto Memorize 1

Bonnin PJ-3 Multifunction Tablet Testing Equipment Four Usage Auto Memorize 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
