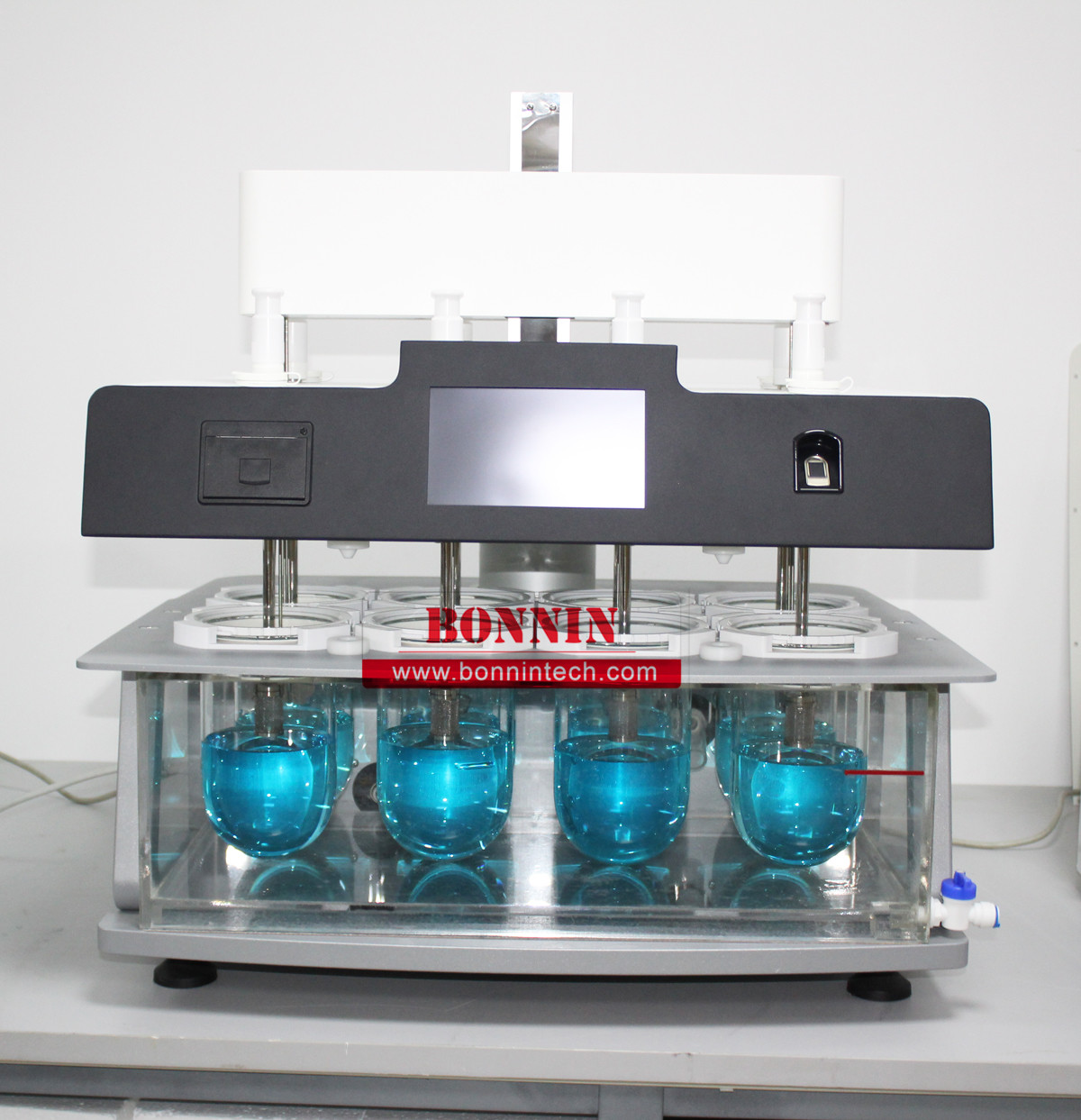

RC-8MD RC-8HD Drug Laboratory Smart Tablet Dissolution Testers

RC-8/12HD automatic dissolution tester is a high-performance 12 cup 12 bar dissolution test device designed and manufactured strictly in accordance with the provisions of Chinese Pharmacopoeia and American Pharmacopoeia. It has high intelligence, advanced structure, accurate control and good reliability. PC cup board and water bath box integrated design, beautiful appearance, easy to observe the test process from multiple angles. High temperature resistance, corrosion resistance, extended service life.

Performance and technical parameters:

 Number of devices: 12 cups 12 rods. (Can be added isothermal rehydration cup).

 Speed partition: (6+6) 2 working areas, 2 batches of dissolution test can be completed at the same time.

 Dosing method: synchronous dosing, sequential dosing two ways.

 The intelligent sampling frame can automatically rise and fall according to the volume of the solvent, and has the functions of real-time temperature monitoring in the cup. The temperature inside each cup can be tested individually.

 Applicable method: The first method (basket method), the second method (paddle method), the third method (small cup method), the fourth method (paddle dish method), the fifth method (rotating cylinder method) in Chinese Pharmacopoeia.

 Mixing paddle and rotating basket specifications comply with pharmacopoeia regulations.

 Stirring paddle swing range: ≤0.3mm

 Mixing speed: 25RPM-250RPM. (Mixing speed can be optional up to 300RPM)

 Mixing direction: clockwise, counterclockwise.

 Stirring speed resolution: 0.01RPM.

 Speed error: ≤0.5%.

 Swing range of rotating basket: ≤0.5mm

 Deviation between rotating rod and dissolving cup shaft: ≤0.5mm

 Water bath temperature: room temperature -45.00℃. (Optional heating temperature up to 55℃)

 Temperature resolution: 0.01℃.

 Water bath temperature control accuracy: 0.2℃.

 Temperature control accuracy of dissolving medium: 0.2℃.

 Dosing mode: synchronous dosing.

 Lifting system: bamboo square column lifting automatic.

 Rights management: three levels, seven users.

 Audit trail: 128 items x 366 days.

 Operating noise: < 60db

 Environmental conditions: Ambient temperature 5-37 ° C, relative humidity ≤80%

 Safety performance: in line with national industry standards, with self-test and automatic protection functions

 Power supply: 220V, 50Hz

RCZ-8N intelligent digital drug dissolution apparatus strictly follows the current "Chinese Pharmacopoeia" and "US Pharmacopoeia" and "Guidelines for Mechanical Validation of Drug Dissolution Apparatus", 8-channel high-performance drug dissolution test device, and fully complies with data integrity specification.

RCZ-8N intelligent medicine dissolution tester adopts international advanced design concepts and manufacturing technologies. It has a smooth and beautiful appearance, a compact and stable structure, and upholds the characteristics of high reliability and simple operation. At the same time, it has the characteristics of "accurate speed", "stable operation", and "low energy consumption". This product is widely used in pharmaceutical factories, pharmaceutical research, teaching and research and drug inspection departments.

Characteristics:

1. Built in user right management, audit trail, and data management system.

2. Higher precision integrated circuit design to ensure measurement accuracy.

3. High-definition touch screen with simple interface and minimal operation mode.

4. Synchronous administration function and more convenient waterway system.

5. 8 basket or paddle rods can be installed (optional Teflon coating), and 8 piece of 185mm high-precision dissolution cups can be placed.

6. High-precision real-time constant temperature control, fast temperature rise, small temperature drift, over temperature protection and temperature calibration functions.

7. More accurate speed, stable operation, low energy consumption and high reliability.

8. With fault self-diagnosis function; test data can be exported and printed by USB.

9. Optional small cup method accessory (for the third method of dissolution determination).

Specifications:

FAQ 1. Are you a factory or trading company?

We are a factory.

FAQ 2. Can you supply OEM?

OEM is available.

FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.

FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
