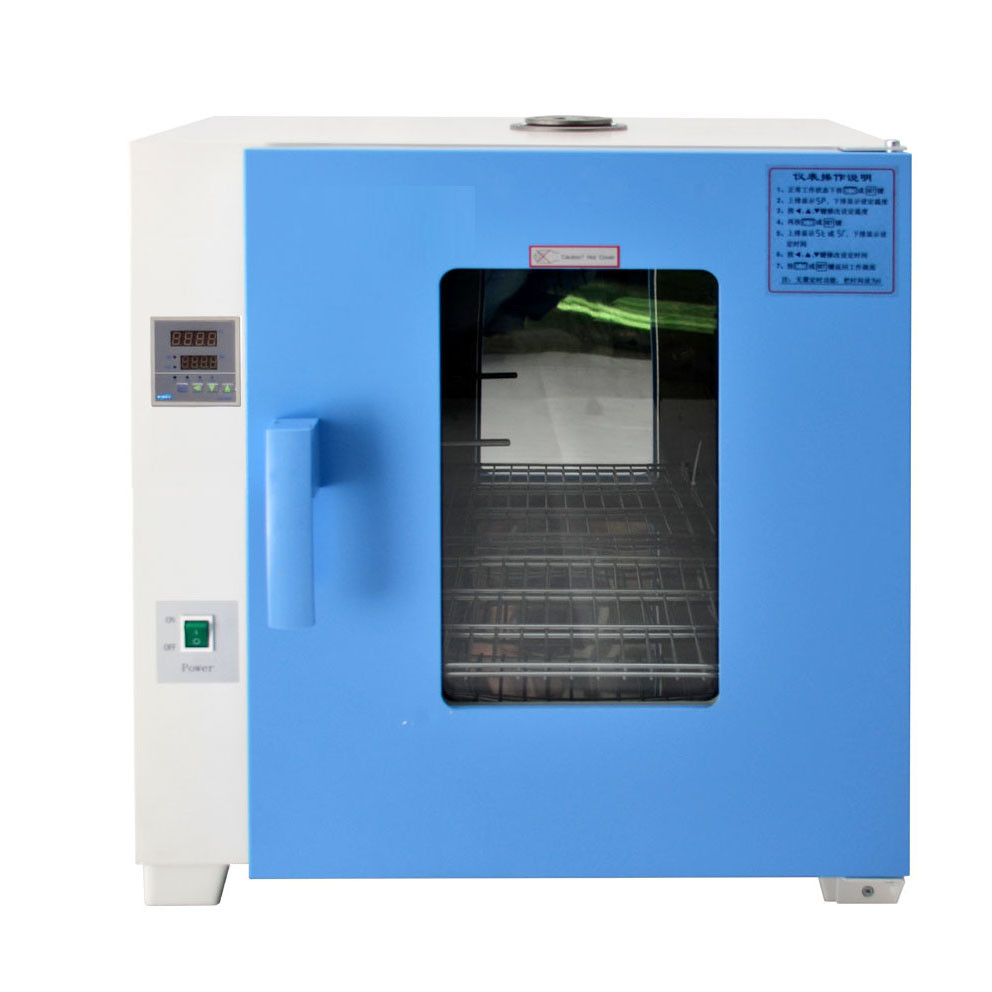

PID Dry Heat Sterilizer Laboratory Incubator SS SUS304 Hot Air Drying Oven

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: HGZF-II Series
Minimum Order Quantity: 1 set
Price: USD1000-5000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Capacity: 42L~960L Temperature Range: 50℃-300℃
Display Resolution: 0.1℃ Display: LED Display
High Light:

Laboratory Incubator SS304


SUS304 hot air drying oven


PID dry heat sterilizer

Laboratory Hot Air Lab Drying Oven Industrial Hot Air Sterilization Box Dry Heat Sterilizer


Scope of Application:

This Hot Air Lab Drying Oven Hot Air Sterilization Box Dry Heat Sterilizer is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc.


Structure Characteristics:

Outer Shell Material: Cold-rolled steel sheet surface spray

Inner Material: SUS304 Stainless steel

Microprocessor PID temperature control, accurate and reliable

Timing range: 0-9999min

Parameters auto saving system and automatic start after power interruption

Inner round cornered design, convenient to clean

Shelves adjusted easily and flexiblely

HGZF-101: Overhead air outlet Easy to switch, Glass inner door and no outer observation window

HGZF-101: Bottom resistance wire heating with Temperature switch to choose suitable heating power

HGZF-101: Natural convection when fan is shut

HGZF-II HGZF-II/H: Inlet and outlet at back side, Outer observation window and no glass inner door

HGZF-II HGZF-II/H: Stainless steel tube heater

Optional device:

RS485 communication serial port

Micro pinhole printer

RS485 to USB Transfer interface


Technical data:

Model HGZF-101-0 HGZF-101-1 HGZF-101-2 HGZF-101-3 HGZF-101-4 HGZF-101-5
Temperature Range 50℃-300℃
Temperature Fluctuation ±1℃
Temperature Uniformity ≤Max working temperature ±2.5%
Inner Cyclic Mode Forced convection with Bottom heating
Alarm Type Over temperature alarm and Temperature probe damage alarm

Work Room Dimension

WxDxH (cm)

35*35*35 45*35*45 55*45*55 60*50*75 80*80*100 100*80*120
Capacity(L) 42 70 136 225 640 960

Outline Dimension

WxDxH (cm)

67*53*63 77*53*75 87*63*85 92*68*105 112*98*130 132*98*150
Shelves 2 2 3 3 3 3
Rated Power (W) 1600 2400 3000 4000 6000 7500
Power 1Φ 220V 50Hz 3Φ 380V 50Hz

PID Dry Heat Sterilizer Laboratory Incubator SS SUS304 Hot Air Drying Oven 0PID Dry Heat Sterilizer Laboratory Incubator SS SUS304 Hot Air Drying Oven 1

PID Dry Heat Sterilizer Laboratory Incubator SS SUS304 Hot Air Drying Oven 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
