| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | HYQX-I， HYQX-II |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-5000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Incubator Name: | Anaerobic Incubator | Temperature: | +3℃-60℃ |
|---|---|---|---|
| Anaerobic Level: | Oxygen Content In Opearating Room Less Than 1% | Display: | English Operation Panel, LCD Display |
| High Light: | Microbes anaerobic workstation,HYQX-I Laboratory Anaerobic Incubator,anaerobic incubator LCD display |
||

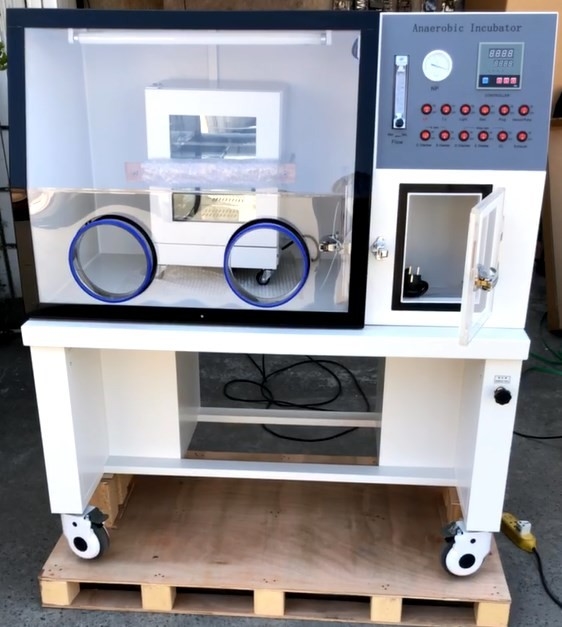

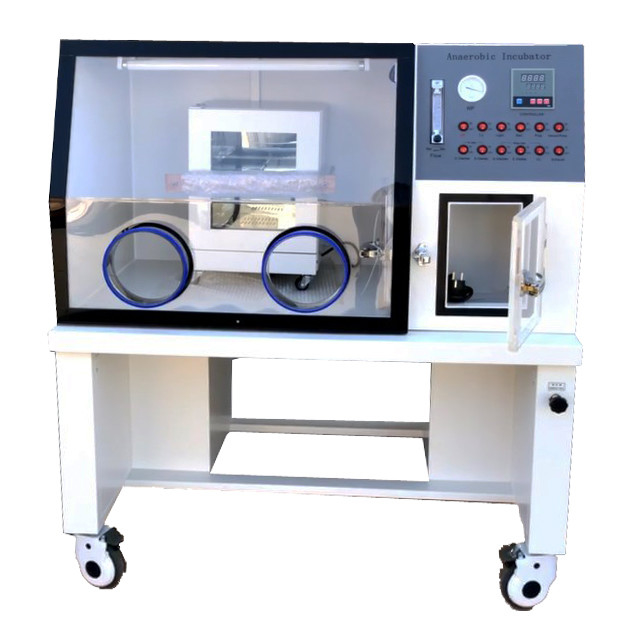

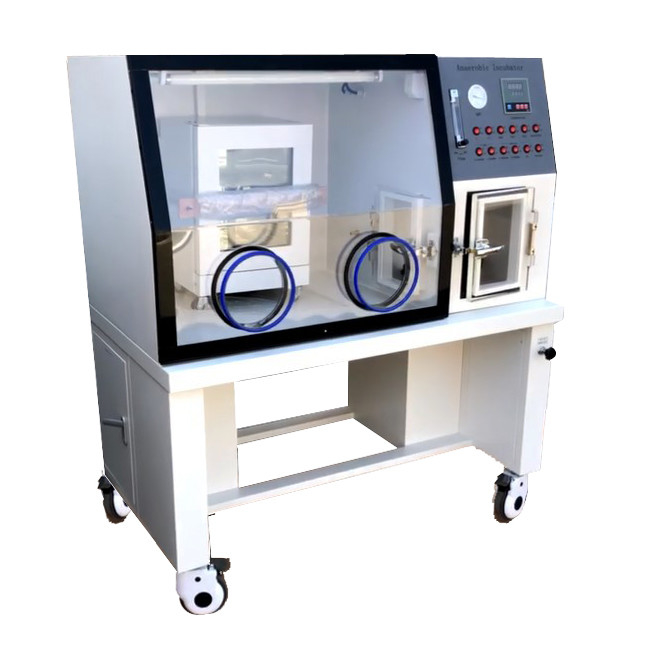

HYQX-I Laboratory Anaerobic Incubator with Microbes Anaerobic Workstation
Application:
This HYQX Series Laboratory Anaerobic Incubator is used to cultivate and handle anaerobic microbes in non-oxygen environment. It provides strict anaerobic condition, constant temperature condition and a systematic and scientific working area. The anaerobic organismwhich is the most difficult to cultivated can be cultivated in this instrument and can avoid the death of organism caused by being exposed to the atmosphere during operation.
This can be applied for medical institution in inspection and research of pathogenic anaerobic bacterium, microbiological examination brewing of food hygiene, and other hypoxia, microaerobic, or oxygen-free environment.
Characteristics:
·This product is consisted of thermostatic incubator, anaerobic operating room, sampling room, air and electricity control system, cabinet frames, bottle holders and wax-melting sterilizer
·Strict anaerobic, micro-anaerobic and low anaerobic can be realized by using air in different composition
·Microprocessor PID temperature control, accurate and reliable for work room temoerature
·Inner UV germicidal lamp
·Inner Material: SUS304 Stainless steel
·Impact resistant special transparent glass plates used in anaerobic operating room and sampling room

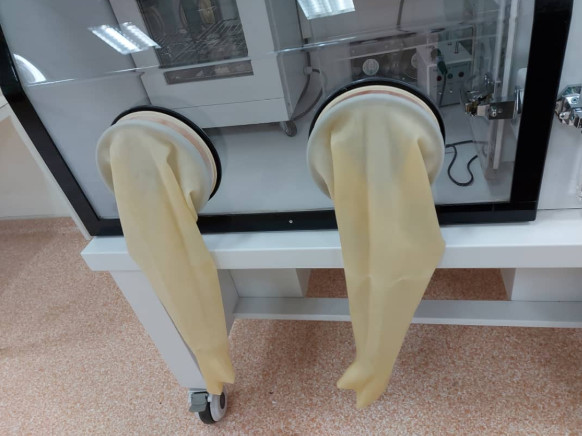

Special gloves shall be used to operate
·Special inoculation stick sterilizer, wax-melting disinfection device and oxygen removal catalyst in the anaerobic operating room
·HYQXIII-Z: Cubigel refrigeration compressor, effective and energy saving; Freon-free environment friendly refrigerator
·Optional device:
Independent external temperature protection device
RS485 communication serial port for HYQX-II and HYQX-III
Micro pinhole printer or micro thermal printer for HYQX-II and HYQX-III
Model Specification:
|
Model |
HYQX-I |
HYQX-II |
HYQX-III |
HYQX-III-Z |
|
Work Room Temperature Range |
Room Temperature +3℃-60℃ |
10℃-60℃ |
||
|
Temperature Uniformity |
≤±1℃ |
|||
|
Temperature Fluctuation |
≤±0.3℃ |
|||
|
Anaerobic Level |
Oxygen Content in Opearating Room: ≤1% |
Oxygen Content in Opearating Room: ≤0.5% |
||
|
Forming Time for Anaerobic in Sampling Room |
≤5min |
≤15min |
||
|
Forming Mode for Anaerobic( micro-anaerobic) in Sampling Room |
Vacuum and Gas Replacing 99.99% N2 Vacuum and Mixed Gas ( 5%H2 10%CO2 85%N2) |
|||
|
Forming Operation for Anaerobic in Sampling Room |
Manual Button |
One-button Automatic |
||
|
Forming Time for Anaerobic in Operating Room |
≤1H |
≤2H |
||
|
Forming Mode for Aaerobic( micro-anaerobic) in Operating Room |
Vacuum and Gas Replacing 99.99% N2 Vacuum and Mixed Gas ( 5%H2 10%CO2 85%N2) |
|||
|
Lasting Time for Anaerobic in Operating Room |
>12H (Under the circumstance when the supply for small amout of mixed gas has been stopped) |
|||
|
Forming Operation for Anaerobic in Operating Room |
Manual Button |
One-button Automatic |
||
|
Work Room Dimension WxDxH (cm) |
25*19*29 |
42*30*50 |
Operating Room is the Work Room |
|
|
Capacity(L) |
13 |
63 |
355 Operating Room is the Work Room |
|
|
Sampling Room Dimension WxDxH (cm) |
33*23*32 |
40*33*32 |
||
|
Opearting Room Dimension WxDxH (cm) |
81*65*66 |
95*75*68 |
91*65*60 |
|
|
Outline Dimension WxDxH (cm) |
126*73*138 |
140*73*137 |
||
|
Temperature Controller |
LED display and P.I.D. temperature controller |
LCD display and P.I.D. temperature controller |
||
|
Shelves |
2 |
2 |
2 |
2 |
|
Rated Power (W) |
600 |
600 |
730 |
1000 |
|
Power |
1Φ 220V 50Hz |
|||
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
