| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | LHH Series |
| Minimum Order Quantity: | 1 set |
| Price: | USD3000-12000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Capacity: | 120L~1000L | Temperature Range: | 15~65 ℃ |
|---|---|---|---|
| Humidity Range: | 20~95％R.H | Refrigeration Compressor Units: | 1 Backup Unit |
| High Light: | 1000L drug stability test chamber,120L stability chamber temperature and humidity,pharmaceutical stability chamber GB/ T10586 |
||

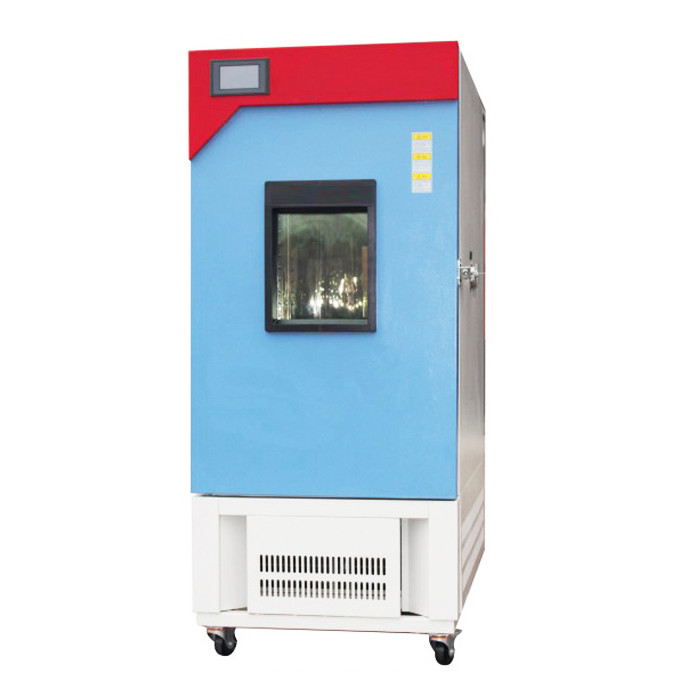

Pharmaceutical Drug Stability Temperature Humidity Chamber Stability Chambers
LHH Series Touch Screen Drug Stability Test Chamber is used for companies to test drugs and calibration and stability tests for new drugs. Pharmaceutical stability chambers to meet the accelerated test, the test of long-term and high-humidity test, international organizations to identify new ICH stability testing conditions are also among the above range. Users can also press the unit Drug stability test chamber to arrange work requirements.
The operating power is measured at 40℃ and 75%R.H with one refrigeration compressor running.
High humidity test: temperature of 25 ℃ ± 2 ℃, humidity 90% R.H ± 5%, or 75% ± 5%.
Acceleration test: is 40 ℃ ± 2 ℃, 75% ± 5% or 30 ℃ ± 2 ℃, 65% ± 5% .; packaged in pharmaceutical formulations for semi-permeable containers, such as plastic bags solution, plastic bottle drops liquid, nasal drops should be 40 ℃ ± 2 ℃, 20% ± 5% or 25 ℃ ± 2 ℃, 20% ± 5%.
Long-term test: is 25 ℃ ± 2 ℃, 60% ± 10%; in pharmaceutical formulations for packaging semi-permeable containers, such as plastic bags solution, plastic bottles of eye drops, nasal drops should be 25 ℃ ± 2 ℃, 40% ± 10%.
Additional tests in moderate conditions: 30℃±2℃, 40%±5%.
High temperature test: is 40 ℃, 60 ℃
Features:
1) Studio mirror stainless steel liner, shell electrostatic spray coating process, the whole nice shape.
2) The surface of the working chamber concealed screws, no rust inside to ensure no leakage phenomenon.
3) Is provided with a large rectangular observation windows and lights, easy to observe the test.
4) Fishtail belt buckle pull handle, easy and convenient door open, but also effectively prevent the collision switch box door drawbacks.
5) The use of imported high-precision color touch screen controller, powerful, high control accuracy. Set the alarm in one load starts, indicating Intuitive, easy to operate.
6) Humidity sensor, high accuracy, small amount of drift, can fully guarantee the high reliability requirements of humidity.
7)Import humidity sensor, high accuracy, small amount of drift, can fully guarantee the high reliability requirements of humidity.
8) Independent over-temperature protection system, safe and reliable.
9) Recording with real-time printing, exporting U disk data, temperature and humidity deviation alarm messages, the cumulative running time and other functions
10) Equipment can be a long low power operation, energy saving and environmental protection, the main technical indicators are better than the technical requirements of GMP requirements.
Technical specification:
| Product number | LHH-120SDP | LHH-225SDP | LHH-400SDP | LHH-500SDP | LHH-800SDP |
| Studio size | 500x450x600 | 500x500x900 | 660x550x1100 | 750x600x1100 | 900x620x1350 |
| Dimensions | 980x630x1320 | 980x680x1600 | 1100x730x1700 | 1200x780x1700 | 1450x780x1960 |
| Install the power | 1.0Kw | 1.2 Kw | 1.5 Kw | 1.5 Kw | 1.5 Kw |
| Number of shelves | 2 | 4 | 4 | 4 | 4 |
| Door size | 750mm | 800mm | 750mm | ||
| Temperature range | +10–65℃ | ||||
| Humidity range | 20-95%R.H | ||||
| Temperature fluctuation | <±0.5℃ | ||||
| Temperature uniformity | <2.0℃ | ||||
| Temperature deviation | <±1.0℃ | ||||
| Humidity deviation | <±3.0%R.H | ||||
| Temperature and humidity controller | Adopt imported color touch screen temperature and humidity controller, PLC control, stable and reliable control, intuitive display, easy operation, setting data can be locked to prevent arbitrary changes in parameters. Controller set control unit start, the cumulative time, Beijing time display, warning function is equal to one, and real-time print test data, but also store data, U disk export and so on. | ||||
| Sensor | Industrial temperature sensor Pt100 platinum resistance, humidity sensor imported French capacitive humidity sensor | ||||
| Data record | Standard micro-printer, real-time print records, recording options curve records or data records, printing interval adjustable | ||||
| Heating system | Nickel-chromium alloy electric heater | ||||
| Humidification system | Special electric steam generator | ||||
| Cooling System | Two fully enclosed refrigeration units, a reasonable system to ensure long-term continuous trouble-free operation (one of the spare) | ||||
| Dehumidification system | Using a dehumidifier, dehumidifier can be adjusted | ||||
| The door sealed | Silicone rubber seal, good sealing performance, and effectively cut off the thermal conductivity of the wall and the box | ||||
| Door handle | The use of buckle-type locking device with a door handle (fishtail type), the switch door convenient, but also can effectively prevent any switch | ||||
| Waterway system | Hidden tank, the controller automatically prompts when the water tank is dry. Long-term flow of water within the system, effectively avoid the drawbacks of bacteria. | ||||
| Wireless alarm | Temperature and humidity deviation alarm function, can be connected to multiple devices, and use the TPP function simultaneously notify multiple cell phone numbers | ||||
| safety protection | Power leakage, short circuit protection, over-temperature equipment, water, water, refrigerator overload and other protection | ||||
| Standard configuration | ø50 test hole, 8W lighting, vacuum glass observation window, micro printer, U disk, wireless wifi alarm, casters, etc. | ||||
| Optional | Recorder, network interface and so on | ||||
| Product Standards | Products to meet the ICH2003 Q1A (R2), CP2010 implementation of the standards GB / T10586-2006: Damp heat chamber technical conditions | ||||
| Power supply | 220V ± 10%, 50Hz, | ||||
| Liner material | SUS304 mirror stainless steel plate | ||||
| Shell material | Adopt imported color touch screen temperature and humidity controller, PLC control, stable and reliable control, intuitive display, easy operation, setting data can be locked to prevent arbitrary changes in parameters. Controller set control unit start, the cumulative time, time display, warning function is equal to one, and real-time print test data, but also store data, U disk export and so on. | ||||
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
