CE Bonnin Medicine Tablet Testing Equipment Hardness Friability Disintegration Dissolution

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: SY-6DN
Minimum Order Quantity: 1 set
Price: USD800-4000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Functions: Dissolution, Disintegration, Friability And Hardness Dissolution: Number Of Baskets 6
Disintegration Time Limit: Room Temperature ~ 45.0 ° C Friability: Number Of Drums 1
High Light:

CE Tablet Testing Equipment

,

Bonnin tablet hardness tester machine

,

Medicine Testing Equipment Friability

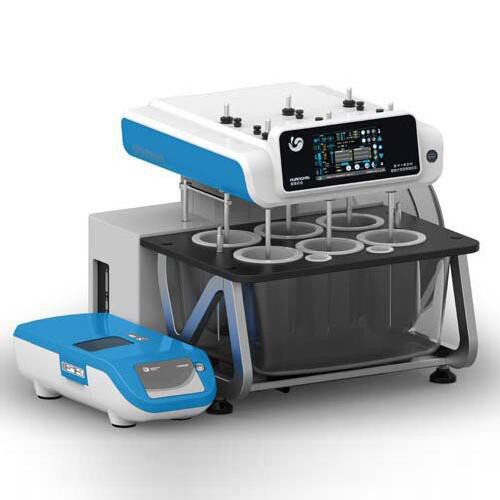

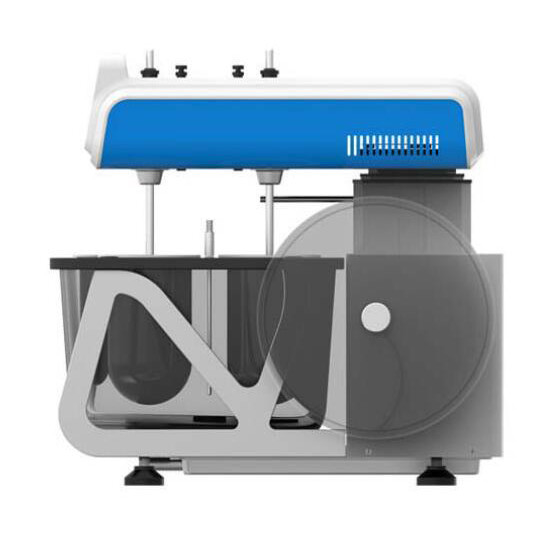

Lab Digital Tablet Four Functions Tester, Automatic Tablet Multi Purpose Four Use Tester SY-6DN

Lab Tablet Test Apparatus Hardness Friability Disintegration Dissolution Tester

It has four functions: detecting pharmic dissolution, disintegration, friability/abrasion and hardness of tablet.

The smart tablet multi-purpose integrates four functions of dissolution, disintegration time limit, tablet hardness and tablet friability. The shape is smooth and beautiful, compact and stable, and it is highly reliable and easy to operate. advantage. At the same time, it has the characteristics of “accurate speed”, “stable operation” and “low energy consumption”. This product is widely used in pharmaceutical plants, medical research, teaching and research and drug testing departments. The technical indicators of various functions are in line with the "Chinese Pharmacopoeia 2015 Edition" and the standard of conformity evaluation of generic drugs.



Characteristics:
1. The technical indicators of each function are in line with the Chinese Pharmacopoeia 2015 edition and the standard of conformity evaluation of generic drugs.
2. Built-in user rights management, data management system, and long-term detection of data.
3. Higher precision integrated circuit design to ensure measurement accuracy.
4. More perfect, simple and user-friendly operation interface and method.
5. Four functions of one machine: dissolution rate, disintegration time limit, tablet hardness, tablet friability; more efficient and convenient.
6. Smaller size, reducing the footprint of the lab bench.
7. 6 baskets or paddles (optional Teflon coating) can be installed, and 6 185mm high-precision vessels can be placed.
8. More precise temperature control system and more convenient drainage system.
9. High-definition transparent lens window above the hardness test chamber, which is clear and intuitive for each test process.
10. The speed is more accurate, the operation is stable, the energy consumption is low, and the reliability is high.
11. With fault self-diagnosis function; detection data can be exported and printed by USB.
12. Optional small cup method accessories (for the third method of dissolution determination).



Specifications:

  Model SY-6DN
Dissolution Stirring paddle swing amplitude ≤0.5 mm
Basket swing range ≤1.0 mm
Deviation of the shaft of the paddle, the basket and the vessel ≤2.0 mm
Speed setting range 10-300rpm/min
turn around Clockwise/counterclockwise
Steady speed error ≤±1 rpm/min
Temperature range Room temperature ~ 45.0 ° C
Temperature resolution 0.1 °C
Temperature control accuracy ≤±0.3 °C
Sampling cycle points 100 different sampling periods
Sampling cycle time 1 minute~99 hours 59 minutes
Number of paddles and baskets 6 each
Number of baskets 6
High precision dissolution cup specifications Height 185mm, volume 1000ml
High-precision vessel number 6
Disintegration time limit Basket lifting frequency 30~32 times/minute
Basket lifting amplitude 55mm±1mm
Screen to cup bottom 25mm±1mm
Screen aperture 2mm (with optional)
Temperature range Room temperature ~ 45.0 ° C
Temperature resolution 0.1 °C
Temperature control accuracy ≤±0.3 °C
Sampling cycle points 100 different sampling periods
Sampling cycle time 1 minute~99 hours 59 minutes
Flat bottom beaker volume 1000ml
Number of flat bottom beakers 1
Hardness Measuring range Hardness 10-350N, tablet diameter 2-25mm
Resolution 0.01N
Precision ±1.5%±1digit
Diameter measurement range 2.0 to 25.0mm
Diameter resolution 0.1mm
Diameter measurement accuracy ±0.1mm
Hardness measurement unit N / kg (optional)
Measurement method Automatic single/continuous multiple times (1000 times)

Friability Drum size Inner diameter 286mm, depth 39mm
Pill slip height 156mm
Default speed 25rpm/min
Speed setting range 25-50 rpm/min
Default number of circles 100 laps
Number of turns setting range 1-1000 laps
Turn around Clockwise/counterclockwise
Number of drums 1
Other Power AC220V±10%,50Hz



CE Bonnin Medicine Tablet Testing Equipment Hardness Friability Disintegration Dissolution 0

CE Bonnin Medicine Tablet Testing Equipment Hardness Friability Disintegration Dissolution 1CE Bonnin Medicine Tablet Testing Equipment Hardness Friability Disintegration Dissolution 2

CE Bonnin Medicine Tablet Testing Equipment Hardness Friability Disintegration Dissolution 3

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
