| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | Class II A2 Series |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-5000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Types: | A2 Biological Safety Cabinet | Lnflow Velocity: | 0.53±0.025m/s |
|---|---|---|---|
| Downflow Veloclty: | 0.33±0.025m/s | Warranty: | 12 Months And Life-time Technical Support |
| High Light: | Class II A2 Biological Safety Cabinet,Class II b2 biosafety cabinet,Class II microbiological safety cabinet |
||

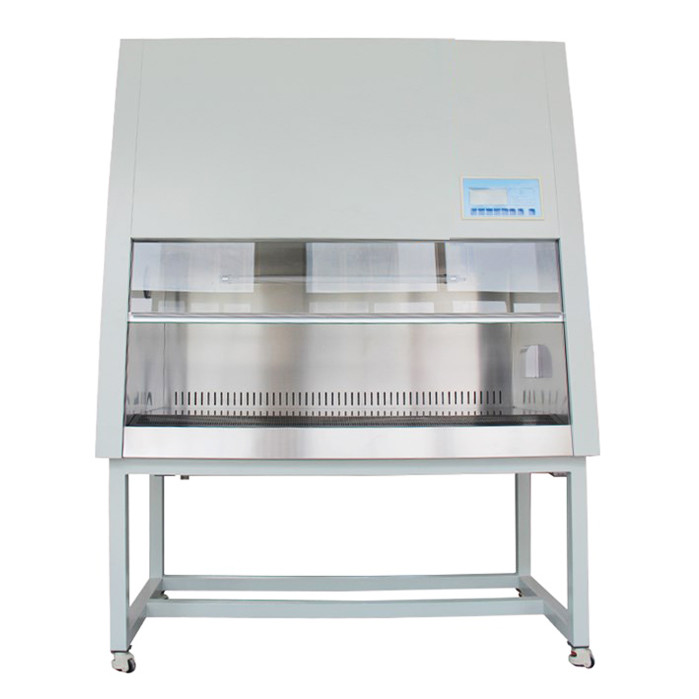

China Class II A2 Biological Safety Cabinet BSC-1000IIB2 Class II A2 B2 Biological Safety Cabinet
Features:
1. Motorized front window.
2. Time reserve function.
3. ULPA filter life and UV life indicator.
4. Automatic air speed adjustable with filter block.
5. With memory function in case of power-failure.
6. Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
7. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
8. Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
9. Remote control: all functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
Model Specification:
| Model | BSC-1100IIA2-X | BSC-1300IIA2-X | BSC-1500IIA2-X | BSC-1800IIA2-X | BSC-2000IIA2-X | |
| External Size(WDH) lnternal Size(WDH) |
1100*750*2250mm 940*600"660mm |
1300*750*2250mm 1150*600*660mm |
1500*750*2250mm 1350*600*660mm |
1800*775*2290mm 1625*600*660mm |
1950"800*2170mm 1800*600*660mm |
|
| Tested Opening Max Opening |
Safety Hoight 200mm(8) | |||||
| 420mm(17") 420mm(17") | 500mm (20") | 550mm(22") | 400mm(16") | |||
| lnflow Velocity Downflow Veloclty |
0.53±0.025m/s 0.33±0.025m/s |
|||||
| ULPA Filtor Front Window Noise |
Two,99.9995% efficlency at 0.12μm.Fllter life indicator. Motorized.Two-layer laminated toughened glass ≥5mm.Anti UV. EN12469≤58dB/NSF49≤61dB |
|||||
| UVLamp | 30w*1 | 30w*1 | 40w*1 | 40w*1 40w*1 |
40w*1 | |
| UV timer,UV life indicator,emission of 253.7 nanometers for most efficient decontamination. | ||||||
| llluminating Lamp | LED lamp | |||||
| 12w*2 | 12w*2 | 16w*2 | 16w*2 | 16w*2 | ||
| llumination Consumpton |
≥100OLux | |||||
| 760w | 800w | 900w | 900w | 1500w | ||
| Waterproof Sockets | Two, total load of two sockets:500w | |||||
| Display | LCD display:exhaust filter and downflow filter pressure,filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
|||||
| Control Systom Alrtow System Visual and audlio alarm |
Microprocessor 70% air recirculation, 30% air exhaust abnormal airflow velocity; Filter replacement; Front window at unsafe height |
|||||
| Material | Work zone: 304stainless steel Main body: cold rolled steel with anti-bacteria powder coating. |
|||||
| Work Surface Height caster |
750mm footmaster caster | |||||
| Power Supply | AC220V±10%,50/60HZ; 110V±10%,60HZ | |||||
| standard Accessory Optonal Accessory |
LED lamp,UV lamp*2,Base stand,Remote control, Foot switch, Drain valve, Waterproof sockets*2 Water and gas tap,Electric height adjustable base stand,Armrest,chair |
|||||
| Gross Weight Package Slze(WDH) |
243kg 1220*1000*1840mm |
280kg 1460*1050*1800mm |
316kg 1630*1000*1820mm |
395kg 1930*1000*1820 |
420kg 2090*1050*1860mm |
|
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
