| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | PCR Series |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-5000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Cabinet Name: | PCR Workstation | Max Opening: | 300mm |
|---|---|---|---|
| HEPA Filter Efficiency: | 99.999% At 0.3μm | Internal Size(W*D*H)mm: | Available |
| High Light: | CE laminar airflow cabinets,laminar air flow chamber 65dB,pcr work station UV sterilization |
||

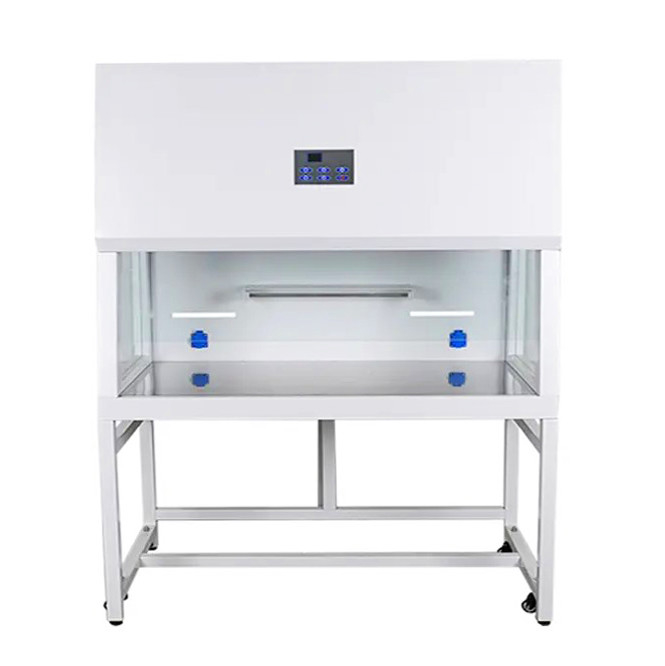

CE Certified Laminar Airflow PCR Cabinet PCR workstation
Feature:
1. LCD display(LED display for PCR1000).
2. UV sterilization system.
3. HEPA filter efficiency 99.999% at 0.3μm.
4. With memory function in case of power-failure.
4. Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
5. UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation
for the next experiment.
Model Specification:
| Model | PCR-800 | PCR-1000 | PCR-1200 | PCR-1300 | PCR-1500 |
| External Size (W*D*H) | 800*700*1770mm | 1000*705*1770mm | 1200*700*1770mm | 1300*700*1770mm | 1500*700*1770mm |
| Internal Size (W*D*H) | 700*595*550mm | 900*595*560mm | 1100*595*550mm | 1200*595*550mm | 1400*595*550mm |
| Work Surface Height | 750mm | ||||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||
| Work Table: 304 stainless steel | |||||
| Front & Side Windows | 5mm toughened glass, anti-UV | ||||
| Motorized | Manual | Motorized | |||
| Max Opening | 300mm | 320mm | 300mm | ||
| Pre-Filter | Polyester fiber, Washable | ||||
| HEPA Filter | 99.999% efficiency at 0.3μm. | ||||
| Airflow Velocity | 0.3-0.5m/s, speed adjustable | ||||
| Noise | ≤65dB | ||||
| UV Lamp | 20W*1 | 20W*2 | 30W*1 | 30W*1 | 40W*1 |
| Emission of 253.7 nanometers, with UV timer | |||||
| LED Lamp | 8W*2 | 12W*2 | |||
| Illumination | ≥350lx | ||||
| Shelf with IV bar | Stainless steel, 502*150*50mm (W*D*H) | ||||
| Caster | Universal caster with leveling feet | ||||
| Consumption | 400W | 300W | 600W | ||
| Waterproof Socket | Two, total load≤500W | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Standard Accessory | UV lamp;Fluorescent lamp;
Base stand; Waterproof socket*2; Shelf with IV bar. |
||||
| Gross Weight | 168kg | 178kg | 220kg | 231kg | 250kg |
| Package Size (W*D*H) | 960*940*1450mm | 1150*930*1450mm | 1350*930*1450mm | 1450*930*1450mm | 1650*930*1450mm |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
