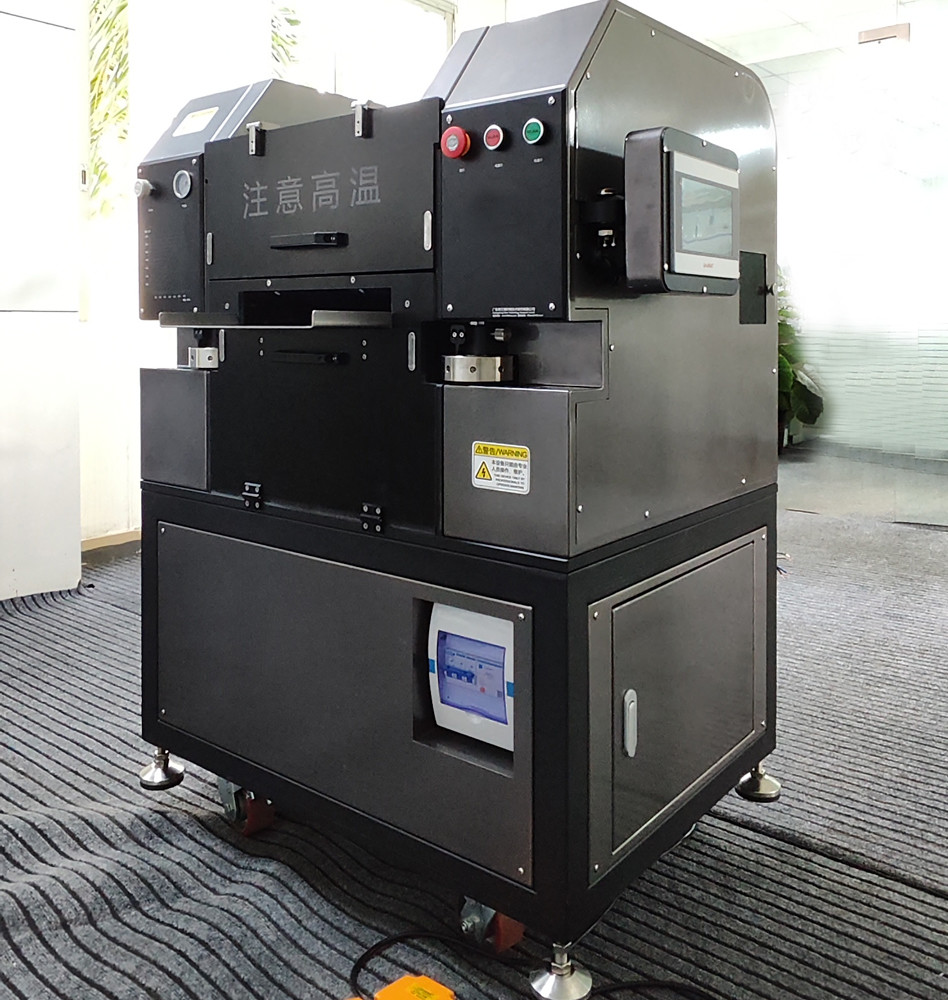

BN-8033 Laboratory High Temperature High Pressure Paper Rolling Calender for Sheet Materials

BN-8033 Laboratory High Temperature High Pressure Paper Rolling Calender for Sheet Materials

BN-8033 laboratory calender is a roller pressing equipment specially used for the calendering process of thin sheet materials. According to the different characteristics of the materials, the calendering effect is controlled by different roller widths, different roller pressures, different roller temperatures, different roller distances and other conditions. This series of equipment adopts ultra-high precision configuration to ensure accurate roller thickness, balanced pressure and precise temperature control.

This series of calenders is designed for calendering of various thin sheet materials, and the temperature is usually between 150~350°C. The heating roller of the bottom roller of the equipment is made of rust-proof and super-hard steel.

There are many types of replaceable surface rollers, made of steel or polymer materials, high-gloss polished, and equipped with high-temperature protective covers. Functions Equipped with a touch screen control platform, you can set the rolling conditions on the control platform. After the equipment is started, turn on the heating switch, the roller starts to heat and enters the operating state.

After the equipment reaches the set temperature, it enters the constant temperature state. Adjust the roller press to make the pressure reach the set pressure.

Set the roller speed and cut a strip from the sample as a reference sample for the experiment, then put the sample into the calender for calendering.

The sample is rolled into the roller at a set speed and passes through the roller, so that the sample is calendered at a set pressure and the surface becomes smooth. The smoothness tester can be used to measure and compare the calendered sample and the previously reserved cut strip.

Technical parameters

➢Rolling material width: 1~300mm can be processed, and the rolling width can be customized according to actual conditions

➢Rolling width selection: 300mm

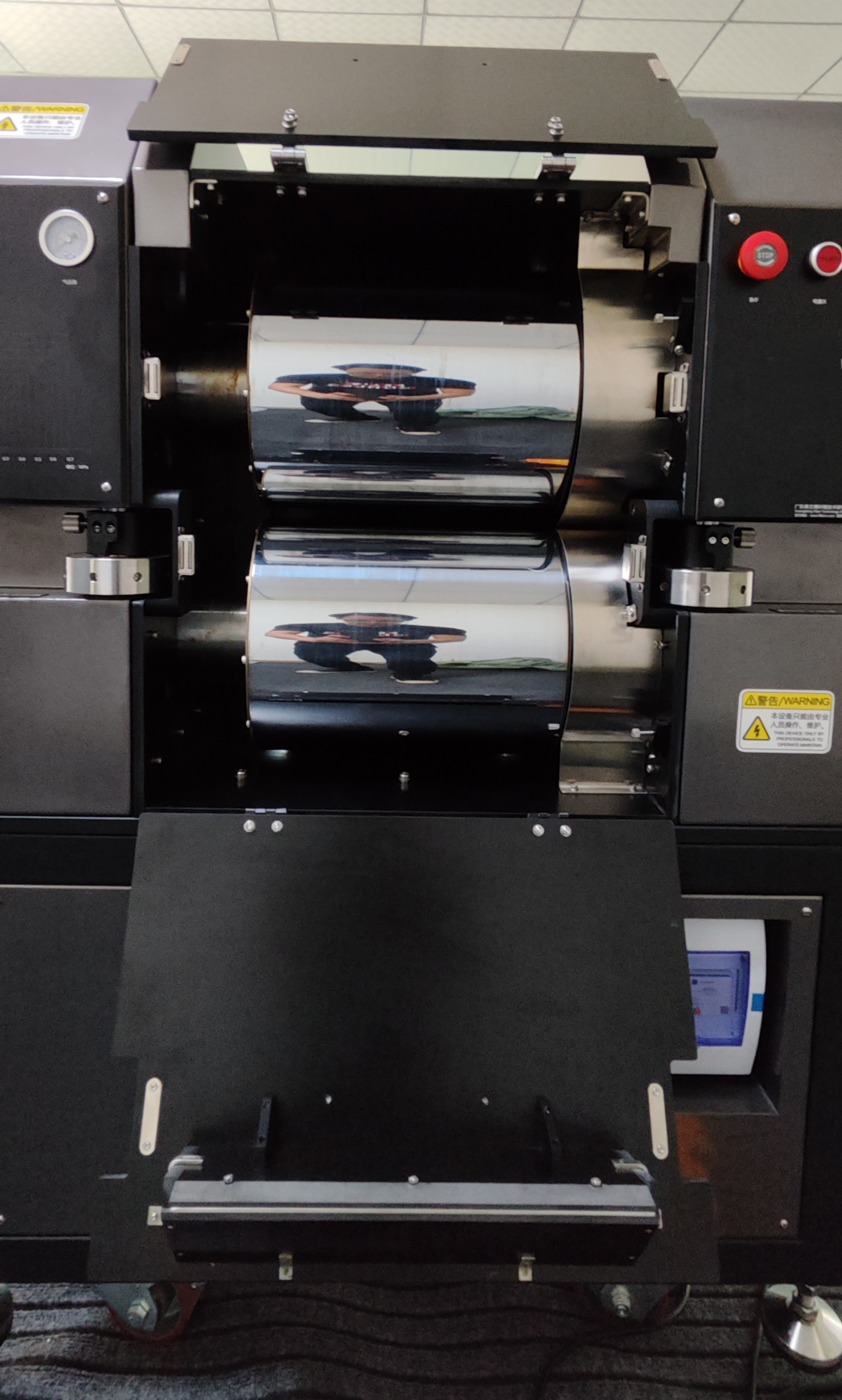

➢Roller diameter: bottom roller greater than 220mm, surface roller greater than 220mm

➢Rolling configuration: double roller transmission

➢Roller configuration: heating roller uses mirror steel roller, rubber roller hardness is 85~90

➢Rolling pressure: 0~300 N/mm

➢Parallelism control: 0.03mm

➢Rolling speed: 0~5 m/min

➢Thickness control: equipped with thickness regulator, thickness control mainly depends on pressure control

➢Heating temperature range: room temperature~160℃ adjustable, single roller heating.

➢Temperature control: Omron temperature control system, dual sensor control soft calender roller press

➢Technical parameter control: temperature, speed and other technical parameters are implanted in the control system

➢Door cover safety protection: door cover is equipped with an emergency stop switch for opening the cover

➢Roller lifting control: foot-operated control of roller opening and closing

➢Air pressure configuration: (0.1-0.6) Mpa pressure range can be changed arbitrarily

➢Operating system: 7.0-inch touch screen control system

➢Insulation: report insulation protection layer

➢Power supply: 380V

FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
