| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | BN-PFI02 |
| Minimum Order Quantity: | 1 set |
| Price: | USD8000-15000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Equipment: | PFI Type Refiner Mill Pulp Beater | Paste: | Inner Diameter 250mm, Deep 53mm, Rotating Speed: 11.8r / S |
|---|---|---|---|
| Test Standards: | ISO 5264/2, DIN-EN 25264-2 | Warranty: | 12 Month, Life-time Technical Support |

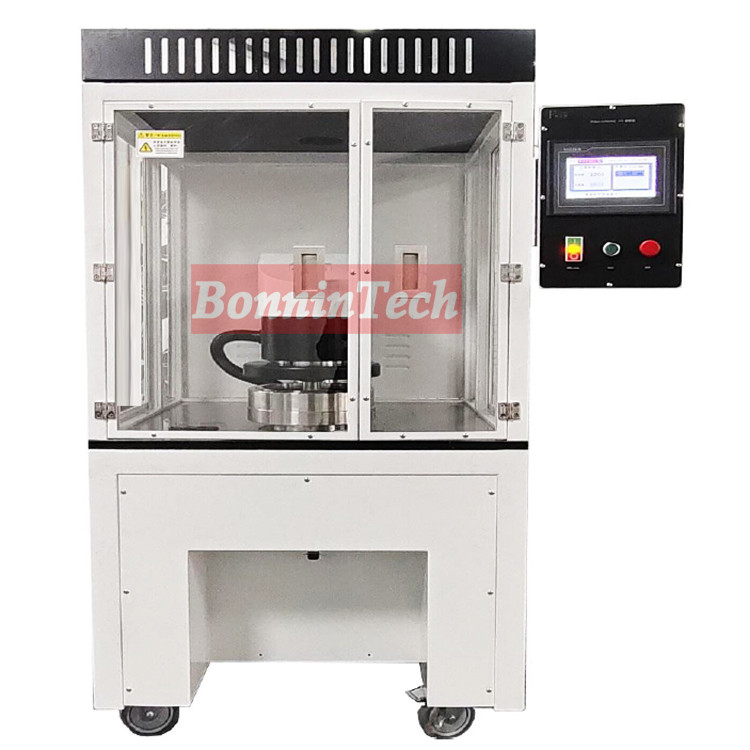

This PFI Type Pulp Refiner Mill Beater is a standard laboratory beating machine with a number of blades and a smooth beating roller that rotates in the same direction but has a different peripheral speed, applies a certain beating pressure to allow the mechanical role between the beating roller and beating chamber, to achieve the purpose of beating. Adjustable the gap between the beating roller and the beating chamber to control the pulp, a wide range and good reproducibility. Especially for medium and high concentration beating.
Test standards:
ISO 5264/2 DIN-EN 25264-2 PFI Type Pulp Refiner Mill Beater, ISO 5264 Paper Pulp Beating Tester
Implementation criteria:
ISO 5264 / 2-1979 "Pulp Lab beating - Part II: PFI Grinding" and ISO 5264/2, TAPPIT248.
ISO 5264/2 DIN-EN 25264-2 PFI Type Pulp Refiner Mill Beater, ISO 5264 Paper Pulp Beating Tester
Technical parameters:
| Applicable beating degree range | Absolute water filtration performance (4~96) °SR |
| Standard refining consistency | 10% |
| Process refining consistency | (1~30)% |
| Standard refining pressure | (1.77±0.1)N/mm, (3.33±0.1)N/mm, (4.89±0.1)N/mm three presets |
| Process pressure | (0~5.0±0.1)N/mm range arbitrarily set knife pressure |
| Raising & lowering | Automatic raising and lowering, pneumatic control |
| Feeding & Retracting | Automatic feeding, automatic retracting, no handle operation |
| Pressurized method | Air pressure intelligent control system |
| Flying knife rotor | Outer diameter: Φ200mm height 50mm knife thickness 5mm |
| Pulp pit | Inner diameter: Φ250mm, depth: 53mm, rotational speed: 650±30r/min, |
| Flying knife material | 304 stainless steel |
| Disc material | 304 stainless steel |
| Flying knife speed | (1450±20)r/m |
| Refining Parallelism Accuracy | 0.02mm |
| Disc gap distance | 0~25mm range can be adjusted |
| Spacing positioning | Equipped with secondary spacing positioning locking structure |
| Operating space | Independent fully enclosed work space, splash protection, noise isolation |
| Pool motor | 0.37KW/380v |
| Knife pressure visual function | Knife pressure is visible online |
| Refining progress visualization function | Online visualization of refining progress |
| Line speed difference | (6.6±0.2) m/s. |
| Disc grinding volume | Volume 600ml |
| Slurry cleaning | The bottom is equipped with a pulp outlet to avoid the heavy workload caused by pulping, which can achieve |
| Power supply | 380V, 50HZ |
| Equipment size | 800*1000*1750mm |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
