| Product Name: | 2D Manual Optical Vision Measuring System | Test Range: | 300*200*200, 400*300*200, 500*400*200 |
|---|---|---|---|
| CCD: | 1/3 CCD Colorful Industrial Camera | Display: | PC Software Controlled |

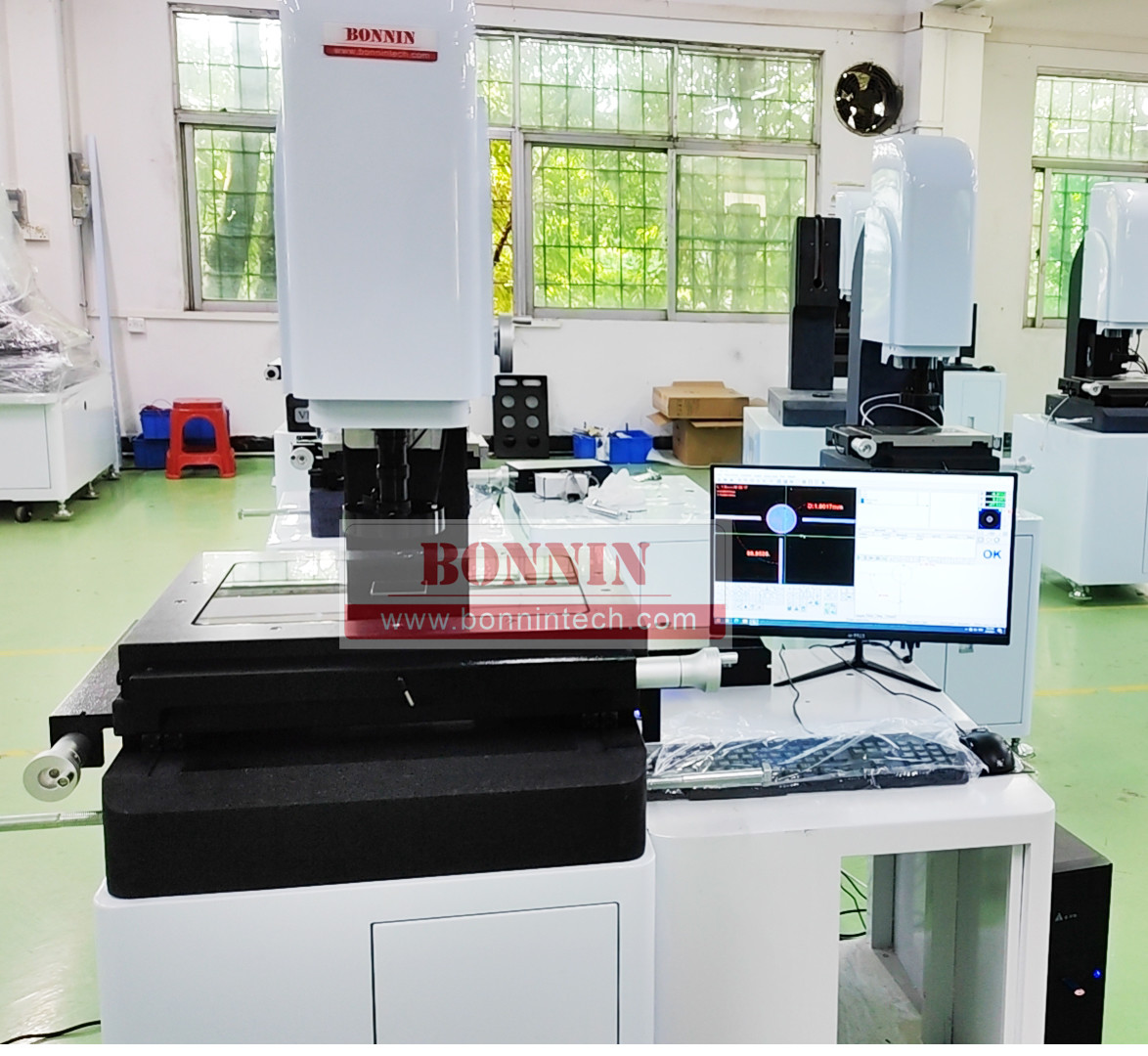

VMS Series Video Measuring Machine can realize accurate mass measurement of work-piece, suitable for precision parts inspection and quality control. Widely used in electronics, machinery, plastic, metal, mold and other industries.
Product Features of Video Measuring Systems
1. Equipment adopts goose-neck structure, the overall body has strong rigidity, small deflection of the Z axis, stable structure, and easy to guarantee higher accuracy.
2. Three axis automatic control, high-speed and stable automatic measurement.
3. Using Renishaw grating ruler, accuracy is up to 0.5 um.
4. Automatic import variable x optical lens, which can realize automatic variable times measurement.
5. Programmable 5 ring 8 area circular table light source, LED light source.
6. Using special high precision motion control card which imported from the USA.
7. Configuration industrial-grade color CCD camera.
Technical parameters:
| Items | VMS-2010F | VMS-3020-F | VMS-4030F | VMS-5040F | |||
| Dimension(mm)(L×W×H) | 500*700*1100 | 600*750*1100 | 700*900*1150 | 850*1050*1200 | |||
| Measuring range(mm)(X×Y×Z) | 200*100*200 | 300*200*200 | 400*300*200 | 500*400*200 | |||
| Measuring Accuracy(μm | 3+L/200 | 3+L/200 | 3+L/200 | 3+L/200 | |||
| Repeatability (μm) | 3 | 3 | 3 | 3 | |||
| Weight(kg) | 150 | 180 | 200 | 240 | |||
| Image and Measuring | CCD | Japanese SOnYCcD | |||||
| Len | WM HD zoom lens / continuous magnification 0.7-4,5x | ||||||
| Magnification | 30-210X | ||||||
| ptical scale resolution | X/Y/zaxis 0.0005mm ( 0.5um | ||||||
| Measuring range | 9.omm-1.35mm | ||||||
| measuring system | Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe, | ||||||
| Driving system | versatile data processor can measures points, lines, loops, circles, angles, etc. | ||||||
| Illumination | Surface light and projection light, cold light, long life, brightness adjustable | ||||||
