Sample Size: | 320*320*100mm | Pressing Method: | Two-stage Pressing |
---|---|---|---|
Warranty: | 12 Month, Life-time Technical Support |

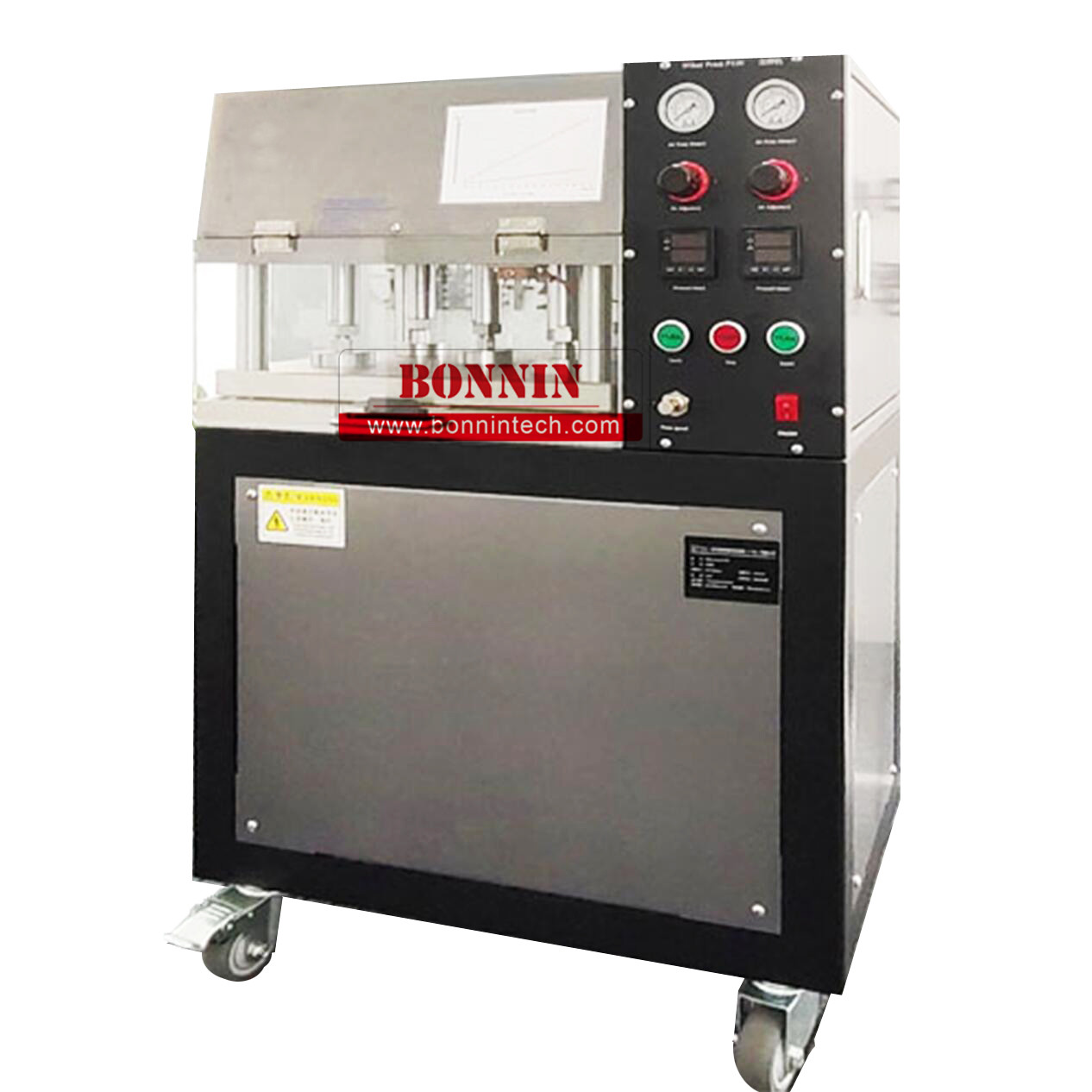

BN-8031 Laboratory Papermaking Sheet Materials Press Machine
It is a device specially used for laminating sheet materials. It can be used for pressing fiber-based composite materials and extruded sheet materials. It is mainly used to increase material density, treat material surface, and so on. In the field of early fiber wet forming, the paper sample press is an auxiliary equipment used in the laboratory papermaking process to squeeze out moisture, flatten samples, and increase paper tightness. This equipment is suitable for use in papermaking enterprises, papermaking chemical enterprises, papermaking research institutions, universities and colleges, and other departments.
Technical indicator
Sample size: 320*320*100mm, other sizes need to be customized;
System pressure: 0~0.9MPa adjustable, depending on own environment;
Ultimate working pressure: generally 0.1Mpa~0.9MPa (determined by the working pressure of the compressor);
Pressing method: two-stage pressing;
Cylinder diameter: 5/1*100mm;
First-stage pressing force: (78.5~706.5)Kg;
Second-stage pressing force: (392.5~3532.5)Kg;
Pressing plate material: upper and lower pressing plates are 304 stainless steel;
Pressure plate dislocation-free configuration: 4-point parallel positioning to prevent the pressure plate from being displaced and damaging the sample;
Material transfer method: built-in platform;
Pressure method: step-type pressing; and high-tech protective cover;
Step control method: step-type pressing independent program control, dual system control;
Floor-type design: built-in mobile platform, can be moved at will;
Pressure speed: 3s~20s infinitely adjustable;
Pressure time: 1~9999S optional;
Gas source configuration: external gas source;
Power supply: 220V, 50Hz
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
