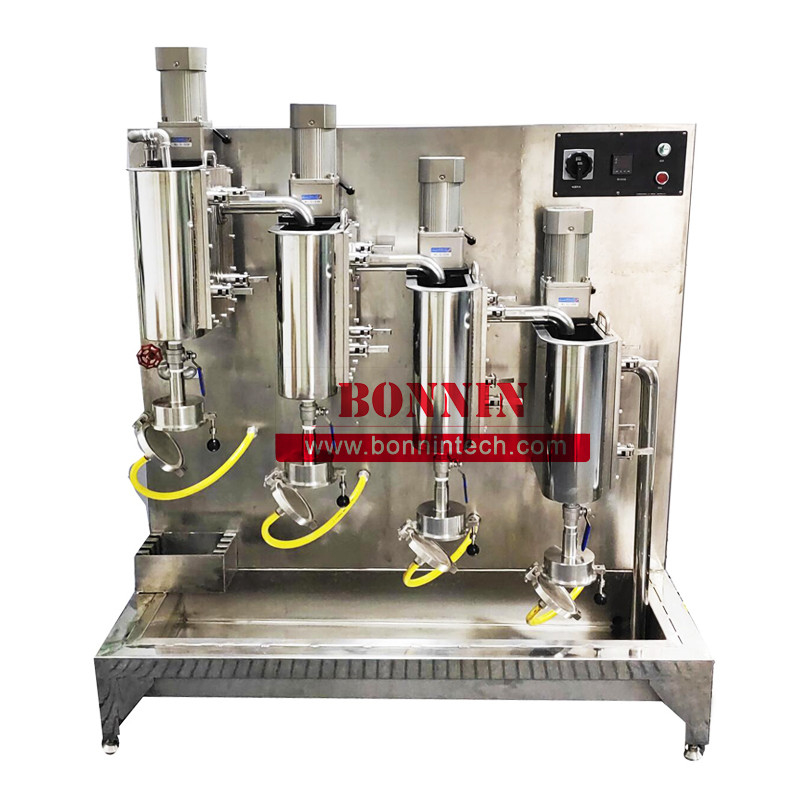

Bonnin Laboratory McNett Fiber Classifier

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-8052
Minimum Order Quantity: 1 set
Price: USD6000-15000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Screening Level: 4 Level Screening Mesh: Factory Selection Of Medium- Long Fiber: Tyler Screen Number.14 Mesh, 28 Mesh, 48 Mesh, 100 Mesh.
Sieve Capacity: 10 Liters (the Volume Of A Single Classifier) Warranty: 12 Month, Life-time Technical Support

BN-8052 McNett Type Fiber Classifier TAPPI T233cm McNett Fiber Classifier


BN-8052 McNett Type Fiber Classifier is measuring the weight average fiber length of pulp fiber by sieving method. Used to measure the proportion of fiber in different lengths of pulp, master the length of fiber in the slurry distribution.


Test standards:

The machine conforms to the screening method specified in GB / T 2678.1-1993, also meets the screening method specified in TAPPI T233cm-95 and meets the requirements of Scandinavian SCAN M6 (10g sample, flow 15min, flow rate 10L / min) experimental method.


Test principle:

The pulp suspension is filled into a sieve, and the sieves are filled with sieve mesh and the containers are ladder. When the pulp suspension flows from one container to another, the pulp of different fiber length is retained on different sieves. The length of the fiber remaining in the pulp is the same as the size of the mesh of the sieve plate. In a certain flow rate, the screening after a certain time. The fibers on each sieve plate were collected, dried and constant weight, and the results were reported as the percentage of the mass delivered to the samples.


Technical Parameters:

1. Screening level: 4 level

2. Screening mesh: (factory selection of medium- long fiber): Tyler screen number.14 mesh, 28 mesh, 48 mesh, 100 mesh.

3. Sieve capacity: 10 liters (the volume of a single classifier)

4. Mixer speed: (580 ± 40) r / min

5. Water flow: 2 ~ 18L / min adjustable (according to the standard used in the experiment)

6. Screening time: 0 ~ 9999min adjustable (according to the standard used in the experiment)

7. Main material: 304 stainless steel

8. Overall dimensions: 1780mm (length) × 520mm (width) × 1680mm (high)

9. Net Weight: 130Kg

10. Water conditions: the need for continuous water

11. Power: 240W / 380V

12. Common Screen (Recommended)

Long fiber, Tyler Screen number 10 mesh, 14 mesh, 28 mesh, 48 mesh
Medium fiber, Tyler sieve (factory selection) 14 mesh, 28 mesh, 48 mesh, 100 mesh
Staple fiber, Tyler Screen number 28 mesh, 48 mesh, 100 mesh, 150 mesh or 200



Bonnin Laboratory McNett Fiber Classifier 0



Bonnin Laboratory McNett Fiber Classifier 1

Bonnin Laboratory McNett Fiber Classifier 2
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
