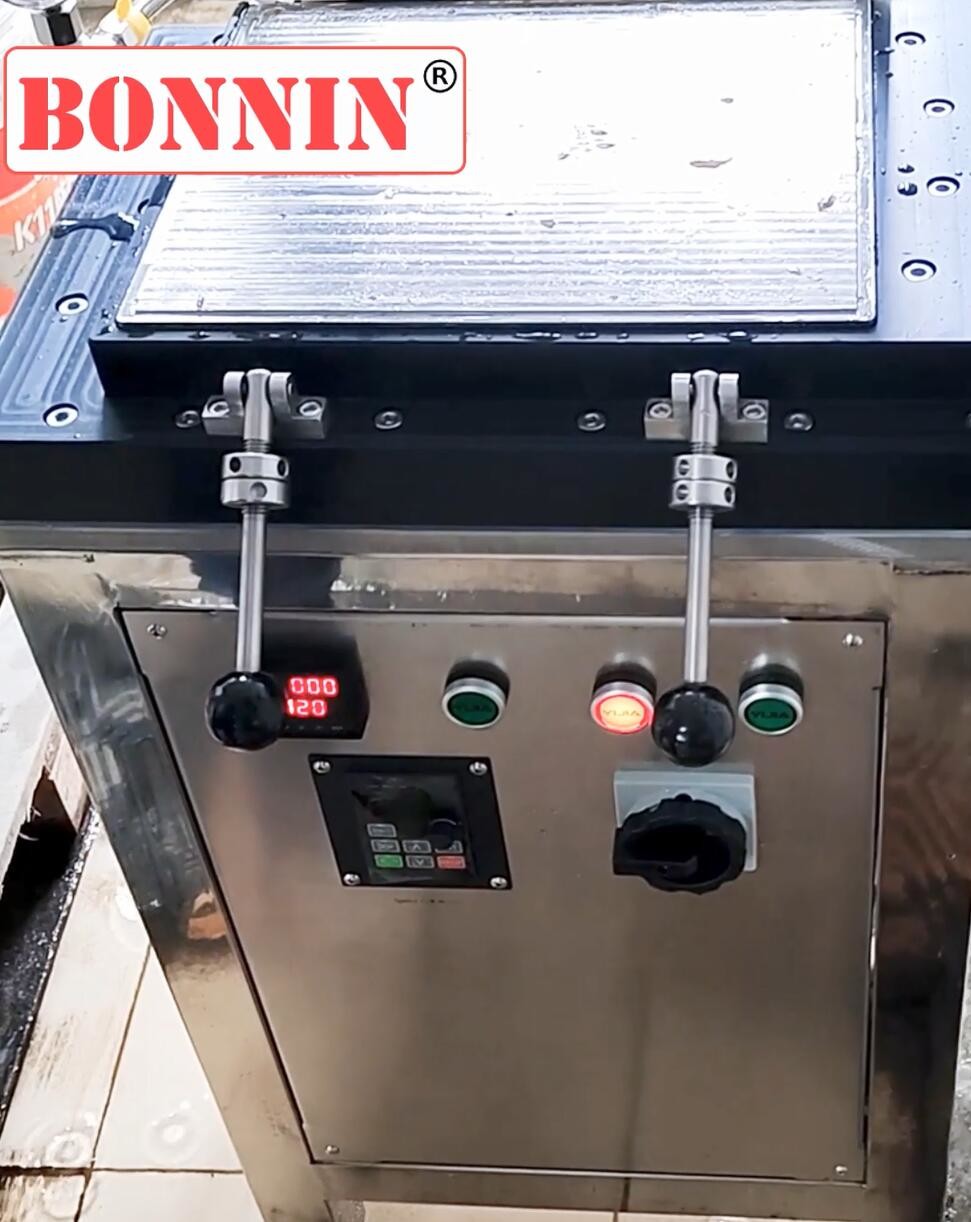

Bonnin Brand Laboratory Somerville Fractionator (Somerville Equipment)

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-8057
Minimum Order Quantity: 1 set
Price: USD3000-9000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: Somerville Type Pulp Screening Fractionator Screen Frame Size: 320mm*270mm
Test Standards: TAPPI T275,TAPPI UM242,PAPTAC C.11P. Warranty: 12 Month, Life-time Technical Support

Bonnin Brand Somerville type Pulp Screening Fractionator Fibre Fractionator



This upgrade BN-8057 flat Somerville type Pulp Screening Fractionator is used to sift the impurities in the slurry and determine the content of impurities such as debris in the pulp. It is used in the pulp and paper laboratory. The screening machine can reduce the amount of impurities in the pulp suspension that do not meet the process requirements, and obtain a clean good pulp. The machine is a flat-plate vibrating screen machine with a size of 270×320. It can be equipped with sieve plates with different specifications. It is a kind of pulp that will be used to screen pulp fibers by vibrating vacuum suction. At the same time, the machine can also be used as a flat screen.



In other part, you can used lab pulp screen to screen different length fibers that you need by change different mesh number screen. Meet to TAPPI T275,TAPPI UM242,PAPTAC C.11P.

Technical indicator:
Screen frame size: 320mm*270mm
Screen selection: 0.10/0.15/0.20/0.25/0.30mm Depending on the type of fiber (standard 0.3mm)
Vacuum chamber amplitude: 3.2mm
Screening: L45*W0.15mm (Standard)
Number of sieve joints: 756
Sieve plate replacement: the sieve plate can be replaced at any time, and the replacement takes about 2 minutes.
Slurry vibration frequency: 690~700rpm, manual adjustment, digital display
Control system: equipped with timing control system
Meet the standard: TAPPI275, UM242.
Water source requirements: water flow rate 8.6 L / min; water pressure 18 psi (1.23 Kg / cm2).
Water level constraint: three-level water level limit label
Power supply: 220V/50Hz





Bonnin Brand Laboratory Somerville Fractionator (Somerville Equipment) 0

Bonnin Brand Laboratory Somerville Fractionator (Somerville Equipment) 1
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
