Place of Origin: | Wuhan, China |
---|---|
Brand Name: | BonninTech |
Certification: | CE, ISO |
Model Number: | LGJ-20F/100F/200F |
Minimum Order Quantity: | 1 set |
Price: | USD2000-22000/set |
Packaging Details: | Standard export carton box |
Delivery Time: | 5-10 days |
Payment Terms: | T/T |
Supply Ability: | 100 sets/month |
Freeze-drying Area: | LGJ-100F (1.04M2), LGJ-200F (2.16M2) | Cold Trap Temperature: | ≤-75℃ (no-loading) |
---|---|---|---|
Display: | English Touch Screen | Power: | 3Ph+N+PE, 380V |
LGJ-10FD/20FD/30FD/50FD Commercial Coffee Food Vacuum Freeze Dryer Fruits Freeze Drying Equipment
Normal type | LGJ-10FD |
Freeze-dried area | 0.2M2 |
Number of plate | 2 |
Plates space | 70mm |
Loadable material | 2L |
Cold trap temperature | -50—+70 electric heating |
Water for cold trap | 3-5KG/24Hr |
Voltage | AC220V/50Hz |
Dimension | 750*800*1300 |

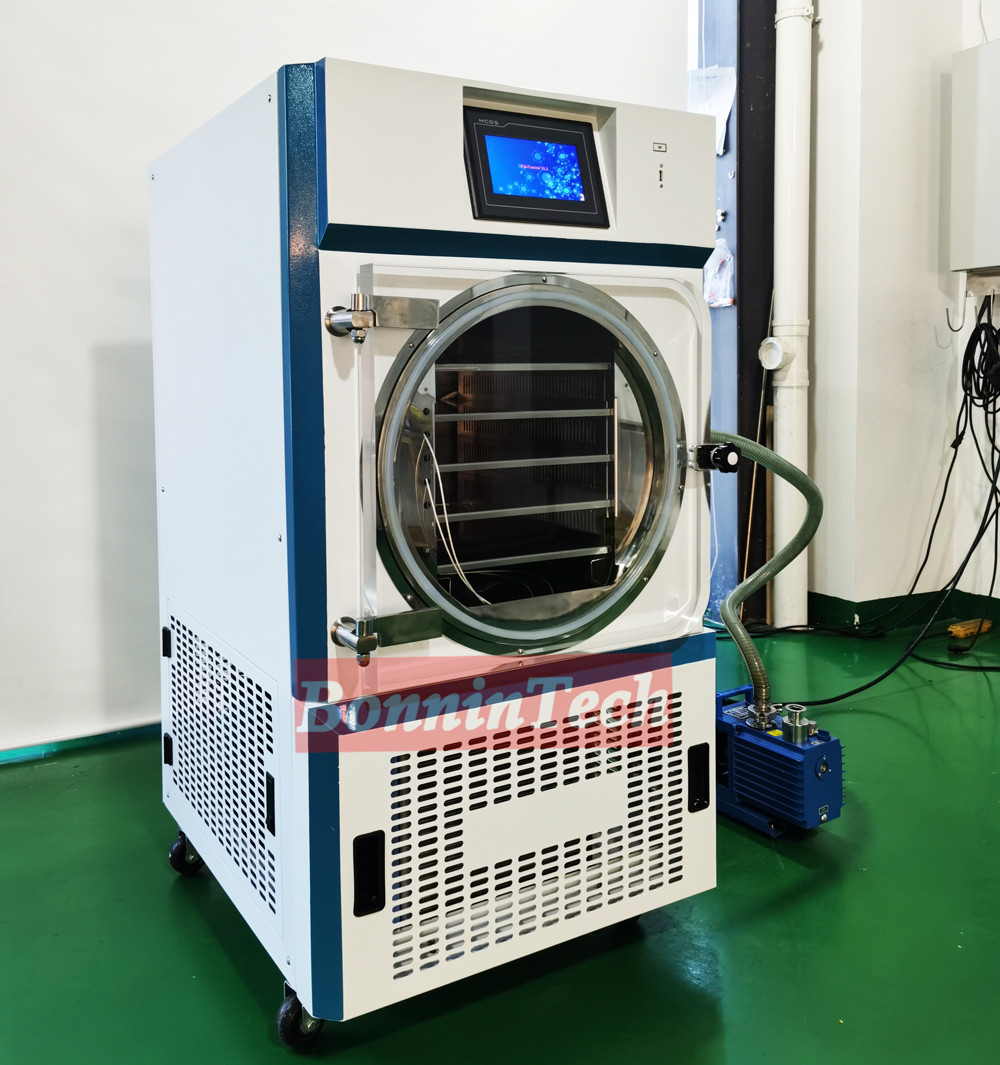

LG-03 LG-06 Competitive Price Vacuum Freeze Dryer Lyophilizer Machine For Food Meat
Technical datas:
Model | LG-03 |
Freeze-drying area | 0.4m2 |
Condenser temperature | ≤-45℃ (no load) |
Water capture capacity | ≥4Kg/24h |
Evacuation rate | 2L/S |
Limit vacuum | ≤10Pa (no load) |
Number of shelves | 4+1 |
Shelf size | 540*200mm |
Spacer spacing | 40mm |
Fresh material handling capacity | 4-5L (liquid) |
Power supply | AC220V, 50Hz |
Power | 2kW |
Dimensions | 510x700x670mm |
Weight: | about 80Kg |
LG-03 Freeze-drying machine features:
1. Humanized design, plug and play, beautiful appearance, compact structure, high cost performance.
2. Box trap integrated design, sublimation channel is shorter, conducive to a large number of water vapor rapid sublimation.
3. Original imported refrigeration compressor, large cooling capacity, high efficiency and energy saving, long service life, low noise.
4. The space grade high transparent plexiglass door can observe the whole process of sample freeze-drying change in real time.
5. Easy operation, high degree of automation, only one button can complete the whole process of freeze-drying.
6. Preset standard freeze-drying process, without in-depth understanding of the cumbersome freeze-drying principle and freeze-drying process, one-click process import.
7. Intelligent fault diagnosis technology displays fault information in text form, which greatly facilitates equipment maintenance and fault repair.
8. Security lock function. Prevent misoperation to modify system status and process parameters, resulting in freeze-drying failure or instrument damage.
9. Partition intelligent energy-saving temperature control technology, high precision temperature control, energy-saving effect is remarkable, the system is stable and reliable.
10. One key fast defrosting technology, safe and efficient.
Other models available:
Main technical datas:
Normal type | LGJ-20F | LGJ-30F | LGJ-50F | LGJ-100F | LGJ-200F |
Freeze-dried area | 0.3M2 | 0.4M2 | 0.5M2 | 1.04M2 | 2.25M2 |
Number of plate | 3+1 | 4+1 | 4+1 | 6+1 | 5+1 |
Plates space | 70mm | 70mm | 70mm | 70mm | 70mm |
Plate size | 270*400*15 | 300*340*15 | 360*480*15 | 360*480*15 | 500*900*15 |
Plate temperature | -50℃ to 70℃ | -50℃ to 70℃ | -50℃ to 70℃ | -50℃ to 70℃ | 50℃ to 70℃ |
Cold trap temperature | ≤-75℃ | ≤-75℃ | ≤-75℃ | ≤-75℃ | ≤-75℃ |
Water for cold trap | 4KG/24Hr | 6KG/24Hr | 8KG/24Hr | 15KG/24Hr | 30KG/24Hr |
Defrost | electric defrost | Natural defrost | Natural defrost | electric defrost | Water soaking |
Voltage | AC220V/50Hz | AC220V/50Hz | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz |
Dimension | 800*800*1550 | 880*735*1320 | 960*785*1450 | 1020*780*1700 | 2100*1200*1700 |
Main features:
1. It is our company’s patented freeze dryer. Square warehouse in-situ vacuum freeze dryer, pre-freezing and drying are completed in-situ, easy to operate and good drying effect.
2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.
3. Inflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.
4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.
5. Internationally renowned brand compressors, high efficiency, long life, low noise.
6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.
7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.
8. The powerful sensor calibration function ensures the long term accuracy of the measured value.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.
11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.
12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.
13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.
14. Setting the user level and password , and decentralizing operation management.
LGJ-200F Full Stainless Steel Vaccum Freeze Dryer With GMP Verification is used in cleanroom.
LGJ-20F LGJ-100F Silicon Oil Heating Vaccum Freeze Dryer / Freeze Drying Machine is used for In vitro diagnostic reagents freeze-drying.
Excellent Pre-sale service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers and sales will make a Official Quotation for you confirm.
3. After our Finance Department confirmed your deposit, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress
5. After the product manufacture finished, if you need, we will arrange shipping for you. With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
Outstanding After-sale service
1. 12 months guarantee term, and Professional Technical Support.
2. If you have any questions when you use our products, please tell us, we will help you solve the problems in time.
3. If any spare parts have problem after you used it, we can provide it for you, help you solve the problem if anything affect your business.
4. We can also provide engineer to your local place if you need. You just need to bear the Airplane ticket, and accommodation cost.
5. Other relevant service you request.
