Freeze-drying Area: | LGJ-100F (1.04M2), LGJ-200F (2.16M2) | Cold Trap Temperature: | ≤-75℃ (no-loading) |
---|---|---|---|
Display: | English Touch Screen | Power: | 3Ph+N+PE, 380V |
High Light: | Medical lab scale lyophilizer,Vacuum laboratory lyophilizer,LGJ-200F pharmaceutical freeze dryer |

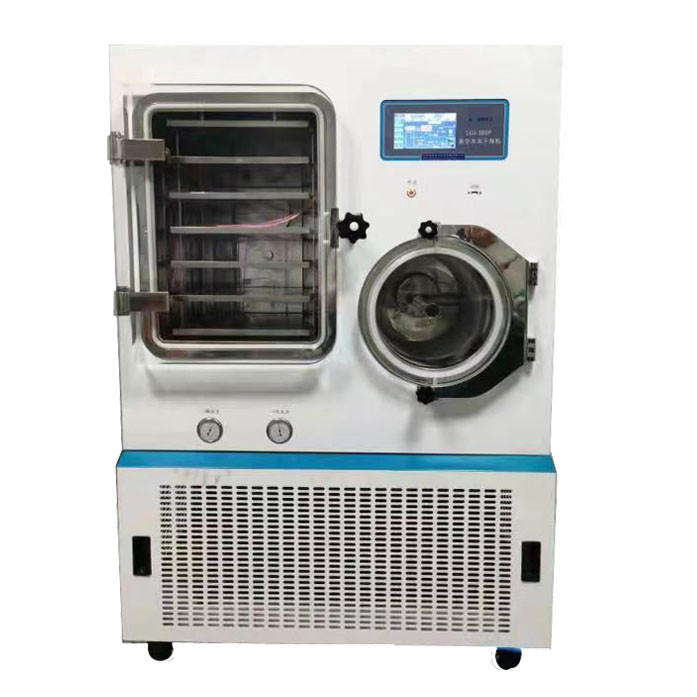

Medical Laboratory Lyophilizer Vacuum Freeze Dryer Pharmaceutical Vaccine Freeze Drying Equipment LGJ-100F LGJ-200F
This LGJ-100F Freeze Dryers Lyophilizers, Reagents Vaccine Vials Vacuum freeze dryer, Laboratory Freeze Dryers is widely used in many applications of pharmaceutical biological industry, such as in vitro diagnostic reagents, drugs, active pharmaceutical ingrediet, bioactive factor, peptide, etc.
And Wuhan Bonnin Technology Ltd has multiple model available. The LGJ-20F/30F/50F/100F/200F silicon oil heating vacuum freeze dryer, in-situ freeze-drying. It changes the tedious operation of the drying process in the past, prevents the contamination of materials, and realizes the automation of drying and sublimation. This model has baffle heating and programmable functions, can memorize the freeze-drying curve, and has a built-in U disk extraction function, which is convenient for users to observe the freeze-drying process of materials.
Normal type and stoppering type is optional.
Main technical datas:
Normal type | LGJ-20F | LGJ-30F | LGJ-50F | LGJ-100F | LGJ-200F |
Freeze-dried area | 0.3M2 | 0.4M2 | 0.5M2 | 1.04M2 | 2.25M2 |
Number of plate | 3+1 | 4+1 | 4+1 | 6+1 | 5+1 |
Plates space | 70mm | 70mm | 70mm | 70mm | 70mm |
Plate size | 270*400*15 | 300*340*15 | 360*480*15 | 360*480*15 | 500*900*15 |
Plate temperature | -50℃ to 70℃ | -50℃ to 70℃ | -50℃ to 70℃ | -50℃ to 70℃ | 50℃ to 70℃ |
Cold trap temperature | ≤-75℃ | ≤-75℃ | ≤-75℃ | ≤-75℃ | ≤-75℃ |
Water for cold trap | 4KG/24Hr | 6KG/24Hr | 8KG/24Hr | 15KG/24Hr | 30KG/24Hr |
Defrost | electric defrost | Natural defrost | Natural defrost | electric defrost | Water soaking |
Voltage | AC220V/50Hz | AC220V/50Hz | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz |
Dimension | 800*800*1550 | 880*735*1320 | 960*785*1450 | 1020*780*1700 | 2100*1200*1700 |
Main features:
1. It is our company’s patented freeze dryer. Square warehouse in-situ vacuum freeze dryer, pre-freezing and drying are completed in-situ, easy to operate and good drying effect.
2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.
3. Inflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.
4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.
5. Internationally renowned brand compressors, high efficiency, long life, low noise.
6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.
7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.
8. The powerful sensor calibration function ensures the long term accuracy of the measured value.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.
11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.
12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.
13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.
14. Setting the user level and password , and decentralizing operation management.

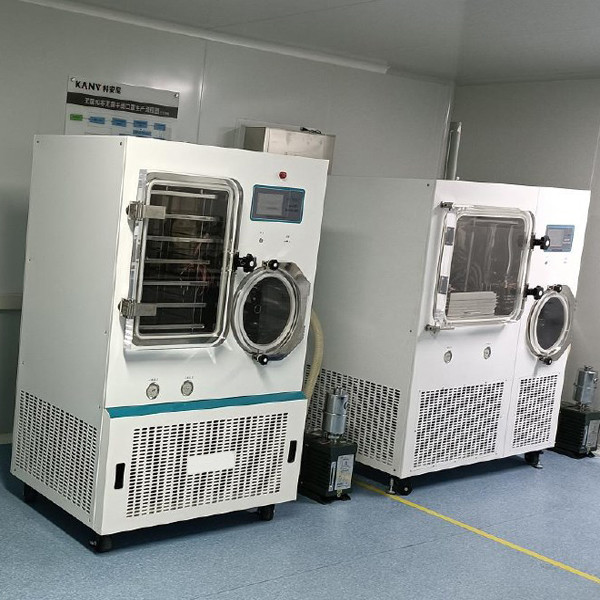

LGJ-200F Full Stainless Steel Vaccum Freeze Dryer With GMP Verification is used in cleanroom.
LGJ-20F LGJ-100F Silicon Oil Heating Vaccum Freeze Dryer / Freeze Drying Machine is used for In vitro diagnostic reagents freeze-drying.
