Equipment: | Plastic Melt Flow Index MFI Tester | Measuring Range: | MFI, MVR Test Methods |
---|---|---|---|
Warranty: | 12 Month, Life-time Technical Support |

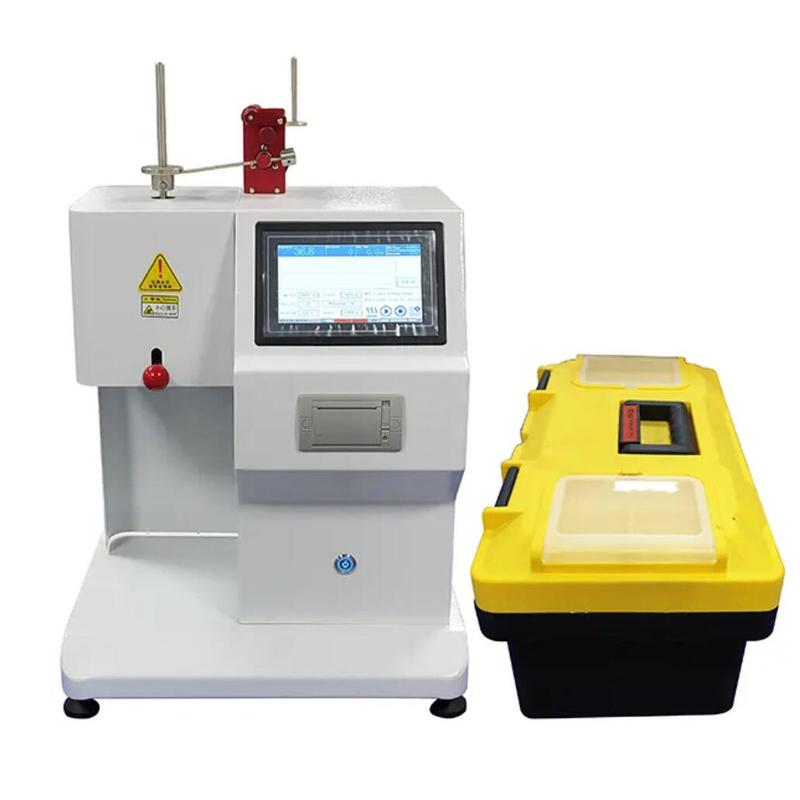

XNR-400B/D Digital melt flow index mfi tester /Plastic Melt flow rate MFI tester, Plastic Melt Flow Indexer Melt Flow Rate MFI MVR Tester
XNR Series Melt Flow Index is used for determination of melt flow rate properties of thermoplastic (such as PE, PP, POM, ABS, PC, nylon and Fluor plastics, etc) under high temperature, according to test methods of GB/T3682, ISO1133, ASTM D1238 test standard. It is widely supplied to the production factory and science and research institute.
Features:
1. High-precision English switchable color controller, have incomparable advantages control accuracy and service life.
2. Automatic and manual cutting control, accurate to 0.1s, can be arbitrary set cutting time and cutting times.
3. Built-in micro printer can print test data.
4. Double temperature control system, using double imported heating ring, double imported PT100 platinum resistance sensor, improve the test accuracy and temperature stability.
5. Added displacement sensor, can achieve test in MVR (volume method) with 0.01mm accuracy.
6. The MVR method can output the test results directly without cutting.
7. The density value of the material at certain temperature can be calculated by the ratio of MVR method and MFR method.
8. The computer can be connected via USB, and test conditions can be set on the computer by software to print data and store data(optional).
Technical parameters:
Model | XNR-400B | XNR-400D | ||
Display | LCD | TOUCH SCREEN | ||
Test Method | MELT MASS FLOW RATE (MFR) + MELT VOLUME RATE (MVR) | |||
Size of barrel | Diameter: 9.55±0.025mm ; length: 160 mm | |||
Outlet diameter | 8.000±0.025mm | |||
Inside diameter of die | 2.095 mm; length 8±0.025 mm | |||
Temperature range | Room temperature~450°C | |||
Temperature display resolution | 0.1°C | |||
Accuracy | ±0.2°C | |||
Time display resolution | 0.1S | |||
Weight accuracy | ±0.5% | |||
Displacement sensor | 0.01mm | |||
MVR Timing Accuracy | 0.001S | |||
Displacement measuring encoder | Omron optical rotary encoder | |||
MFR test range | 0.1-150g/10min | |||
MVR test range | 50-5000cm3/10min | |||
Power | 220V±10% 50HZ |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
