High-end Automatic Plastic Melt Flow Indexer Melt Flow Rate MFI MVR Tester

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: XNR-400E
Minimum Order Quantity: 1 set
Price: USD1000-4000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: Plastic Melt Flow Index MFI Tester Measuring Range: MFI, MVR Test Methods
Warranty: 12 Month, Life-time Technical Support

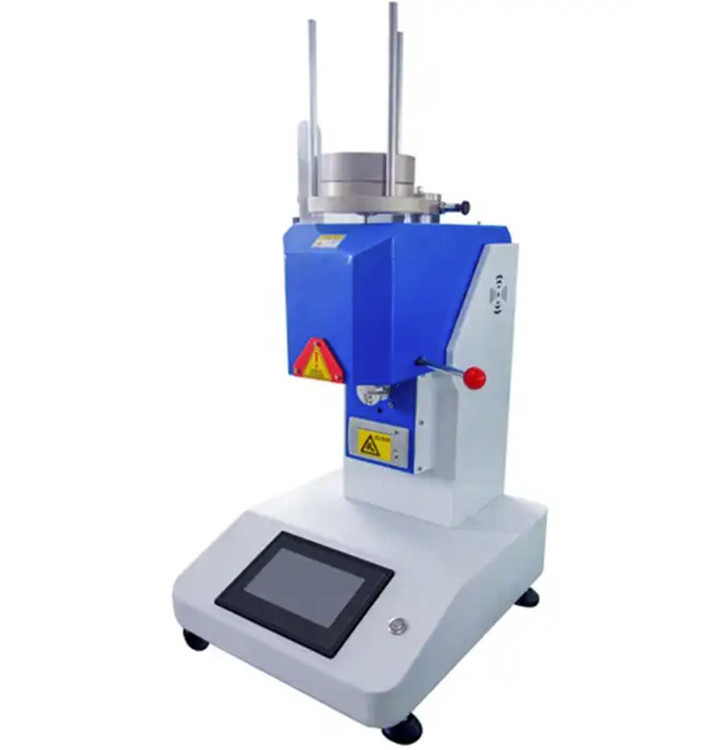

XNR-400E High-end Automatic Plastic Melt Flow Indexer Melt Flow Rate MFI MVR Tester



XNR-400E Melt Flow Index is used for determination of melt flow rate properties of thermoplastic (such as PE, PP, POM, ABS, PC, nylon and Fluor plastics, etc) under high temperature, according to test methods of GB/T3682, ISO1133, ASTM D1238 test standard. It is widely supplied to the production factory and science and research institute.



Features:

  1. Multi-stage (2-stage) temperature control method, 2 sets of platinum resistance sensors, 2 heating jackets for separate temperature control, high-precision intelligent PID control, and adjustable heating slope or heating speed
  2. The temperature resolution is 0.1°C, the temperature uniformity is 0.5°C, the temperature fluctuation within 24 hours does not exceed 0.5°C, and the displacement sensor resolution is 0.01mm.
  3. Temperature over-temperature protection device
  4. Integrated with manual and automatic cutting, the cutting time (0~999) and cutting times (0~999) can be set arbitrarily
  5. When testing, you can choose the mass method, or the volume method, or both test methods at the same time, and the flow rate ratio can be calculated. Both methods start the test when the piston rod moves to a certain position.
  6. Built-in temperature stability prompt alarm, and add 240 seconds (GB3682 stipulation) material preheating second countdown, after the countdown ends, a prompt will sound, and American standard (ASTM) and other preheating time can also be set.
  7. Built-in a variety of plastic material melt index test conditions, convenient for customers to call and use at any time, reduce tedious workload, and store the last test conditions and results
  8. Built-in micro-printer for convenient printing of test data
  9. High-precision touch screen controller, 7-inch touch screen, can store and print the latest test conditions and data, test print menu settings include test time (system default), operator, material name, test method, test conditions (temperature, weights, cutting time interval), test result data
  10. Reserve the RS232 interface or USB interface to connect to the computer, you can control the operation of the instrument through the computer and transfer and save the test data to the computer.
  11. The weight can be manually loaded or the ball screw can be driven by a stepping motor to automatically control the top-loaded weight to rise or fall



Technical parameters:

Temperature range 0°C-450°C
Temperature fluctuation ±0.2℃
Temperature uniformity ±1°C
Temperature display resolution 0.1°C
Time display resolution 0.1S
Die diameter Φ2.095±0.005mm
Outlet length 8.000±0.025mm
Charging barrel diameter Φ9.550±0.025mm
Weight accuracy ±0.5%
Displacement measurement accuracy 0.01mm
Volumetric timing accuracy 0.01S
Displacement measurement encoder OMRON photoelectric rotary encoder
Quality method test range 0.1-300g/10min
Volume method test range 50-5000cm3/10min (up to 5000 cm3/10min can be



measured by using the plugging die)



High-end Automatic Plastic Melt Flow Indexer Melt Flow Rate MFI MVR Tester 0

High-end Automatic Plastic Melt Flow Indexer Melt Flow Rate MFI MVR Tester 1
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.

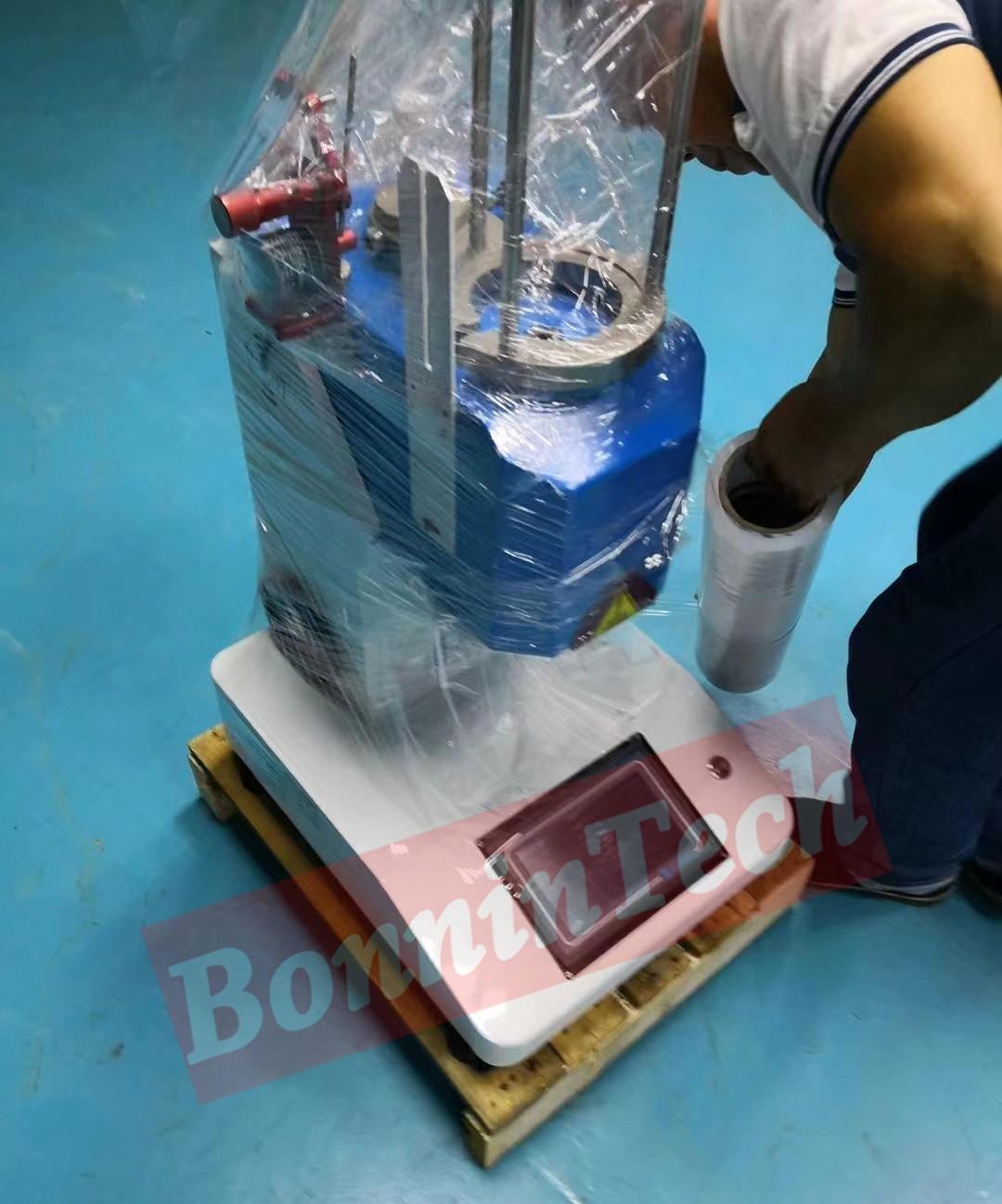

Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
