YG812E Textile Fabric Hydrostatic Pressure Head Tester ISO811 AATCC 127

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: YG812E
Minimum Order Quantity: 1 set
Price: USD5000-10000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Keywords: Fabric Hydrostatic Pressure Head Tester Force Range: 100Pa~50kPa, 500Pa~200kPa
After-sales Service: Provide

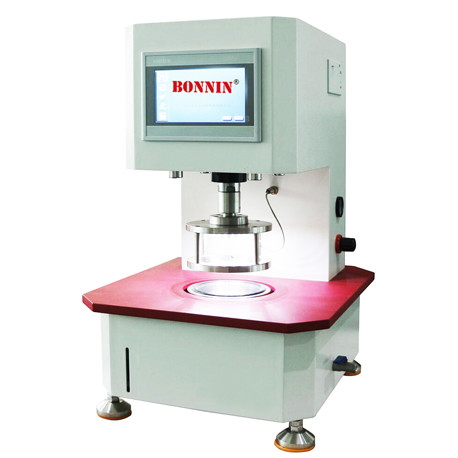

YG812E Textile Fabric Hydrostatic Pressure Head Tester ISO811 AATCC 127



YG812E Textile Fabric Hydrostatic Pressure Head Tester is used to measure the water resistance of various fabrics (such as coated fabrics, tent fabrics, non-woven fabrics, membrane materials, rainproof clothing fabrics and geotextile materials, etc.) that have undergone waterproof treatment.

It complies with GB/T 4744,ISO811,AATCC 127,DIN 53886,JIS L 1092.



Characteristics

Technical indicator

  1. Main technical indicators:
Model Measuring range Accuracy Water pressure rise rate Specimen head area
-5 model 100Pa~50kPa 0.2%F.S (1~100)kPa/min 100cm²
-20 model 500Pa~200kPa (1~100)kPa/min
-50 model 1kPa~500kPa (1~100)kPa/min 7.8cm²(optional)
-100 model customized



  1. Pressure display resolution: 0.01kPa
  2. Sensor test accuracy: ≤1% (5% to 100% within the full range of a single sensor)
  3. Experimental area: 100cm², 7.8cm² (optional)
  4. Pressurization rate: 1kPa~100kPa/min (stepless adjustable)

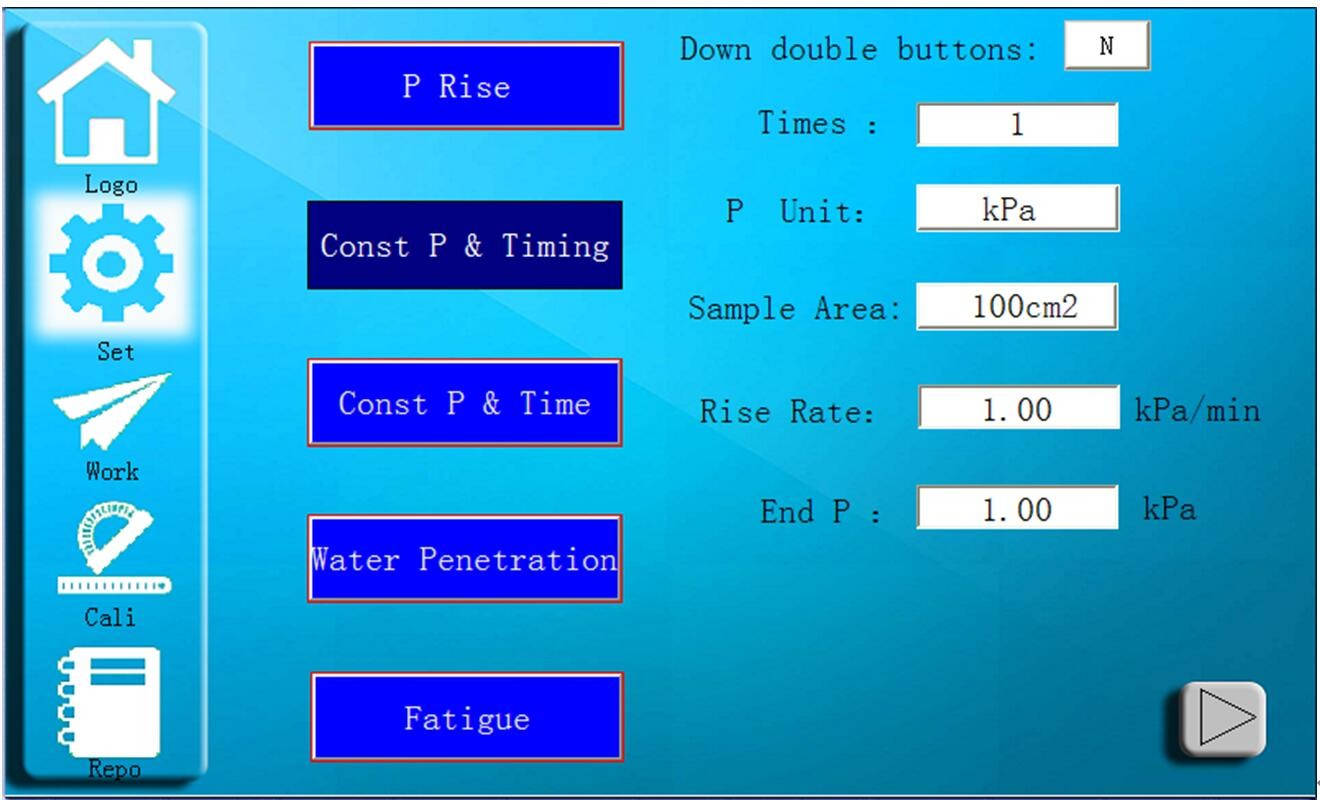

  5. Working mode: supercharging method, constant pressure timing, constant pressure timing, water seepage and leakage, deflection experiment
  6. Display mode: color screen in Chinese and English
  7. Printer: thermal miniature printer
  8. Dimensions: 500×440×680mm
  9. Weight: 70kg
  10. Power supply: AC220V 50Hz 500W



YG812E Textile Fabric Hydrostatic Pressure Head Tester ISO811 AATCC 127 0

YG812E Textile Fabric Hydrostatic Pressure Head Tester ISO811 AATCC 127 1







YG812E Textile Fabric Hydrostatic Pressure Head Tester ISO811 AATCC 127 2

YG812E Textile Fabric Hydrostatic Pressure Head Tester ISO811 AATCC 127 3
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
