ASTM D3786 Diaphragm Bursting Strength Testing Machine Textile Fabric Bursting Tester

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: YG032E
Minimum Order Quantity: 1 set
Price: USD5000-10000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Keywords: Textile Fabric Bursting Tester Force Range: 2.00Mpa, 10.00Mpa

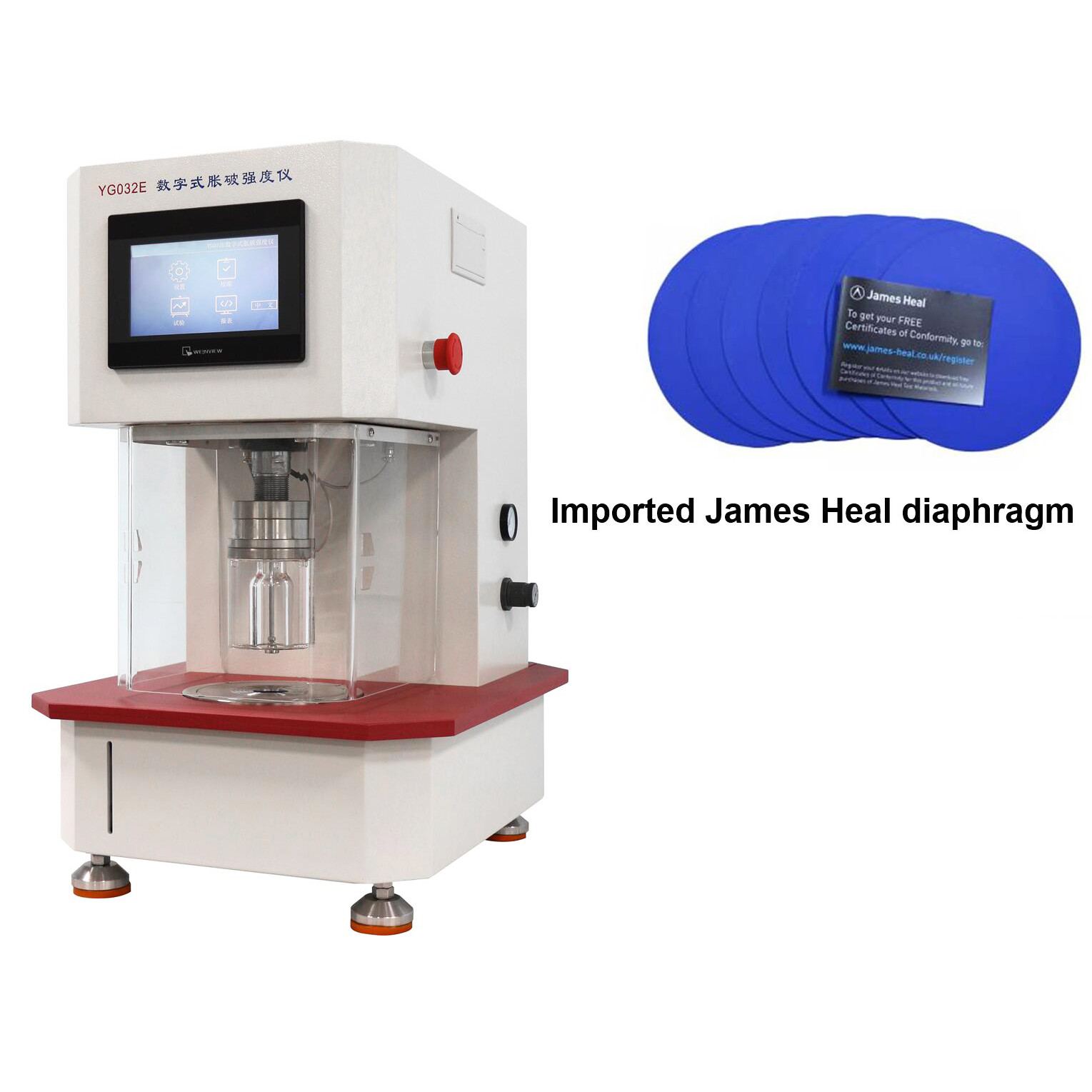

ASTM D3786 Diaphragm Bursting Strength Testing Machine Textile Fabric Bursting Tester



YG032E fabric bursting strength tester is a powerful, multi-industry instrument that has been extensively re-designed with a modern look and a range of new features that inherently make it possible to test a wide range of materials including textiles, nonwovens Cloth, paper, cardboard, plastic and medical products.



Standards:

GB / T 7742 Textiles - Bursting properties - Part 1: Determination of burst strength and expansion of textile fabrics.

ISO 13938.1, FZ / T 60019, FZ / T 01030, ASTM D3786, BS 4768, WOOLMARK 29, WSP 30.1, JIS L 1018.6.17



Instrument Features:

1, using hydraulic method, in line with the international standard.

2, touch screen control, the interface is simple and easy to understand, easy to operate intuitive, touch sensitive.

3, pneumatic clamping, clamping evenly, and adjust the fixture pressure, to avoid the sample slip or damage, easy to use.

4, the test cover for the high transparent plexiglass, built-in LED lighting, can clearly observe the experimental sample process. Which is a magnet Installation, replacement easy disassembly.

5, automatic induction blasting system, sensitive and reliable.

6, outside the organic glass cover, to prevent the folder wounding, the use of more secure.

7, the use of AC servo drive system, synchronous pulley drive, the instrument running low noise, wide speed range, high operating accuracy.

8, the use of high-speed AD and processor, sampling frequency is high, high test accuracy.

9, the only domestic: fixed speed burst, set pressure, set the expansion, set the time of four test methods.

10, the instrument comes with a thermal printer can print directly report, and support with professional computer software online work.



Technical Parameters:

Model -2 -10
Test range 2.00Mpa 10.00Mpa
Minimum scale value 0.001Mpa 0.003Mpa
Measuring range full scale 1% ~ 100%
Pressure accuracy ≤ 0.2% FS
Accuracy of expansion height ≤ 0.2% FS
Test area

7.3 cm² (dia.30.5mm), 10 cm² (dia.35.7mm)

50 cm² (dia. 79.8 mm), 100 cm² (dia. 112.8 mm)

The maximum expansion 75
Pressure rate 20-600ml / min
Pressure units kPa, kg / cm2, bar, lb / in2
Power AC220V / 50Hz
Dimensions

550 × 450 × 700mm





ASTM D3786 Diaphragm Bursting Strength Testing Machine Textile Fabric Bursting Tester 0

ASTM D3786 Diaphragm Bursting Strength Testing Machine Textile Fabric Bursting Tester 1







ASTM D3786 Diaphragm Bursting Strength Testing Machine Textile Fabric Bursting Tester 2

ASTM D3786 Diaphragm Bursting Strength Testing Machine Textile Fabric Bursting Tester 3
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
