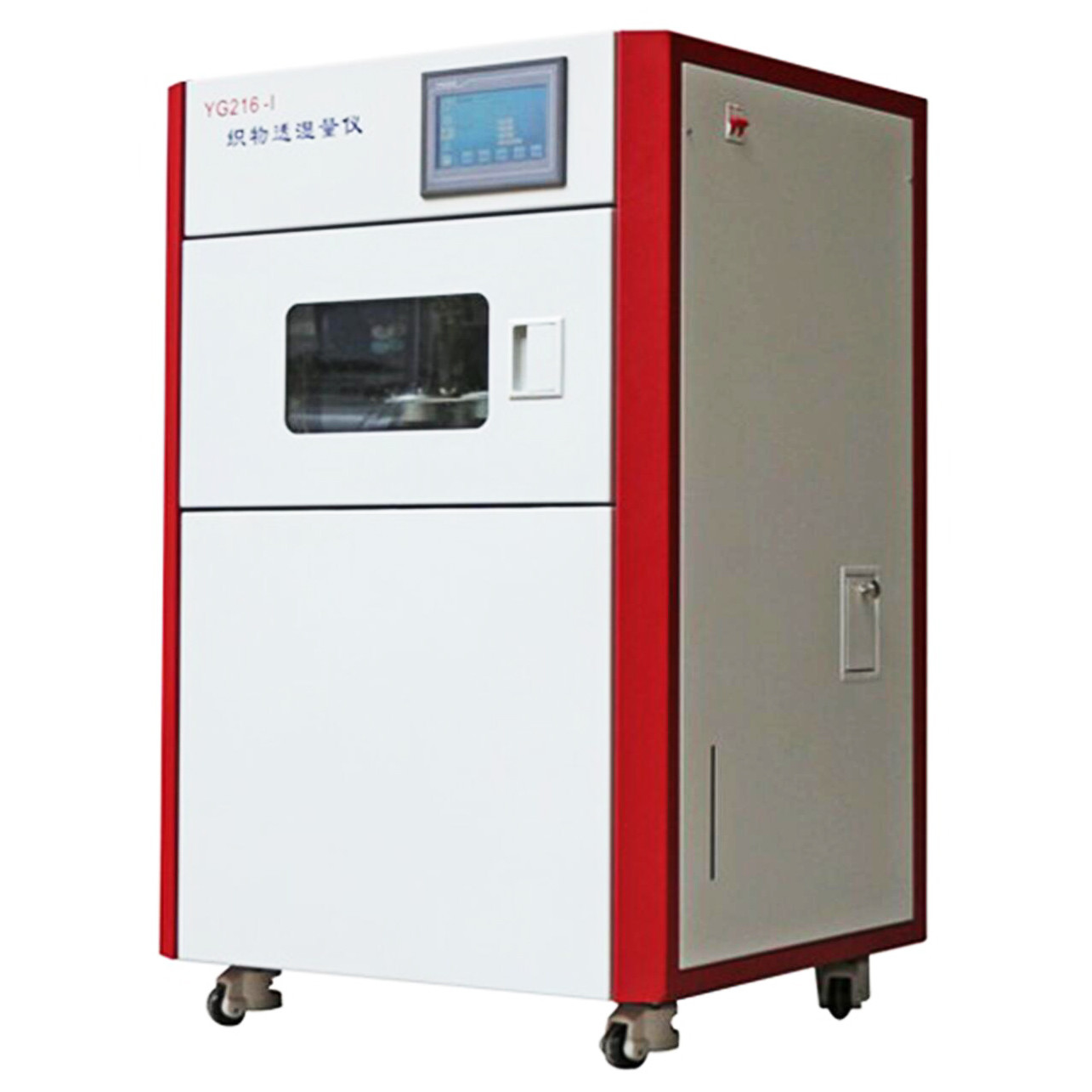

ASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester YG216

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: YG216
Minimum Order Quantity: 1 set
Price: USD5000-9000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Test Cups: 8 CUPS, 16 CUPS, 24 CUPS Test TEMP: RT~50℃

Textile Fabric Water Vapour Permeability Testing Machine / Water Vapor Transmission Testing Machine,

ASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester YG216

ASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester

ASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester

YG216 Fabric Moisture Permeability Tester, Water Vapour Transmission Permeability Tester



Application scope:
Used for moisture permeability test of various fabrics, film materials and coated fabrics.



Standards:
GB/T12704, ASTME96, JISL1099, BS 7209



Instrument features:
1, apply a variety of standards and measurement methods.
2. Rotary sample holder, adjustable speed, uniform test than fixed sample holder.
3, the wind speed is adjustable, the use of imported wind speed sensor calibration, speed accuracy and stability.
4, temperature and humidity control using PID algorithm, small fluctuations, effectively prevent temperature and humidity overshoot; with temperature and humidity calibration function, can well avoid the sensor bias caused by long-term use.
5, high-precision temperature and humidity sensors, test data stability, high precision.
6, SCM control, color touch screen operation, modular design, temperature and humidity digital settings, intelligent control, real-time display of temperature and humidity and time.
7. Input parameters in the color touch screen to calculate WVT, WVP and PV values.
8, the instrument is equipped with PC software, can record temperature and humidity curve, easy to calculate and print a large number of data reports.



Technical Parameters:

Model

YG216-I

YG216-II

Water vapour permeability cups

1 layer, 8pcs

2 layers, 8pcs/layer

Test chamber temperature

RT~50

Resolution

0.1

Accuracy of temperature

±0.5

Weighing function

No

Testing method

Upright cup method

Humidity of testing chamber

40%RH~95%RH

Resolution

0.1%RH

Accuracy of humidity

±1%RH

Testing time

0.1~999.9h (can be changed into “min”)

Speed of circulating air

0.1~0.8m/s



ASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester

ASTM E96 Textile Fabric Water Vapour Transmission Permeability TesterASTM E96 Textile Fabric Water Vapour Transmission Permeability TesterASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester

ASTM E96 Textile Fabric Water Vapour Transmission Permeability TesterASTM E96 Textile Fabric Water Vapour Transmission Permeability TesterASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester



ASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester YG216 9

ASTM E96 Textile Fabric Water Vapour Transmission Permeability Tester YG216 10
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
