| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | HK-310C |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-5800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Equipment: | Offset Printing Ink Proofer | Color Effective Area: | 40mm X 220 Mm (4 Strips) |
|---|---|---|---|
| Printing Roller Width: | 225mm | Warranty: | 12 Month, Life-time Technical Support |

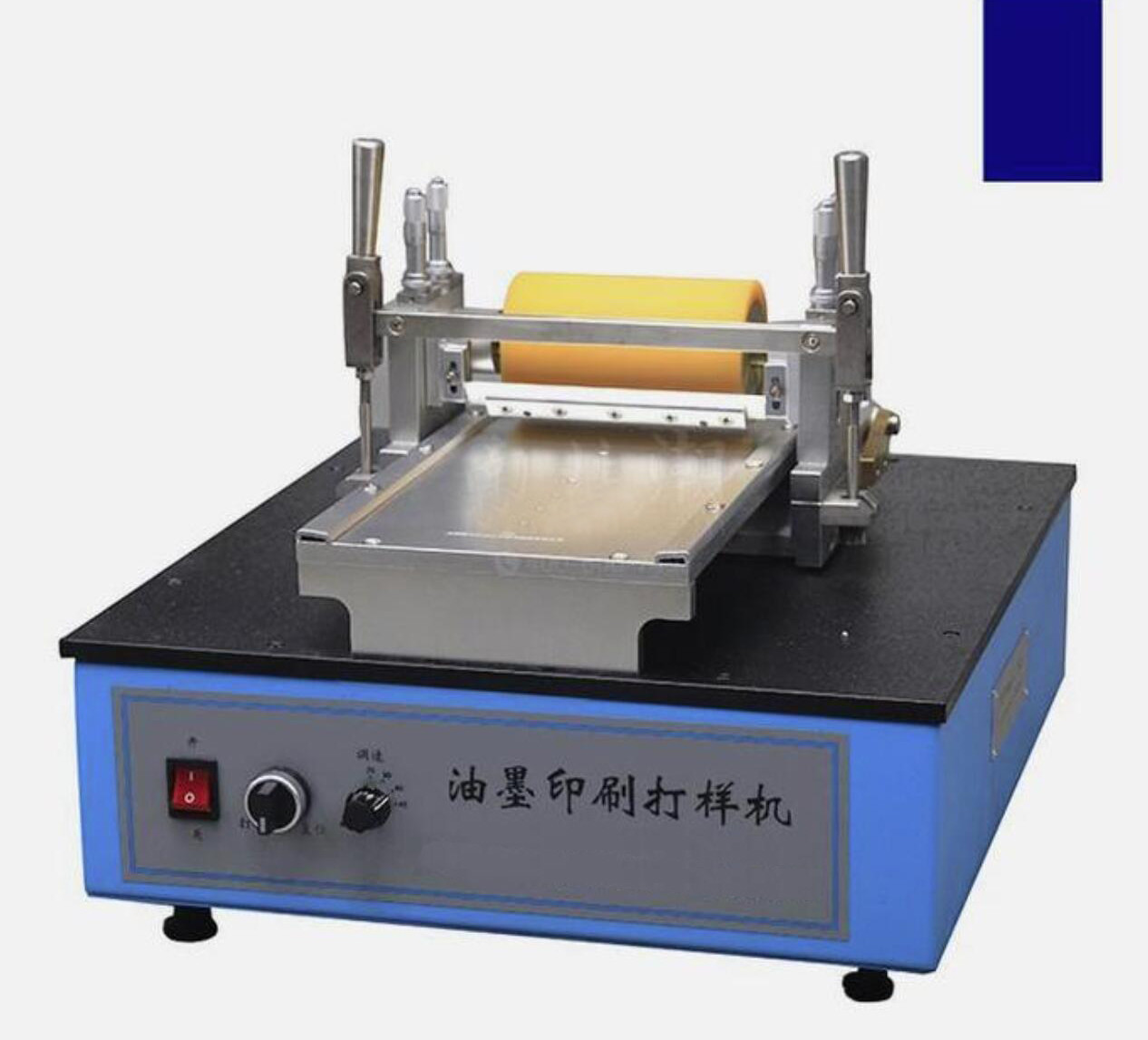

HK-310C Hot Selling Gravure Ink Printing Proofer Gravure Ink Proofer
HK-310C Gravure ink proofer can print gravure inks quickly under the experiment condition,and the method is closed to the actual printing. The gravure ink proofer is used to laboratory production,ink printability test and ink product research.It adopts flat intaglio printing work directly for quick proofing in a varity of flexible substrates(such as plastic film,paper,etc.).It is so easy to operate.The machine is supplied with a special version of the gravure proofing.
Purpose:
(1) It is suitable for the production of printed samples and computer color matching samples that require good reproducibility.
(2) Make the company's own product color chart.
(3) Research and development of ink products.
(4) Inspection of incoming ink
Scope of application:
1. The laboratory quickly prepares the gravure ink coating sample
2. Simulate the actual printing method
3. With engraving intaglio, a variety of optional styles are available
4. Suitable for all kinds of flexible proofs (film, paper, etc.)
Technical Specification:
| Electrical Power Source | 20V/50HZ |
| Random gravure | 150 lines/inch (A, B, C, D version are optional) |
| Sample size | 120*240mm (recommended) |
| Weight | 26kg |
| Concave sample range | 95×149mm |
| Roll/Hardness | 76*130mm/shoreA55 |
| Printing Speed | 20/30/40/45m/min (four gears optional) |
| Printing Length | 95*149mm |
| Dimension | 500*400*350mm |
Standard configuration:
Host machine *1
Accessories:
Proofing version *1 piece
Scraper*1
Power cord *1 piece
Instruction manual *1
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
