23L Paper Making Pulp Laboratory Beating Valley Beater Stainless Steel

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-8049
Minimum Order Quantity: 1 set
Price: USD5000-8000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: Valley Pulp Beater Standard Slurry Capacity: 23 Liters, Pulp Volume: 47 Liters
Amount Of Pulp: 200g ~ 700g Dry Pulp (standard Amount: 360 Grams Of Dry Pulp, Concentration: 1.57%) Ideal Slurry Into The Pool Size: Less Than 25 * 25mm Warranty: 12 Month, Life-time Technical Support
High Light:

Pulp Laboratory Beating Valley Beater

,

23L SS Valley Beater

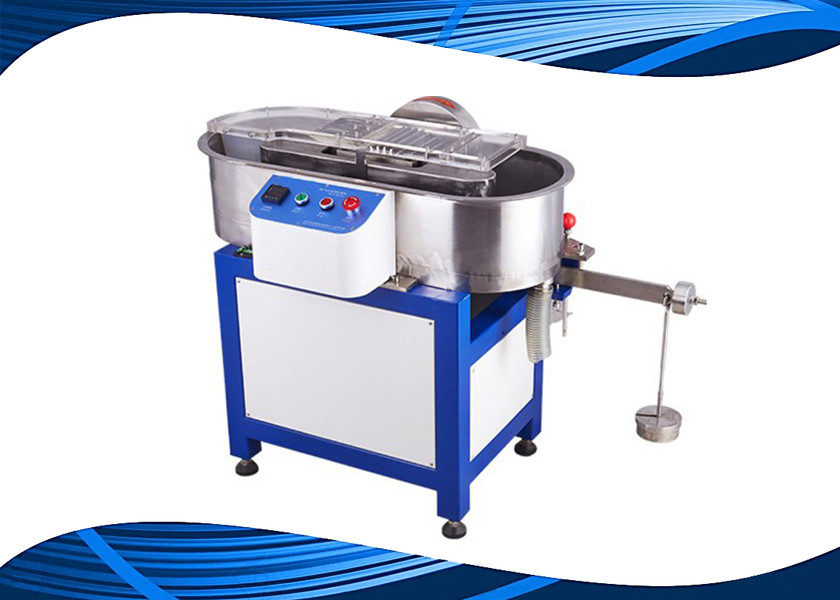

23L Paper-Making Pulp Laboratory Beating Valley Beater Stainless Steel



BN-8049 Valley type pulp beater is a paper-making laboratory international standard equipment, is to study the pulp and paper processing necessary equipment, the aircraft through the knife roll and the knife produced by the mechanical force, the various fiber slurry cutting, crushing, rubbing, split, run up and fiber refinement, while the fiber cell wall displacement and deformation, the primary wall and the outer wall of the wall of the rupture. According to the end of the knife pressure and beating time, you can get different degrees of pulp and other changes, Valley beater is widely used in a variety of plant fiber, synthetic fiber, carbon fiber, glass fiber beating test, paper production testing, quality control, process development, teaching and research experiments.



BN-8049 Valley pulp beater meets the standard requirements ISO 5264 / I, TAPPI-T200 and GB7280-87 Pulps-laboratory beating-Valley beater method. Which models can change the heavy thallium pressure, beating time, and automatically control the beating time, to get different experimental results.



Technical parameters:

Model BN-8049
Standard slurry capacity 23 liters, pulp volume: 47 liters
Pulp warning With the pool water level warning, the minimum water warning 2L.
The amount of pulp 200g ~ 700g dry pulp (standard amount: 360 grams of dry pulp, concentration: 1.57%) ideal slurry into the pool size: less than 25 * 25mm
Flying knife roll size Φ194MM × 155MM
Flying knife roll speed Standard beating speed (8.3 ± 0.2) r / s; (500 ± 10) r / min
Flying blade Thickness of 4.7mm, 32 tablets
Bottom blade Thickness of 3.2mm, 7 tablets
Lever arm load (54 ± 1) N
Slurry diversion groove Flat concave slurry diversion structure (domestic are convex type), to improve the effect of slurry diversion.

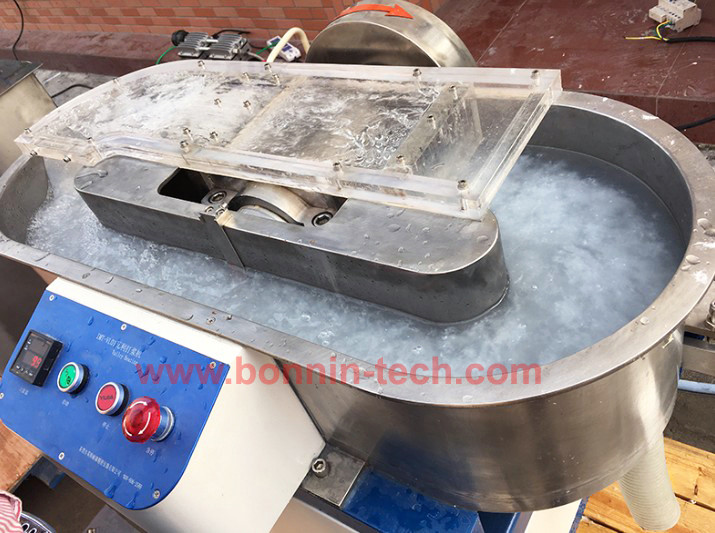

Slot cover Short distance 145 degrees transparent composite cover, easy to observe the real-time beating fluid, easy to pulp cleaning and blade cleaning (180 degrees is not convenient for manual cleaning).
Noise muffler The slurry outlet is equipped with a noise silencing device to reduce the noise during beating.
Power supply 750W / 380V
Dimensions 1240 mm x 650 mm x 1180 mm
Weight

200Kg



23L Paper Making Pulp Laboratory Beating Valley Beater Stainless Steel 023L Paper Making Pulp Laboratory Beating Valley Beater Stainless Steel 123L Paper Making Pulp Laboratory Beating Valley Beater Stainless Steel 2



23L Paper Making Pulp Laboratory Beating Valley Beater Stainless Steel 3



23L Paper Making Pulp Laboratory Beating Valley Beater Stainless Steel 423L Paper Making Pulp Laboratory Beating Valley Beater Stainless Steel 5

23L Paper Making Pulp Laboratory Beating Valley Beater Stainless Steel 6
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
