| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | SGW-810, SGW-820 |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-8000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Display: | English Touch Screen | Instrument Light Source: | C Light Source(6447K) |
|---|---|---|---|
| Measuring Range Transmittance: | 0%-100.00% | Warranty Time: | 12 Months And Life-time Technical Support |
| Highlight: | Digital Transmission Hazemeter,ISO Transparency Transmission Haze Meter |
||

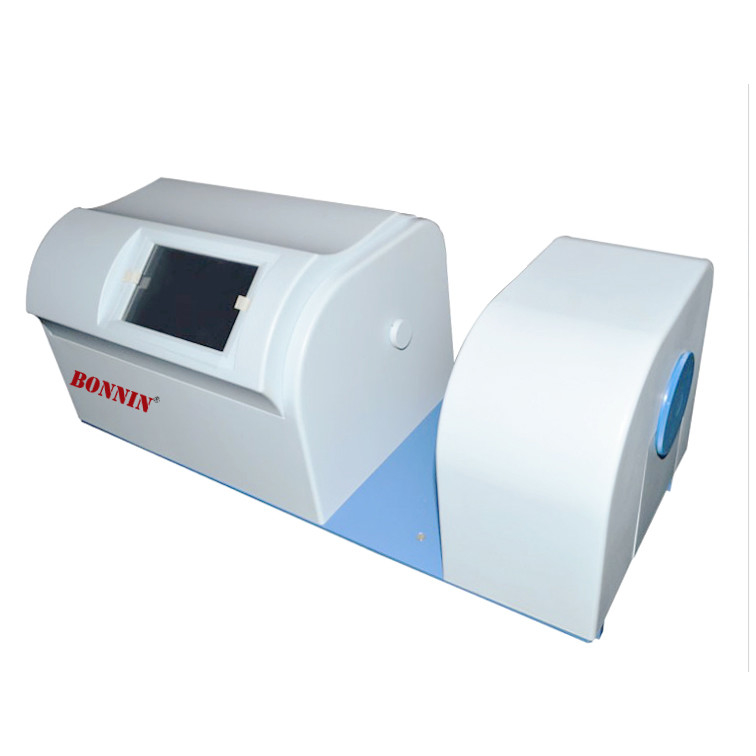

The Digital Haze Tester is based on the National Standard GB/T2410-2008 "Transparency and Haze Test Methods for Transparent Plastics" of the People's Republic of China and the Standard Test Method for Haze and ASTM D1003-61 (1997). "Luminous Transmittance of Transparent Plastice" is a computerized automatic measuring instrument designed to measure the transmittance and transmission haze of all transparent and translucent parallel planes (plastic plates, sheets, plastic films, flat glass). It has a wide range of applications in defense scientific research and industrial and agricultural production.
It meet the test standards such as GB/T2410-2008, ASTM D 1003-61 (1997), JIS K7105-81 and are conducive to technical exchanges at home and abroad.
Instrument features:
Parallel lighting, hemispherical scattering, and integrating sphere photoelectric receiving method.
Using microcomputer automatic operating system and data processing system, no knob operation, easy to use. Up to 2000 sets of measurement result data can be saved, U disk storage function and standard USB interface to establish communication with PC.
The transmittance results are directly displayed to 0.01% and the haze is displayed to 0.01%.
Due to the use of the modulator, the instrument is not affected by the ambient light, and it is not necessary to use a dark room, which ensures the accuracy of large sample measurement.
With thin-film magnetic fixtures and liquid sample cups, it brings great convenience to users.
A piece of haze is attached randomly, which makes it easy to check the function of the instrument at any time. (Note: The haze cannot be rubbed, it can be blown with a blow ball).
Technical Parameters:
| Instrument model | SGW-810 |
| Instrument light source | C light source(6447K) |
| Measuring range | Transmittance 0%-100.00% |
| Haze 0%-100.00% (0%-30.00% Absolute measurement) | |
| (30.01%-100% Relative measurement) | |
| Minimum indication | Transmittance 0.01%, Haze 0.01% |
| Accuracy | Transmittance≤1% |
| When haze<0.5%, ≤±0.1%; when haze>0.5%, ≤±0.3% | |
| Repeatability | Transmittance≤0.5% |
| When haze≤0.5%, 0.05%; When haze>0.5%, 0.1% | |
| Sample window | Into window Φ25mm out window Φ21mm |

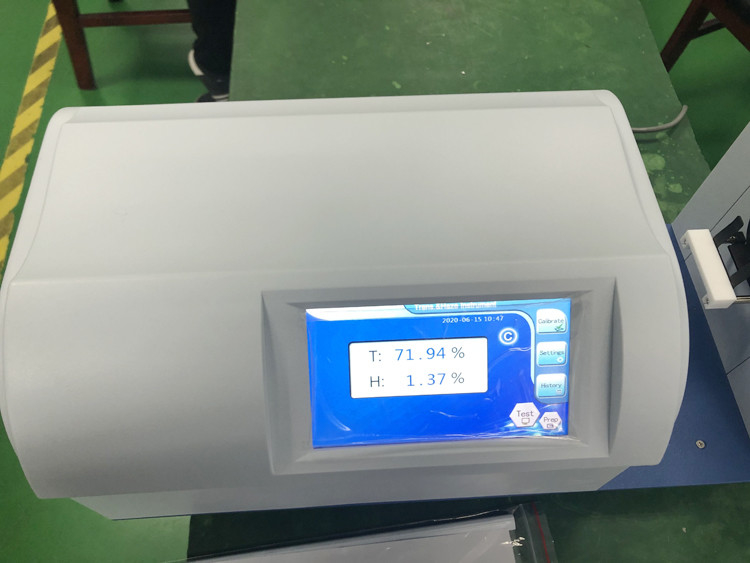

| Display method | 7 inch color touch screen |
| Communication Interface | USB/Udisk |
| Data storage | 1000 groups |
| power supply | 220V±22V,50Hz±1 Hz |
| Instrument size | 74omm ×230mm× 300mm |
| Instrument net weight | 21kg |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
