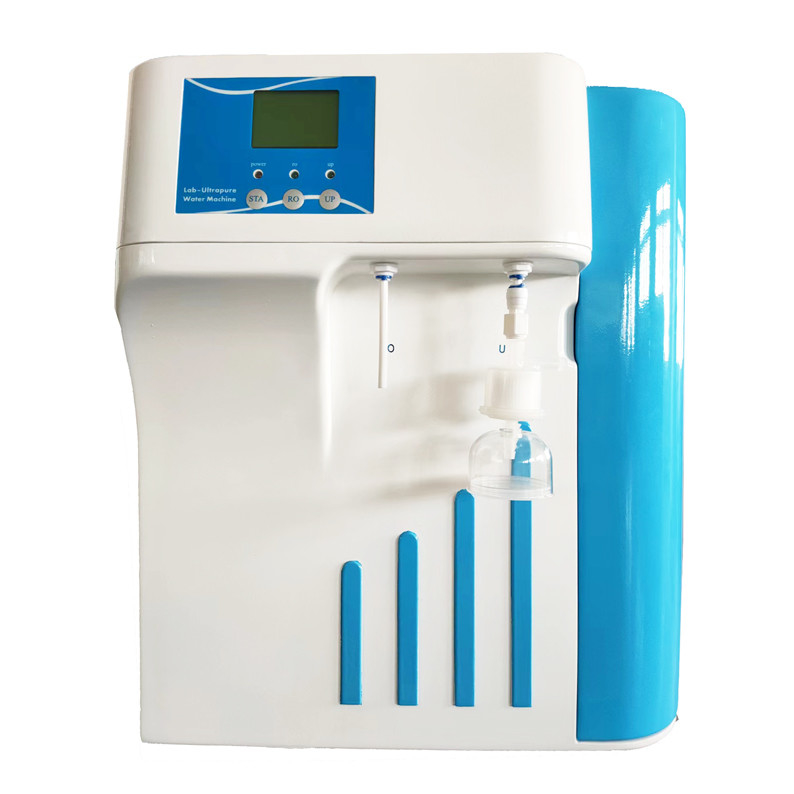

Ultra Pure Water Purification System 30L/H Output 1.5-2L/Min Flow rate

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: UP Series
Minimum Order Quantity: 1 set
Price: USD2000-8000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Product Name: UltraPure Water, Deionized Water System Flow Rate: Up To 2 Liters/minute (with Pressure Tank)
Pure Water Outlet: Ultrapure, Deionized Water Display: English Color Touch Screen
High Light:

Ultrapure Water Purification System 30L/H

,

2L/Min Ultrapure Water Purification System

30L/H Ultra Pure Water Purification System Water Treatment Water Purification Machines



High-sensitivity ICP/MS, PCR, ppt-level analysis, isotope analysis, molecular biology, life sciences, cell culture, IVF, HPLC, TOC, VOC, GC/MSAnalysis, drug development, medical inspection, disease control centers, drug testing institutes, quality inspection institutes, university research and other standard laboratories and various high-end precision instruments.



Features:



1. Inbuilt 10um 316 stainless steel washable filter, remove minor impurities, can replace PP cotton filter, automatic cleaning anytime



2. KDF unit with USA filteriing material, pre-filtering residual chlorine, heavy metal, restrain fungus growing, protect the postpositional purification system from dissipation to lengthen ultra purified column lifetime.



3. Inbuilt transparent pressure barrel which with changable water storing pouch inside, technologies of nano-antibacterial and UV resistant are adopted to the pouch for reducing creature bacteria abnormal smell and decreasing chemicals like nitrite, prevent water in barrel from sencondary pollution.

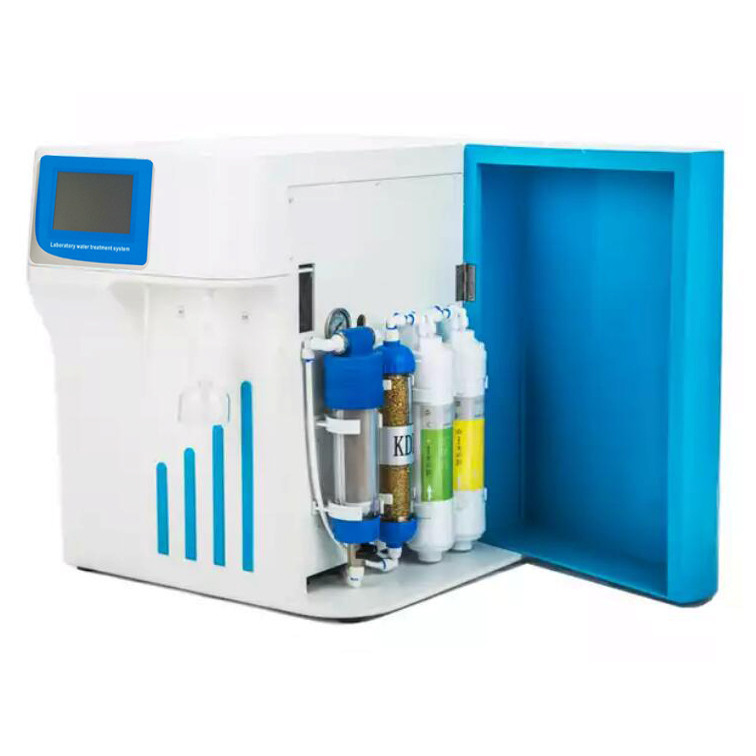

4. Spraying process for machine case, openning at side, 11'' type U korean quick-insert filtration column--easy for exchange and repair.



5. LCD for online monitoring dual water purity, display both RO water conductivity UP water resistivity, machine running status also can be shown.



6. Menu operation interface, various measured parameters can be modified and set, multiple running status display and indicating light alert, timely reflect machine operating condition such as high pressure-stop, low pressure-alert, water full-stop etc.



7. RO & ulrapure Water purity exceeding alarm, automatically remind filter elements replacement; setting water colletion time, drawing water via touching key. RO and UP water drawing indicating light automatically prompt.



8. Equipped with portable test pen for testing TDS content, conductance and water temperature.



9. Pipeline with quick-insert connector ( NSF certificate), dual-wavelength UV lamp for sterilization & decreasing TOC, original imported 5000 dalton ultra filtering element for removing endotoxin and heat source.





Filtration Flow Chart:

Automatic Laboratory Use Low TOC Ultrapure Water System



Technical datas:



Model No. UP-S UP-V UP-F UP-VF UP-Extract UP-Extract-V UP-Extract-F UP-Extract-VF
Water Source Urban tap water,inlet pressure 0.15-0.4 Mpa, water temperature 5-40 dgree centigrade RO water, deionized water or distilled water etc.
Output 10/20/30L/H 60-90L/H
Flow rate 1.5-2L/Min ( with pressure barrel)
Purity Pure water: desalination rate 95%-99% ( with new RO membrane) Ultrapure water: Resistivity 18.25MΩ.cm@25 degree centigrade, TOC less than 10ppb, particle(more than 0.22 um) less than 1/ml, microbe less than 1cfu/ml
Power supply 220V 50HZ, 120W
Dimension L47*W45*H55cm
Application UP & UP-Extract: Physical-chemical test,biochemical analysis, blood test, microanalysis, dedicated flushing, HPLC, IC, GC analysis experiment
UP-V&UP-Extract-V: Atomic absorption/emission spectra, mass spectrometry, TOC test, environment monitoring, biochip developing,micro-organics analysis
UP-F&UP-Extract-F: High sensitivity ICP/MS,PCR,PPT grade analysis, isotope analysis,molecular biology, life sciences, disease control center, medicine inspect insitute, quality inspect institute, high-school sicentific research, various high precision instruments
UP-VF& UP-Extract-VF: Molecular biology, life sciences,gene study,cell culture,amino acid analysis,protein purification, toxicology study, drug R&D, medical inspection





Configurations:

Automatic Laboratory Use Low TOC Ultrapure Water System



Ultra Pure Water Purification System 30L/H Output 1.5-2L/Min Flow rate 2Ultra Pure Water Purification System 30L/H Output 1.5-2L/Min Flow rate 3

Ultra Pure Water Purification System 30L/H Output 1.5-2L/Min Flow rate 4

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
