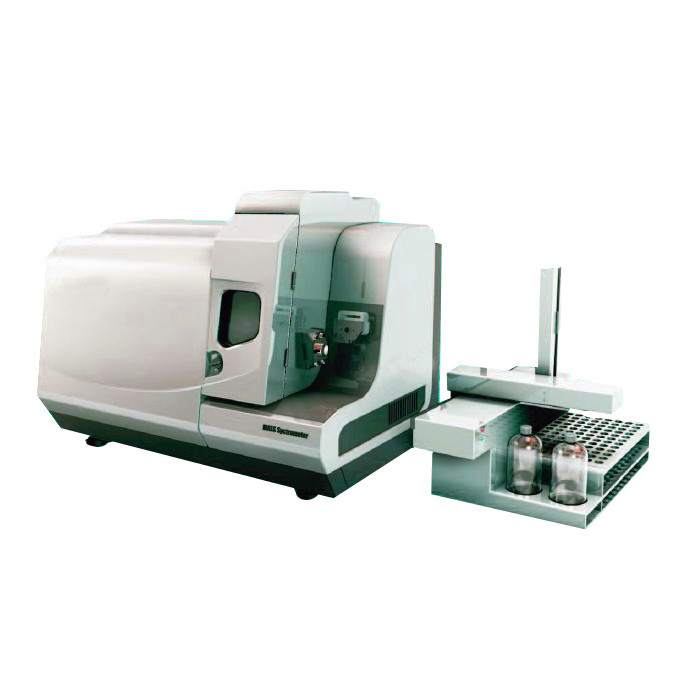

ICP-MS01 Seawater Water Chromatography Instruments Inductively Coupled Plasma Mass Spectrometry

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: ICP-MS01
Minimum Order Quantity: 1 set
Price: USD80000-128800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Product Name: GC-MS Mass Spectrometry Mass Range: 2~255 Amu
Sensitivity: Be≥2×106 ; In≥35×106 ; U≥30×106 Unit(cps/mg/L) Display: PC Software Controlled
High Light:

ICP-MS01 Chromatography Instruments


Water Chromatography Instruments


seawater Coupled Plasma Mass Spectrometry

Inductively coupled plasma mass spectrometry (ICP-MS), popularized since 1980's, is a new technique for micro-(10-6), trace-(10-9), and ultra-trace-scale (10-12) element analysis with a variety of advantages, such as applicable to analyze the majority in the periodic table of elements, low detection limit, wide linear (dynamic) range, low interference, high accuracy, high speed and isotopical analysis.
ICP-MS01 is the first industrialized inductively coupled plasma mass spectrometer in China with its performance reaching China national standard. It meets customer demands and has high performance-price ratio. ICP-MS01 is widely applied to environmental protection, food hygiene, semiconductor, pharmaceutical and nuclear industries.
ICP-MS01 specifies outstanding performance and accurate analysis. Self-developed consumables are of satisfactory cost(reasonably priced). Also, we provide excellent post-sale service: on-site maintenance and timely follow-up.


Inlet: Open modular sample introduction system with externally mounted atomizer is able to locate automatically.
Torch Alignment: X, Y and Z axes are accurately PC-controlled, with all the adjusted parameters saved in analysis methods.
Advanced plasma shielding: greatly improving sensitivity and limits of detection of light elements (down to ppt level)
Valve gate: PC-controlled valve to retain vacuum, facilitate assembly, disassembly and cleaning of the sampling and skimmer cones when vacuum system is on.
Ion lens: Hexapole ion guide can transmit ions in full mass range efficiently with automatic ion focusing and tuning. Asymmetrical installed lens in vacuum chamber are easy to assemble and disassemble.
Detector: ETP dual-mode detector, discrete dynode electron multiplier, no need to switch on digital/analog modes.
Vacuum chamber: no wire connection. Each module adopts asymmetric and plug-in set.
Power-off protection: automatically shut down to protect the system in case of unexpected power failure.
Software: providing automatic control of instrument and accessories. Windows 2000/XP/vista/win7(32 bit or 64 bit) professional operation system.

Technical Specifications:
Mass range:2~255 amu
Sensitivity: Be≥2×106 ; In≥35×106 ; U≥30×106 unit(cps/mg/L)
Detection limit: Be≤10;In ≤2;U≤2 unit(ng/L)
Resolution:0.6~0.8 amu
SNR(Signal to Noise Ratio):≥50×10^6
background noise:≤2 cps(all mass number range)
stability RSD: short period≤3%;long time≤4%
oxide ion:CeO+/Ce+≤3%

Applications fields:
1.Environmental protection: drinking water, seawater, water resources, food, hygiene and disease control, goods inspection, etc.
2.Semiconductor industry: high pure metals, high pure reagents, ultratrace impurities of Si chips, photoresists, etc.
3.Pharmaceutical and physiological analysis: medical research on hair, blood, serum, urine, biological tissues etc., for example, testing Pb in whole blood.
4.Nuclear industry: nuclear fuel radioisotopes, pollution of primary cooling water etc.
5.Other fields: chemical industry, petrochemical industry, geology, etc.


ICP-MS01 Seawater Water Chromatography Instruments Inductively Coupled Plasma Mass Spectrometry 0


ICP-MS01 Seawater Water Chromatography Instruments Inductively Coupled Plasma Mass Spectrometry 1ICP-MS01 Seawater Water Chromatography Instruments Inductively Coupled Plasma Mass Spectrometry 2

ICP-MS01 Seawater Water Chromatography Instruments Inductively Coupled Plasma Mass Spectrometry 3

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
