30 Minutes Cycle Automated Nucleic Acid Extraction System RNA DNA

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: AutoPure-96
Minimum Order Quantity: 1 set
Price: USD21000-25000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Sample Capacity: 1~96 Sample Volume: 50~1000ul
Extraction Time: 15~40 Minutes / Cycle Display: 10 Inch English Touch Screen
Sterilization Method: UV Sterilization Lamp Plates Type: 96 Deepwell Plate+magnetic Sleeve
High Light:

OEM Nucleic Acid Extraction System

,

automated rna extraction system ODM

,

DNA Extraction Machines 1000ul

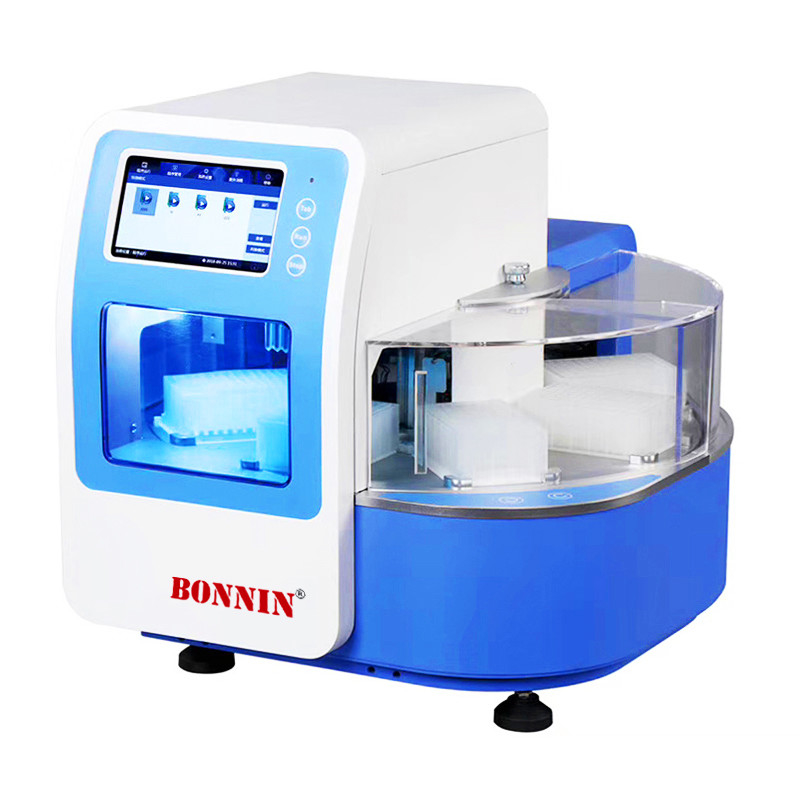

AutoPure-96 Full Automated Rotary Nucleic Acid Extraction and Purification System



AutoPure-96 BonninTech Full Automated Nucleic Acid Extraction and Purification System is an easy-to-use benchtop instrument that automates the nucleic acid extraction process for contamination and impurity testing without hands-on. The instrument using magnetic beads separation technology from blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples, to purify and extract nucleic acid and protein efficiently and stably.



Operational advantages

High-throughput

AutoPure-96 can process 96x1ml samples simultaneously

2. Open and multiple functions design can be provided more methods for reagent optimization, and also a reliable choice

3. Touch screen interface and easy operation, parameters can be tuned based on experimental requirements

4. Accurate temperature control system ensures stability of purification performance

5. Patent structure design with center rotary table which makes it occupies smaller area of magnetic rod tip comb, which guaranteed stability and liability (Success rate >99.99%)



Antipollution measures

1. Avoid reagent splashing through drip shield plate and beads dried way controlled by software

2. Disposable consumables which can avoid cross contamination

Simple and intelligentized operation

1. Front door can be opened, you can stop it at any moment which is very convenient for reagent optimization and experimental status viewing

2. Start with self-check, equipped with power-off protection

3. 8-plate identification design guaranteed their target position, even though external forces exist

4. Automatic detection in case kit missing

5. With QR code identification, special reagent can be recognized, without setting program or obtaining protocols



Technical Data

Type AutoPure-96
Throughput 1~96
Process volume 50~1000ul
Collection efficiency >95%
Magnetic rod number 96
Purification accuracy 100 copy sample positive rate>95%
Stability CV<5%
Plate types 96 Deepwell plate
Healting for lysis tube Ambient temperature~120°C
Heating for elution tube Ambient temperature~120°C
Operation 7 inch color touch screen
Extraction steps Lysis, Sample binding, Washing and elution
Storage Capacity more than 100 programs
Protocol Management Create, edit, delete, protocol mode
Pollution Control UV light
Lighting Yes
Extension interface 4 standard USB port, built-in SD card
Exhaust Fan
Power Supply 450W
Dimensions 560×620×500mm
Weight 54Kg



Plastics
4x deep well 96 plate     1x 96 deep well tip comb       1x 96 elution plate

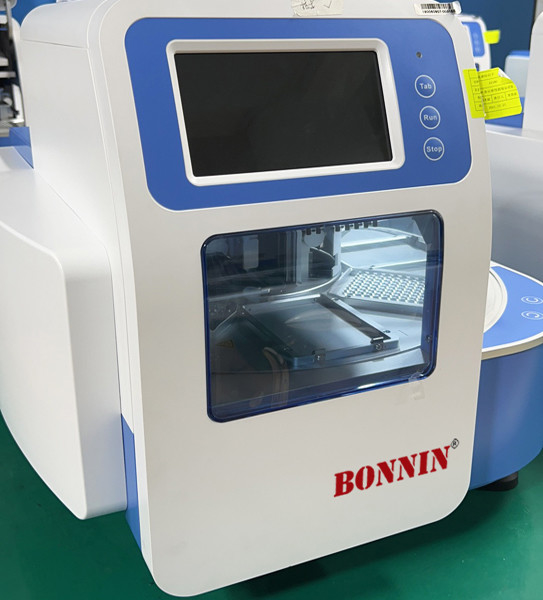

30 Minutes Cycle Automated Nucleic Acid Extraction System RNA DNA 0
30 Minutes Cycle Automated Nucleic Acid Extraction System RNA DNA 1

30 Minutes Cycle Automated Nucleic Acid Extraction System RNA DNA 2



30 Minutes Cycle Automated Nucleic Acid Extraction System RNA DNA 330 Minutes Cycle Automated Nucleic Acid Extraction System RNA DNA 4

30 Minutes Cycle Automated Nucleic Acid Extraction System RNA DNA 5

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
