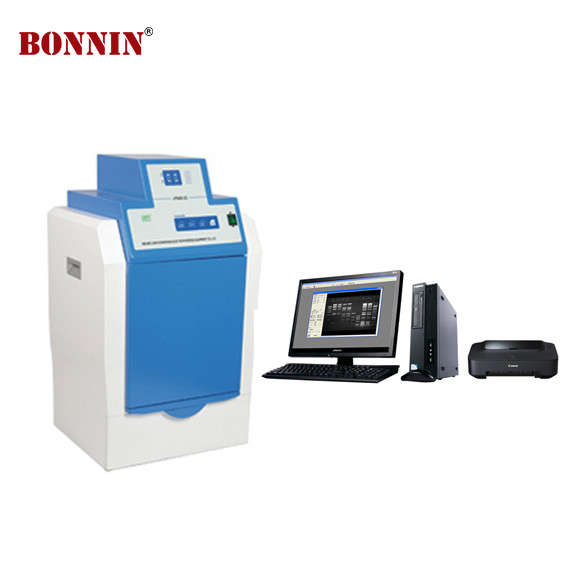

RS232 Laboratory Protein Western Blot Imaging System CCD Bonnin PCR Test Instruments

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: JY04S-3C, JY04S-3E
Minimum Order Quantity: 1 set
Price: USD3000-5800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Name: Automated Western Blot System Effective Pixels: 2560×1920
Pixel Size: 5.4×5.4(um) Resolution: 5.0 Megapixels
Warranty: 12 Month Warranty Time And Life-time Technical Support
Highlight:

RS232 western blot imaging system

,

western blot system CCD

,

Bonnin PCR Test Instruments

Laboratory Protein Western Blot System Gel Documentation Tracking System





The JY series gel documentation imaging analysis system is suitable for observation, shooting and analysis of gel bands after electrophoresis. With the help of a high-resolution CCD and a zoom lens, a weak electrophoresis band that is difficult for the naked eye to recognize is obtained, and a dedicated filter group is used to effectively filter out background interference noise while maximally controlling the contamination and ultraviolet rays of ethidium bromide (EB). Leak, realize simple and on-screen display, save, mark or edit the electrophoresis results, organize experimental reports, print, online transmission, etc., get rid of the cumbersome operation process of the experimenter, and achieve the incomparable effect of ordinary ultraviolet analyzer or film observation box.



Characteristic feature

• CCD with lower lux and high-resolution, easy to get dim stripes and real-time browse, whole-screen display and simple to operate:

• Six time zoom lens and simple to enlarge and shrink gel photos.

• The center position indicator, which can ensure the gel is placed in the center position.

• Intelligent control box:

• You can realize the control of the zoom, focus, aperture, UV light and white light through panel key.

• Safety function for your eyes that automatically shuts down the UV light when the door is opened and reactivates the UV light when the door is shut.

• Timed shut down: The UV light protection system automatically shuts down the lights after 15 minutes to maximize the life of lamp and vitreous.

• The zoom lens is protected with RS232 interface.

• Drawer-style gel platform, convenient to observe, operate, and cutting gel.

• Transferring plate changes UV-light into white-light.

• Using a multi-layer gel-filter effectively filters background noise.

• You can realize the control of the zoom, focus, aperture, UV light and white light through computer mouse.

• Regular and reliable system convenient to maintain and exchange parts.



Technical specifications

Effective pixels: 1280×1024

Pixel density: 10 bit

Pixel size: 5.4×5.4(um)

Resolution: 1.4 megapixels

Signal to noise ratio: ≥56db

Sensitivity: Can detect the double chain DNA of EB staining below 20pg.

Camera: low illumination and high resolution digital CCD

Zoom lens: F=1:1.2,2/3 inch 6 times zoom lens

Filter: 590(nm)

UV light transmission area(W×L): 250×200(mm)

Visible light transmittance area(W×L): 250×210(mm)

Transmission UV wavelength: 302(nm)

Reflectance UV wavelength: 254,365(nm)

Transmission UV lamp power:302nm(8W)

Reflectance UV lamp power: 254nm(11W),365nm(11W)

Volume(L×W×H): 470×405×820(mm)

Weight: 29kg



RS232 Laboratory Protein Western Blot Imaging System CCD Bonnin PCR Test Instruments 0RS232 Laboratory Protein Western Blot Imaging System CCD Bonnin PCR Test Instruments 1

RS232 Laboratory Protein Western Blot Imaging System CCD Bonnin PCR Test Instruments 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
