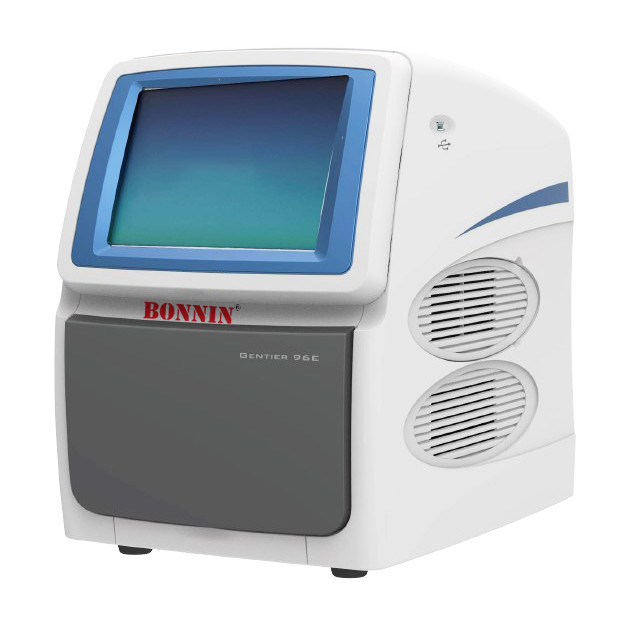

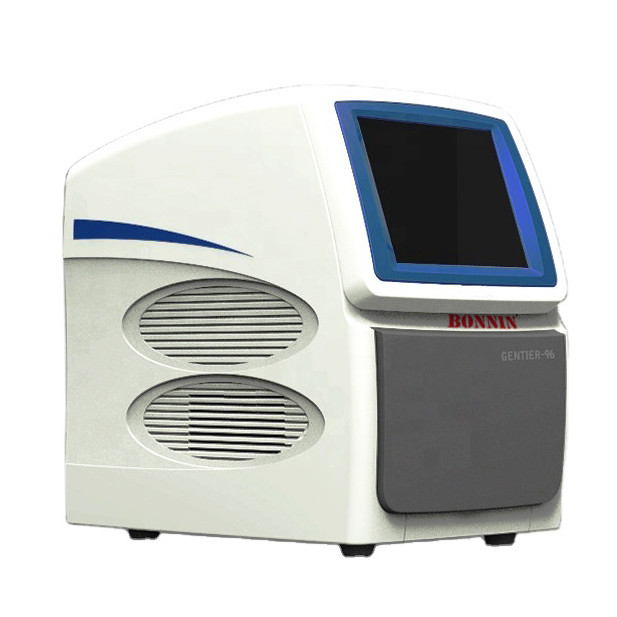

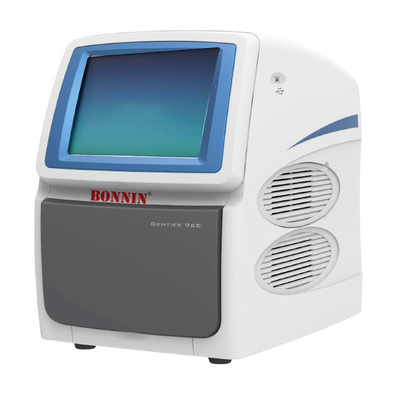

Gentier 96E RT PCR Real Time PCR System 96 Wells

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: Gentier96
Minimum Order Quantity: 1 set
Price: USD15000-22000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Sample Capacity: 1~96 Sample Volume: 0-100 μL
Plates Type: 96 PCR Well Plate Display: Touch Screen, PC Controlled
Software: Powerful Data Analysis Function
Highlight:

gentier 96e Real Time PCR System

,

96 Wells gentier pcr

,

gentier 96e RT PCR testing machine

Multiplex DNA Amplification Real-time Quantitative PCR Machine PCR Thermal Cycler



The Gentier96 real-time PCR system is intended for performing rapid, accurate polymerase chain reaction (PCR), meanwhile real-time measuring the nucleic acid signals from DNA-binding fluorescent dyes or labeled probes and converts them to comparative quantitative readouts of DNA or reverse transcribed RNA.

The Gentier96 real-time PCR system can be used in medical institution laboratories and clinical laboratories for infectious pathogens (such as viruses, bacteria, mycoplasma, chlamydia, etc.) detection; or multiple tumor marker tests of neoplastic diseases, etc. For scientific research, it could be used for the fluorescence quantitative or qualitative analysis of genetic materials DNA/RNA in fields of immunology, molecular biology, forensic science, genetics, archeology, zoology, phytology, etc.



Features:

1. DESIGN FOR FLEXIBLE USE

(1)Standard with 10.4' LCD touch screen, functions quickly, accessible through simple, one-touch commands.

(2)Wizard operation to lock and unlock the transport locker.

(3)Message alarm indicate the status of the machine.

(4)USB port update software and firmware. (5)Unique power-off protection function can save all the setted configurations for sudden power outages, and allow the experiment continues when power supply is restored.



2. FAST AND UNIFORM HEATING SYSTEM

(1)Concealed lid with constant temperature and isopiestic pressure.

(2)Electrical controlled elevating & automatic locked platform.

(3)Thermo block is based on improved heat pipe technology, leading to extraordinary lintra-well temperature homogeneity and maximized inter-well, inter-cycle reproducibility.

(4)Highly efficient PID&DSP control algorithm ensures faster respond and stronger interference resistance, fast and uniform heating and heat sinking.


3. System can be installed in three distinct configurationsf providing unmatched flexibility and convenience.
(1)Co-located configuration (PC control).
(2)Standalone (PC-free) configuration (Data can be export by USB and analysis on PC).
(3)Networked configuration (PC software automatically detect all systems in LAN and allow to remote monitoring one of experimental progress and downloading of the completed run file to the PC at your desk,one PC can max control 10 instruments).

Technical datas:
Model
Gentier 96E
Gentier 96R
Thermal Block
Sample capacity(wells)
96
Reaction Volume
0-100 μL
Consumables
0.2ml 96-well Plates(unskirt);
0.2ml 8-strip tubes ,0.2ml PCR single tube
(Optical flat cap,clear,frosted,white tube)
Temperature range
0°C-100°C
Heating/cooling method
Peltier
Max heating rate
6.1°C/sec
Average heating rate
4.5°C/sec
Max cooling rate
5.0°C/sec
Average cooling rate
2.8°C/sec
Temperature accuracy
±0.1℃
Temperature uniformity
±0.1℃
Gradient Range
1°C-40°C
1°C-40°C
Gradient block
12 row
12 row
Special temperature protocol
Gradient PCR,
Long PCR,
Touch Down PCR
Gradient PCR,
Long PCR,
Touch Down PCR
Heat Lid
Temperature range
Room Temperature–110°C
Optical System
Excitation Source
6 LEDs
4LEDs
Detector
Photodiode
Detection Position
Excitation and scan at top
Detection method
6 channels scanning at the same time, no edge effect.
Detection time
7 seconds for 96 wells for all channels
Range of
excitation/emission wavelengths
(nm)
1.465 /510 (FAM,SYBR Green I,SYTO9,EvaGreen,LC Green)
2.527/ 563(HEX,VIC,TET,JOE)
3.580 /616 (ROX,Texas Red)
4.632/ 664( Cy5)
5.680 /730 (Alexa Fluor680)
6.465 /616 (FRET)
1.465 /510 (FAM,SYBR Green I,SYTO9,EvaGreen, LC Green)
2.527/ 563 (HEX,VIC,TET,JOE)
3.580 /616 (ROX,Texas Red)
4.632/ 664( Cy5)
Probe
Taqman Probe,
Molecular beacons probe,
Scorpion probe ,
FRET
Taqman Probe,
Molecular beacons probe,
Scorpion probe
Multiplexing
Up to 6 targets
Up to 4 targets
Fluorescence Linearity
r≥0.990
Fluorescence Dynamic Range
Adjustable
Performance
Sample Linearity
/r/≥0.999
Sample repeatability
Ct value CV≤0.5%
Sample Dynamic Range
1-1010 copies
Software Functions
Data Analysis modes
Qualitative analysis,Absolute quantification, Relative quantification,Genotyping analysis,Endpoint analysis,
Melt curve analysis, High Resolution Melting
Control modes
1.10.4' touch screen
2. PC direct control
3. WLAN control(One PC can control max 10 units, and device can be controlled by any PC in the WLAN)
Sample Drawer
Touch screen commend
Data Stroage
Upload and download through USB disk,1000 results can be stored in machine
Power failure protection
Automatically start running experiments after power supply, no need wait PC software
Customize Report
Templates reserved ,report can customized
Administration Management
Administrator can set functions limits for users
Transport Locker
Automatically detect transport locker
Fault Management
Fault report and analysis, solution instruction
LIS connection
CSV,Excel,TXT format data output,open port for LIS connection
Others
PC operating system
Win 7, Win 10
Communication Port
1 ethernet and 3 USB
Footprint (WxDxH)
355mm X 480mm X 485mm
Weight
30kg
Power usage
AC 100 to 125 V / 200 to 240 V (50/60 Hz).
power consumption
900VA
Work environment
Temperature:10°C~30°C Humidity:20%~85%



Notes:

Gentier 96E Real-time PCR System:
Currently channels are same with Bio-rad CFX96,Qiagen RotorGene Q
Can change FRET to TAMRA/CY3 in future, it can be the same with all ABI qPCR, Agilent Mx3005P



Gentier 96R Real-time PCR System:
Channels are same with Roche LightCycler 96, Agilent Mx3000P



Gentier 96E RT PCR Real Time PCR System 96 Wells 0



Gentier 96E RT PCR Real Time PCR System 96 Wells 1

Gentier 96E RT PCR Real Time PCR System 96 Wells 2

Gentier 96E RT PCR Real Time PCR System 96 Wells 3Gentier 96E RT PCR Real Time PCR System 96 Wells 4

Gentier 96E RT PCR Real Time PCR System 96 Wells 5

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
