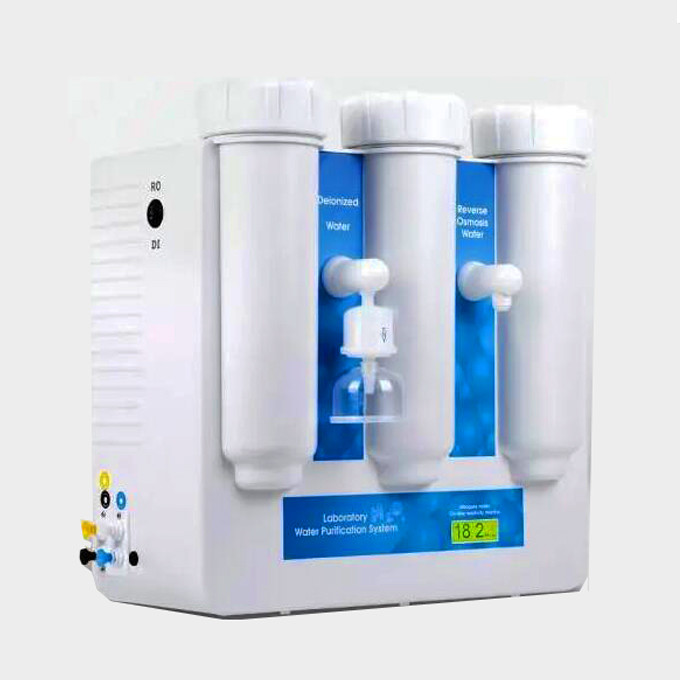

LCD Laboratory Ultrapure Water System Lab Testing Instruments GB/ T6682

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: Smart-D Series
Minimum Order Quantity: 1 set
Price: USD2000-8000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Product Name: Ultra Pure Water Purification System Output: Up To 2 Liters/minute (less Output With UF Cartridge)
Pure Water Outlet: Deionized Water, Ultrapure Water Display: English Color LCD Screen
High Light:

laboratory ultrapure water system LCD

,

LCD ultrapure water system for laboratory

,

Lab Testing Instruments GB/ T6682

Laboratory Ultrapure Water System Ultra Pure Water Purification System Distilled water inlet



The economical choice of ultra-pure water for high-level laboratory use. Using pure water such as distilled water as the water source, the water output can reach 2.0 liters per minute, and the resistivity can reach 18.2MΩ.cm. It is stable and reliable, and fully complies with the Grade I water quality standards formulated by GB/T6682-2008, GB/T33087-2016, ASTM, CAP, CLSI, EP and USP.



With injection molding process case, 1 pump, portable TDS test pen and on-line resistivity monitor, Smart-D series ultrapure water system is sub-economic choice of ultrapure water for high grade experiments.

With pure water or distilled water inlet, its output is up to 2 liters/minute. It can produce deionized water and ultrapure water. The deionized water’s resistivity is above 5MΩ.cm, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.



Features

  1. Injection molding process chassis
  2. One-time injection molding process chassis, made of sanitary PP plastic.
  3. All filter elements are built-in design, integrated and refined, saving experimental space.
  4. Rotatable pretreatment cabinet top cover
  5. The top cover of the chassis can be quickly unscrewed, enabling quick replacement of the pre-filter column without opening the box, conforming to GLP specifications
  6. Fully automatic microcomputer control system
  7. Backlit LCD screen, real-time display of working status and water temperature throughout the process.
  8. The running status is intuitive and easy to read, and the status of flushing, water full, water production and water shortage can be displayed in real time
  9. RO membrane flushing
  10. Fully automatic RO membrane anti-scaling flushing program to prolong the service life of RO membrane.
  11. Easy-to-replace consumable components
  12. Independent preconditioning unit design, using quick-plug connectors, easy to replace.
  13. The newly optimized 4-column ultra-purification column module is convenient for maintenance and replacement. It adopts the original imported nuclear-grade resin from Dow DOW to ensure the quality of pure water at all times.



Technical Specification

Model Standard Eliminating endotoxin Low TOC Synthesizing
  Smart-D Smart-DUF Smart-DUV Smart-DUVF
Output Up to 2 liters/minute (less output with UF cartridge)
Pure water outlet 2: deionized water, ultrapure water
Ultrapure water quality
Resistivity(25℃) 18.2MΩ.cm

TOC* <10ppb <10ppb <3ppb <3ppb
Bacteria <0.1cfu/ml
Particle(>0.1μm) <1/ml
Endotoxin N/A <0.001Eu/ml N/A <0.001Eu/ml
RNases N/A <0.01ng/ml N/A <0.01ng/ml
DNases N/A <4pg/μl N/A <4pg/μl
Deionized water quality
Resistivity(25℃) >5MΩ.cm
Feed water requirements RO water, distilled water, deionized water, 5-45℃,1atm*
Dimension and weight Length×Width×Height:410×220×420mm / Weight: about 16Kg
Electrical requirements AC110-240V, 50/60Hz
Power 72W
Standard configuration Main body (Including 1 set of cartridge)+ TDS/conductivity test pen

Remarks:
*The value will be influenced by temperature and feed water’s quality.



LCD Laboratory Ultrapure Water System Lab Testing Instruments GB/ T6682 0LCD Laboratory Ultrapure Water System Lab Testing Instruments GB/ T6682 1

LCD Laboratory Ultrapure Water System Lab Testing Instruments GB/ T6682 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
