Laboratory Automatic PFI Pulp Refiner Mill ISO 5264/2 EN 25264-2

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-PFI01
Minimum Order Quantity: 1 set
Price: USD5000-15000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: PFI Type Refiner Mill Pulp Beater Paste: Inner Diameter 250mm, Deep 53mm, Rotating Speed: 11.8r / S
Test Standards: ISO 5264/2, DIN-EN 25264-2 Warranty: 12 Month, Life-time Technical Support
High Light:

PFI Pulp Refiner Mill Beater

,

ISO 5264/2 Refiner Mill Pulp Beate

,

EN 25264-2 pulp beater machine

This PFI Type Pulp Refiner Mill Beater is a standard laboratory beating machine with a number of blades and a smooth beating roller that rotates in the same direction but has a different peripheral speed, applies a certain beating pressure to allow the mechanical role between the beating roller and beating chamber, to achieve the purpose of beating. Adjustable the gap between the beating roller and the beating chamber to control the pulp, a wide range and good reproducibility. Especially for medium and high concentration beating.



Test standards:

ISO 5264/2 DIN-EN 25264-2 PFI Type Pulp Refiner Mill Beater, ISO 5264 Paper Pulp Beating Tester

Implementation criteria:

ISO 5264 / 2-1979 "Pulp Lab beating - Part II: PFI Grinding" and ISO 5264/2, TAPPIT248.

ISO 5264/2 DIN-EN 25264-2 PFI Type Pulp Refiner Mill Beater, ISO 5264 Paper Pulp Beating Tester



Technical parameters :

Paste inner diameter 250mm, deep 53mm, rotating speed: 11.8r / s
Flying knife rotor Outer diameter: Φ200mm, height 50mm, knife thickness 5mm, speed: 24.3r / s

3. Flying knife rotor motor: 1.1kW / 380v; 1440r / m.

4. The gap adjustment distance: 0 ~ 25mm.

5. Pulp tank motor: 370W / 380v; 1440r / m

6. Counter display control range: 0-999999 turn

7. The speed difference between the knife roll and the pulp pool is: (6.0 ± 0.2) m / s.

8. Release pulp concentration: 0 ~ 50%, the standard concentration of 10%.

9. Dry pulp 5 ~ 40g, standard 10g, volume 450ml.

10. Beating pressure: (3.33 ± 0.1) N / mm blade length; (1.77 ± 0.1) N / mm blade length; V (4.89 ± 0.1) / mm blade length.

11. Dimensions: 800 × 410 × 950mm

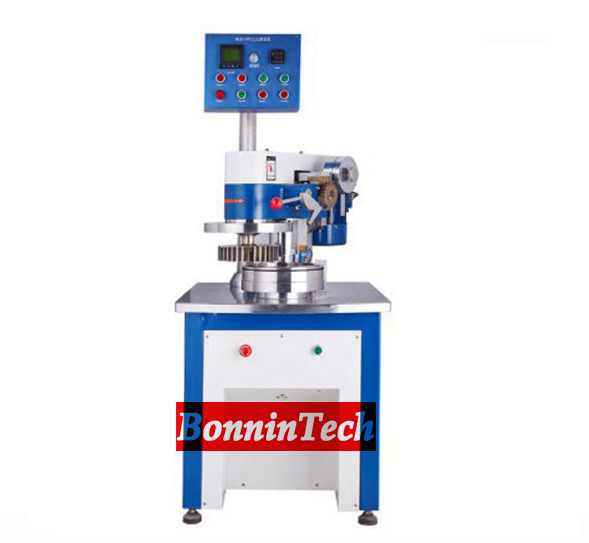

Laboratory Automatic PFI Pulp Refiner Mill ISO 5264/2 EN 25264-2 0

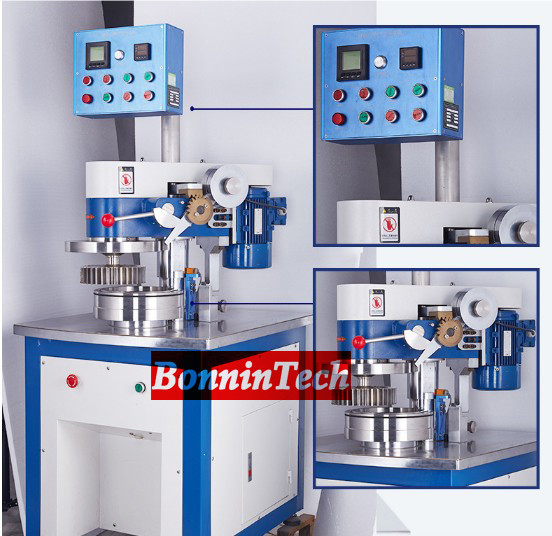

Laboratory Automatic PFI Pulp Refiner Mill ISO 5264/2 EN 25264-2 1



Laboratory Automatic PFI Pulp Refiner Mill ISO 5264/2 EN 25264-2 2



Laboratory Automatic PFI Pulp Refiner Mill ISO 5264/2 EN 25264-2 3Laboratory Automatic PFI Pulp Refiner Mill ISO 5264/2 EN 25264-2 4

Laboratory Automatic PFI Pulp Refiner Mill ISO 5264/2 EN 25264-2 5
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
