YG026H Textile Fabric Universal Tensile Strength Testing Machine Multifunctional

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: YG026H
Minimum Order Quantity: 1 set
Price: USD2000-8000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Test Force Range: 50N~10KN Test Method: Tensile, Tearing, Bursting, Peeling, Constant Elongation, Constant Load, Elasticity
High Light:

YG026H fabric tensile strength tester

,

universal tensile strength testing machine ISO

,

universal tensile strength tester Multifunctional

YG026H Multi-functional Textile Universal Tensile Strength Testing Machine



YG026H Multi-functional Textile Universal Tensile Strength Testing Machine is used for the analysis of mechanical properties such as stretching, tearing, bursting, peeling, constant elongation, constant load, elasticity, stitch slip and modulus of various textiles and rubber, shoe materials, leather, metal, building materials and other materials. test. This equipment is the current high-precision grade, the most complete function, the most stable performance and the high cost performance of the domestic mechanical performance testing instruments.

Related standards
ASTM D5035, ASTM D5034, ASTM D2261, ASTM D5587, ASTM D1683, ASTM D4964, BS EN ISO 13934.1, BS EN ISO 13934.2 , etc.

Instrument features
1. The transmission system adopts imported AC servo drive system, high-end silent planetary reducer, synchronous pulley and imported precision ball screw assembly. The instrument beam moves smoothly, with low noise and high elongation accuracy.
2. The column of the instrument is made of aluminum alloy profile column. The surface of the instrument is treated with high temperature curing spray, which is scratch resistant and not easy to fade.
3. The instrument host adopts touch screen control, the operation is intuitive and simple, and the built-in printer is convenient to use.
4, the instrument uses a variety of protection measures: beam upper and lower limit protection device; fixture anti-collision protection device; sensor overload protection; overcurrent, overvoltage protection; can be set displacement and load limit software protection. Real-time monitoring of major components and display of fault information. Therefore, the instrument is safer and more reliable to use.
5. The instrument adopts an open structure. The user can edit the required test program, data analysis formula and test report according to the type and characteristics of the tested materials and the requirements of the test method. Instrument upgrades and maintenance are easily done with online support.
6, the instrument provides a variety of humanized automatic mode. After the test, the clamp can be automatically opened; the instrument clamping distance is set digitally and automatically positioned.
7, the instrument can be used with professional powerful machine testing software, its software has control instruments; test curve drawing; test data analysis, preservation, management; test report formation, printing and other functions.
8, the instrument can connect to wireless wifi communication, tablet computer.

Technical parameters
1, test range: 50N, 500N, 1000N, 2500N, 5000N, 10000N
2, test method: the principle of constant velocity elongation (CRE)
3, force measurement range: 1%-100% of full scale
4, force measurement accuracy: ≤±0.2%F•S
5, effective acquisition frequency: 1000 times / sec
6, force value resolution: 1/100000
7, displacement speed: 0.001-1000mm/min digital speed regulation, error ≤±1%
8, displacement resolution: 0.001mm
9, sample clamping: manual clamping, pneumatic clamping
10, the maximum stroke of the instrument beam: 1100mm (without fixture)
11, gantry width: 400mm
12, ower supply: AC220V ± 10% 50Hz 500W
13, the external dimensions: 820 × 630 × 1800mm

14, weight: 120kg

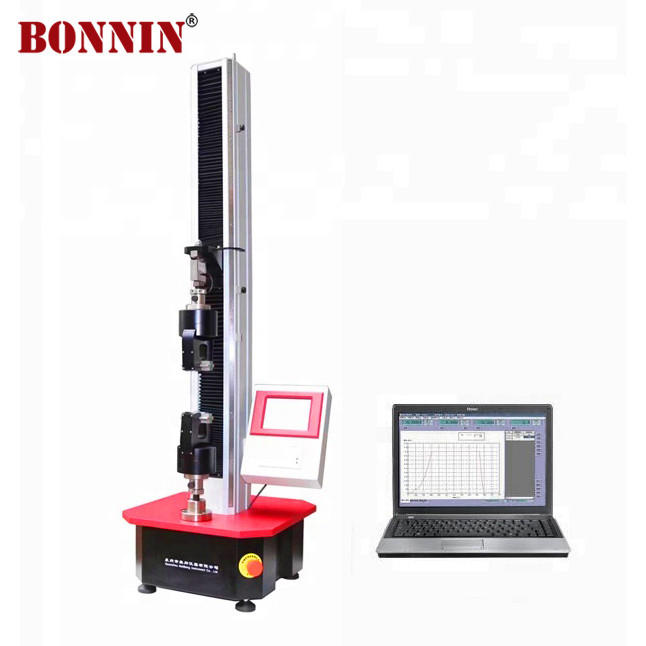

YG026H Textile Fabric Universal Tensile Strength Testing Machine Multifunctional 0

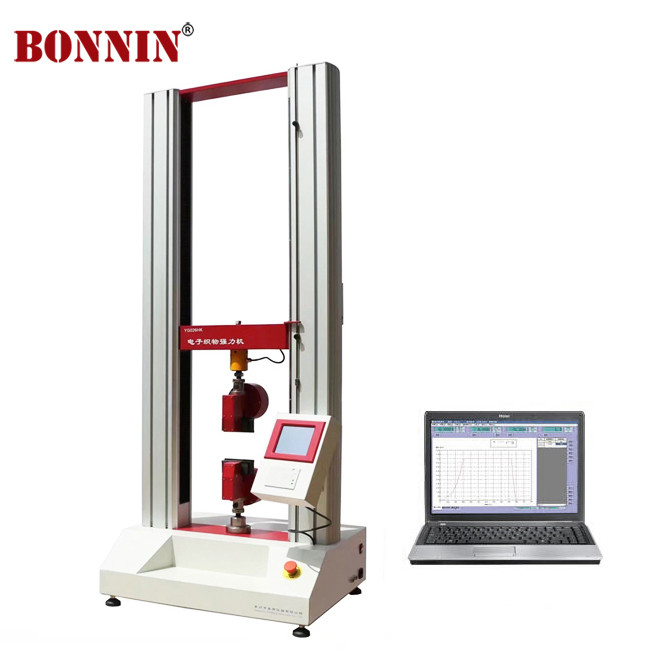

YG026H Textile Fabric Universal Tensile Strength Testing Machine Multifunctional 1YG026H Textile Fabric Universal Tensile Strength Testing Machine Multifunctional 2

YG026H Textile Fabric Universal Tensile Strength Testing Machine Multifunctional 3
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
