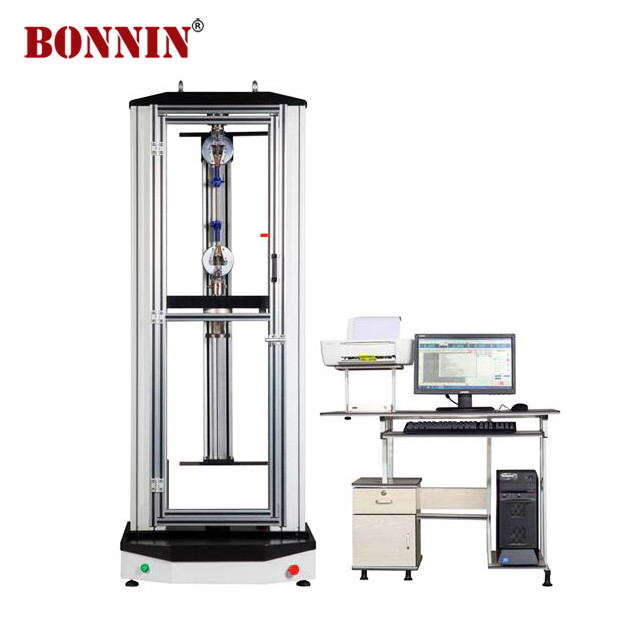

UTM 20KN Computerized Universal Tensile Testing Machine With Extensometer

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: UTM -20KN
Minimum Order Quantity: 1 set
Price: USD5000-12000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Max. Load Force: 20KN Max. Tensile Test Space: 700mm
Functions: Tensile, Compression, Bending, Large Extensometer Warranty Time: 12 Months And Life-time Technical Support
Highlight:

UTM -20KN computerized tensile testing machine

,

20kN universal tensile testing machine

,

computerised tensile testing machine

UTM computer control universal testing machine is used in tensile strength, compression, and bending test applications for metallic, non-metallic, and composite materials. The PC controlling system is able to realize the close-loop control of the parameters such as loading force, specimen deformation, and crosshead stroke etc. The system realizes the screen display, online diagram drawing, testing curve changing, pile curve collation and auto analysis of test results, creation of test report. Especially, the application of the control mode can be manual control or computer programming control, which makes the cyclic tests become available.



2. Test capability of machine and relevant Standard:

ISO 6892-1:2016:Metallic materials — Tensile testing as universal test

ASTM E8 / E8M - 16a Standard Test Methods for Tension Testing of Metallic Materials2.3 ISO 75001 Part 1: Tension/compression testing machines -- Calibration and verification of the force-measuring system

ASTM E4 - 16 Standard Practices for Force Verification of Testing Machines



3. Main Technical Parameters:

Model UTM-20KN
Max. load force 20KN
Max. tensile test space 700mm
Max. Compression Test Space 700mm
Test width 400mm
Crossbeam travel speed 0.01-500mm/min



Testing Specification UTM-20KN
Max.load 20kN
Load accuracy 0.5 class
Load range 0.4%-100%FS
Load resolution 1/300000
Deformation Measurement Range 0.2%~100%
Deformation accuracy ≤±0.5%



Control Specification UTM-20KN
Displacement resolution 0.01mm
Stress rate 0.005%~5%FS/s
Stress rate accuracy range

When rate < 0.05% FS/s, the precision± 1%

When rate ≥ 0.005%FS/s, the precision ±0.5%

Deformation rate 0.005%~5%FS/s
Deformation rate accuracy range

When rate < 0.05% FS/s, the precision± 1%

When rate ≥ 0.005%FS/s, the precision ±0.5%

Cross beam traveling speed 0.01-500mm/min
Displacement control accuracy ±0.2%
Constant load, deformation and displacement control 0.5%~100%FS
Constant load, deformation and displacement control accuracy

Preset value≥10%FN, within the ±0.5% of preset value;

Preset value<10%FN, within the ±1% of preset value

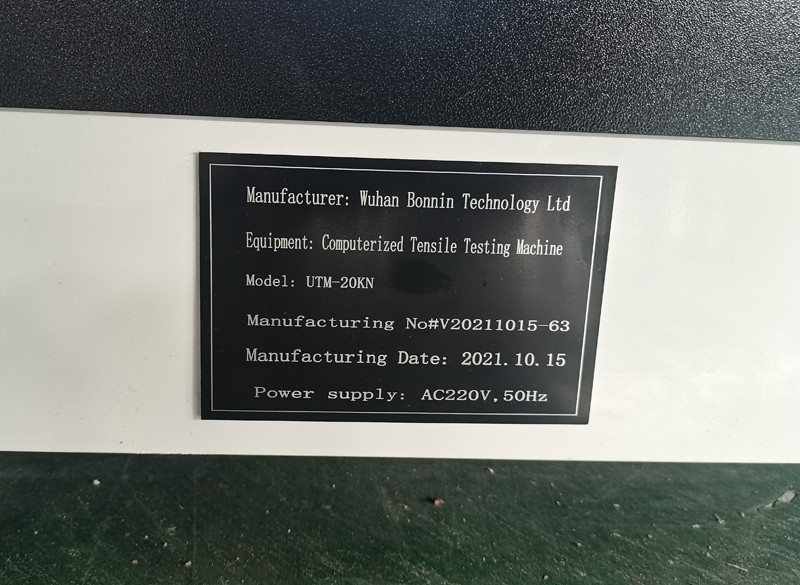

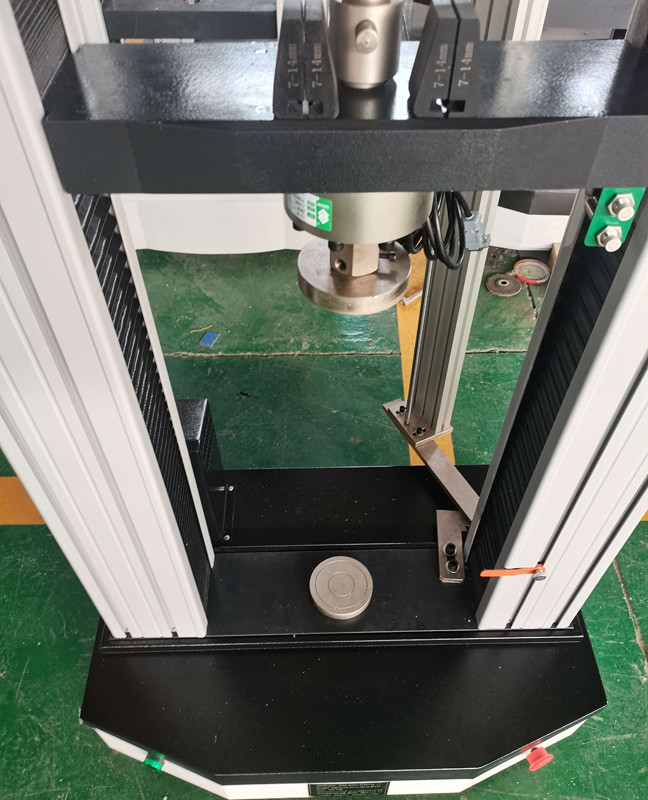

UTM 20KN Computerized Universal Tensile Testing Machine With Extensometer 0UTM 20KN Computerized Universal Tensile Testing Machine With Extensometer 1

UTM 20KN Computerized Universal Tensile Testing Machine With Extensometer 2UTM 20KN Computerized Universal Tensile Testing Machine With Extensometer 3

UTM 20KN Computerized Universal Tensile Testing Machine With Extensometer 4
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
