YT010-5000 Geotextile Universal Tensile Strength Tester GBT 14800 GBT 15788

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: YT010
Minimum Order Quantity: 1 set
Price: USD2000-12000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Test Standards: ISO 10319, ASTM D 4595, ISO 12236 Test Method: Wide Strip Method, Tensile Strength, CBR Bursting Resistance
High Light:

Geotextile universal tensile machine

,

universal tensile strength tester GBT 14800

,

universal strength testing machine GBT 15788

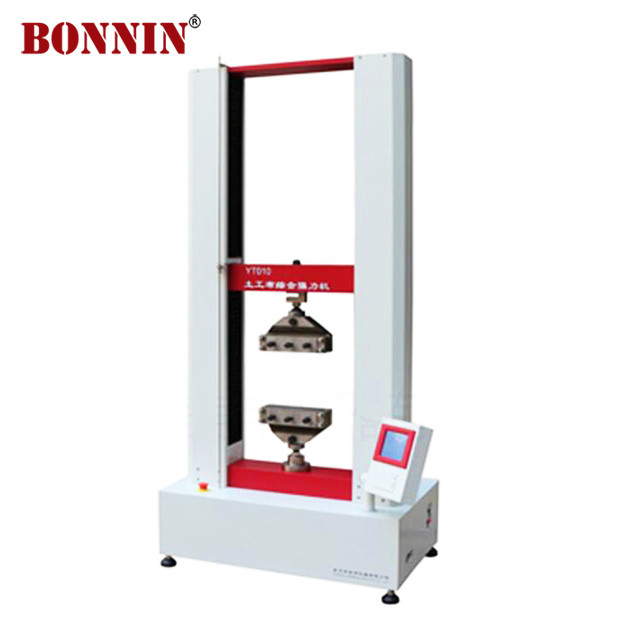

YT010-5000 Multi-functional Geotextile Universal Tensile Strength Testing Machine



YT010-5000 Multi-functional Geotextile Strength Testing Machine, also named Geotextile Universal Tensile Tester. It's used for geosynthetics in transportation, water conservancy, tunnel, construction engineering and other industries, including geotextiles, composite geotextiles, geogrids, geomembranes and related products for stretching, tearing, bursting, peeling, seaming and other properties 's test.



Standards:

GB/T 15788-1995 "Geotextile Tensile Test Method Wide Strip Method"

GB/T 16989-1997 "Geotextile joint/joint wide strip tensile test method"

GB/T 14800-93 "Geotextile Burst Strength Test Method"

GB/T 13763-92 "Tear strength test method of geotextile trapezoid method

JTJ E 50-2006 "Highway Geosynthetics Test Regulations"

SL/T 235-1999 "Geosynthetics Test Regulations"

Tensile Strength - ISO 10319 / ASTM D 4595

Elongation at Break - ISO 10319 / ASTM D4595

CBR Bursting Resistance - ISO 12236

Puncture Resistance - ASTM D 6241



Instrument features:

1. The transmission system adopts imported AC servo drive system, high-end silent planetary reducer, synchronous pulley, and imported precision ball screw components. The instrument beam moves smoothly, with low noise; the elongation precision is high.

2. The column of the instrument is made of aluminum alloy profile column, and the surface of the instrument is treated with high temperature curing spray, which is scratch-resistant and not easy to fade.

3. The instrument host adopts touch screen control, the operation is intuitive and simple, and the built-in printer is easy to use.

4. The instrument adopts a variety of protection measures: upper and lower limit protection devices of beams; fixture anti-collision protection device; sensor overload protection; overcurrent, overvoltage and other protections; displacement and load limit software protection can be set. Real-time monitoring and display of fault information for major components. Therefore, the use of the instrument is safer and more reliable.

5. The instrument adopts an open structure. Users can edit the required test procedures, data analysis formulas, and test reports according to the types and characteristics of the tested materials and the requirements of the test methods. The instrument can be easily upgraded and maintained through online support.

6. The instrument provides a variety of user-friendly automatic modes. After the test, the clamp can be set to automatically open the clamp; the clamping distance is digitally set and automatically positioned.

7. The instrument can be used online with professional testing software for powerful machines, and its software has functions such as controlling the instrument; drawing test curves; analyzing, saving, and managing test data; building and printing test reports.

8, The instrument can wireless wifi communication, ipad.



Technical parameter:

1. Range: 50000N

2. Test method: principle of constant velocity elongation (CRE)

3. Force measurement range: 1%-100% of full scale

4. Force measurement accuracy: ≤±0.2%F•S

5. Effective collection frequency: 1000 times/second

6. Resolution of force value: 1/100000

7. Displacement speed: 0.001-500mm/min, digital speed regulation, error ≤±1%

8. Displacement resolution: 0.001mm

9. Sample clamping: manual clamping, pneumatic clamping

10. The maximum stroke of the instrument beam: 1100mm (excluding clamps)

11. Gantry width: 400mm

12. Power supply: AC220V±10% 50Hz 500W

13. Dimensions: 820×630×1800mm



Geotextile Testing Machine Series

YT010 Multifunctional Electronic Geotextile Strength Testing Machine
YT020 Geotextile Vertical Water Permeability Tester
YT022 Geomembrane Hydrostatic Pressure Tester
YT030 Geotextile Effective Opening Size Tester
YT040 Geotextile Dynamic Perforation Tester
YT050 Geosynthetic Wear Resistance Tester
YT060 Geotextile Thickness Gauge



YT010-5000 Geotextile Universal Tensile Strength Tester GBT 14800 GBT 15788 0

YT010-5000 Geotextile Universal Tensile Strength Tester GBT 14800 GBT 15788 1YT010-5000 Geotextile Universal Tensile Strength Tester GBT 14800 GBT 15788 2

YT010-5000 Geotextile Universal Tensile Strength Tester GBT 14800 GBT 15788 3
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
