Textile Fabric Water Permeability Tester Digital Hydrostatic Pressure Head Tester

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: YG812D
Minimum Order Quantity: 1 set
Price: USD2000-5000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Test Standards: ASTM D751, AATCC 127, DIN 53886 Test Units: Pa, Kpa, MmHg, CmH2O
High Light:

hydrostatic pressure head tester

,

Textile water permeability tester

,

Digital fabric water permeability tester

This YG812D Textile Fabric Water Permeability Tester Digital Hydrostatic Pressure Head Tester is use for waterproofing, hydrostatic test of various fabrics (such as canvas, coated cloth, tent cloth, sheet, rain clothing cloth and geotextile materials, etc.)

Standards
GB / T 4744, FZT 01004, ASTM D751, AATCC 127, DIN 53886, JIS L 1092

Instrument Features
1. Micro-computer touch screen display control, English menu operation, simple and quick operation.
2. The use of computer control of water flow, the pressure rate range and can be adjustable, accurate pressure.
3. The use of imported high-precision pressure sensor, automatic sensor overload protection, pressure control using dynamic feedback adjustment, effectively prevent the pressure overshoot.
4. Manual wheel clamping sample, convenient and quick, so that the sample force evenly to prevent damage to the sample.
5. Two test mode, pressurized method and water leakage method.
6. Built-in new national standard test method has automatic rating function.
7. Test units are free to switch: Pa, Kpa, mmHg, cmH2O.
8. Built-in professional LED lighting device, easy to observe the water droplets.
9. All the contact with the water all the color made of stainless steel.



Technical Parameters

1, technical indicators:

Model Test range Accuracy Water pressure increasing rate Test head area
YG812D-5 100pa-50kpa 0.2%F.S 1000pa-100kpa 100cm²
YG812D -20 500pa-200kpa 1000pa-100kpa
YG812D -50 1kpa-500kpa 1000pa-100kpa 7.8cm²(Optional)

2, pressure display resolution: 0.1pa

3, sensor test accuracy: ≤ 1% (single sensor full range of 5% -100% range)

4, experimental area: 100cm2, 7.8cm2 (optional);

5, pressure rate: 1KPa ~ 10KPa / min (adjustable);

6, working mode: 5 kinds

7, display mode: color in English

8, the use of power: AC 220V ± 10% 50Hz 500W

9, dimensions: 550 × 400 × 5000mm

10, weight: 50kg

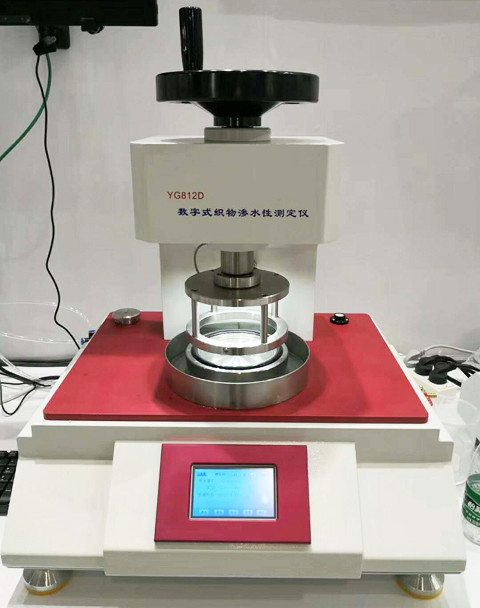

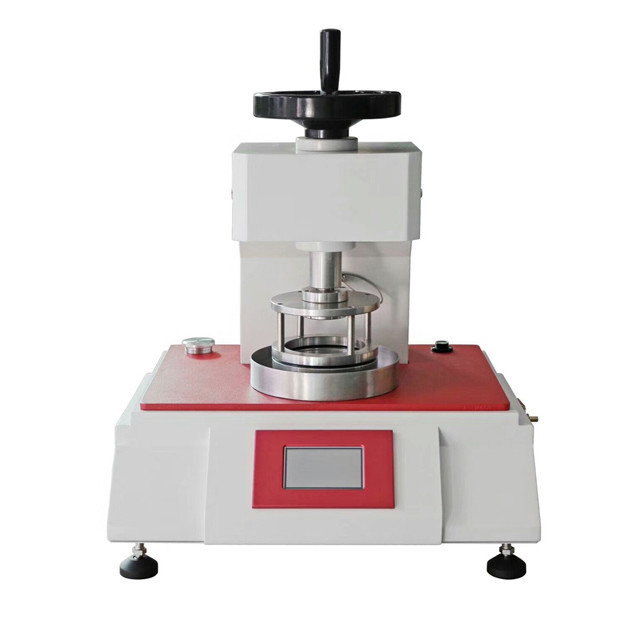

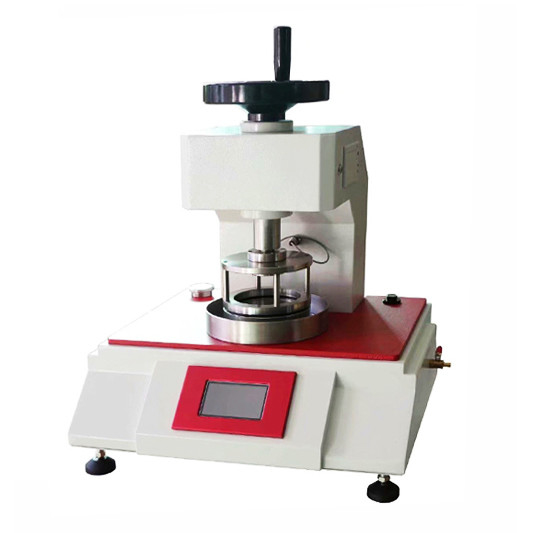

Textile Fabric Water Permeability Tester Digital Hydrostatic Pressure Head Tester 0Textile Fabric Water Permeability Tester Digital Hydrostatic Pressure Head Tester 1

Textile Fabric Water Permeability Tester Digital Hydrostatic Pressure Head Tester 2
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
