Textile Fabric Fully Automatic Air Permeability Testers ASTM D737 YG461G

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: YG461G
Minimum Order Quantity: 1 set
Price: USD5000-12000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Name: Air Permeability Testing Machine Test Standards: ISO 5636, BS 5636, ASTM D737
Test Area: 5cm2; 20cm2; 50cm2; 100cm2
High Light:

BS5636 air permeability testers

,

ASTM D737 Air Permeability Tester

,

air permeability tester for textiles

Textile Fabric Air Permeability Tester YG461G Fully Automatic Filter Paper Air Permeability Testing Machine



This YG461E Digital Air Permeability Tester for air permeability test of variety of textile fabrics, including industrial fabrics, nonwovens and other textile products and filter cloth and filter papers.



Test Standards

GB / T 5453, GB / T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JIS L1096





Features:

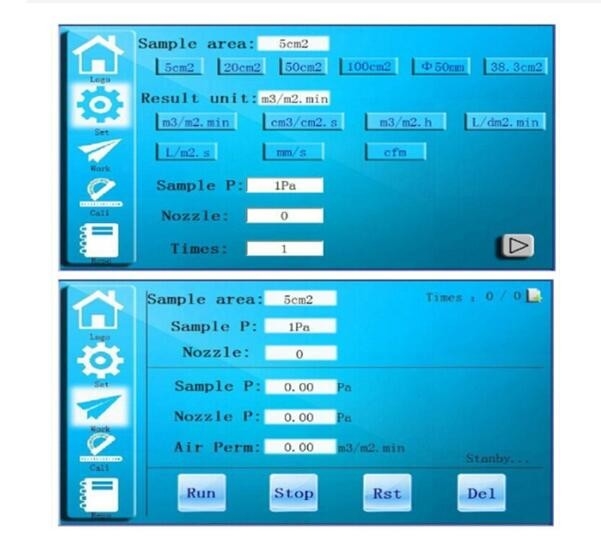

  1. Touch screen control, Chinese and English menu, man-machine dialogue mode, easy to operate.
  2. The built-in thermal printer is convenient for quickly printing the test results on site.
  3. This instrument uses a high-precision differential pressure sensor to replace the traditional water column differential pressure test.
  4. The computer calculates the test data, eliminating the need for manual conversion and table lookup.
  5. The nozzle can be automatically replaced according to the measurement range of each nozzle, and the test area can be automatically detected, which makes the operation simple and easy, and the accuracy and efficiency are higher.
  6. It can be operated on-line with the upper computer of the computer, and the real-time test data curve can be automatically drawn for easy observation.
  7. The test parameters can be set directly by numbers, and the parameter units can be set according to the needs.
  8. The sample fastening device is controlled by the cylinder. When the experiment is started, it will automatically clamp the sample, and there is enough pressing force to ensure the tight fit of the sample fixture.



Technical parameters:

Model YG461G
Operation display Touch screen
Nozzle change method Automatically
Nozzle pressure difference 4,000Pa
Specimen pressure difference 1,000Pa
Permeability range 0.1~12000mm/s
Measuring error ≤±2%
Measuring unit mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min
Testing area 5cm2, 20cm2, 50cm2, 100cm2 , 50mm (≈19.6cm2), 70mm(≈38.3cm2)
Fabric thickness ≤12mm
Nozzle parameter Number 0 1 2 3 4 5 6 7 8 9 10
  Dia. mm 0.8 1.2 2 3 4 6 8 10 12 16 20
Power supply AC 220V 50/60HZ, 2KW
Dimensions 1000 x 410 x 980mm (L x W x H)
Weight 90kg



Accessories:

Standard accessories















1 Set 20cm2 Test plate and fixture
1 Set 38.3cm2 Test plate and fixture
1 Set Standard calibration plate
1 pc Operation software
1 pc Cable connect with PC
1 Set Nozzle
1 pc Power Line
Optional accessories







Optional Other Test plate and fixtures
Optional Computer
Optional Air compressor

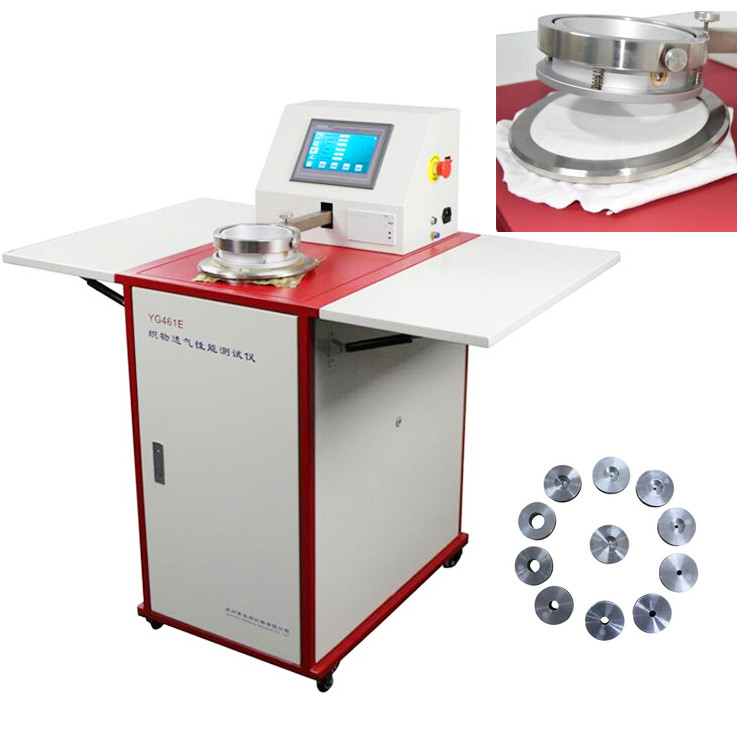

Textile Fabric Fully Automatic Air Permeability Testers ASTM D737 YG461G 0



Textile Fabric Fully Automatic Air Permeability Testers ASTM D737 YG461G 1

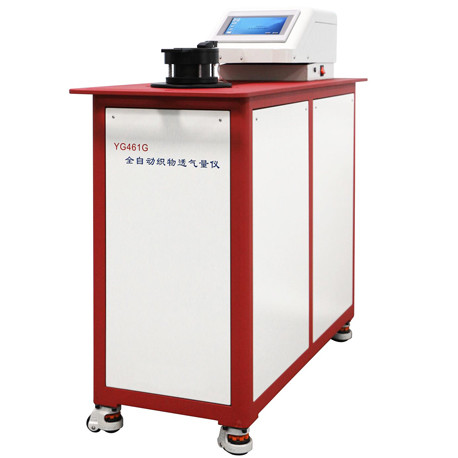

Textile Fabric Fully Automatic Air Permeability Testers ASTM D737 YG461G 2
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
