Fat Extract Automatic Soxhlet Extraction System Soxhlet-6 Lab Testing Instruments

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: Soxhlet-6
Minimum Order Quantity: 1 set
Price: USD5000-9000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Key Words: Automated Soxhlet Extraction Display: English LCD/Touch Screen
Capacity Per Batch: 6pcs/batch Temperature Range: Room Temperature +5℃~300℃
Warranty Time: 12 Months And Life-time Technical Support Power Supply: 220VAC±10%, 50Hz
High Light:

automatic soxhlet extraction system

,

automated soxhlet extraction

,

Soxhlet-6 Lab Testing Instruments

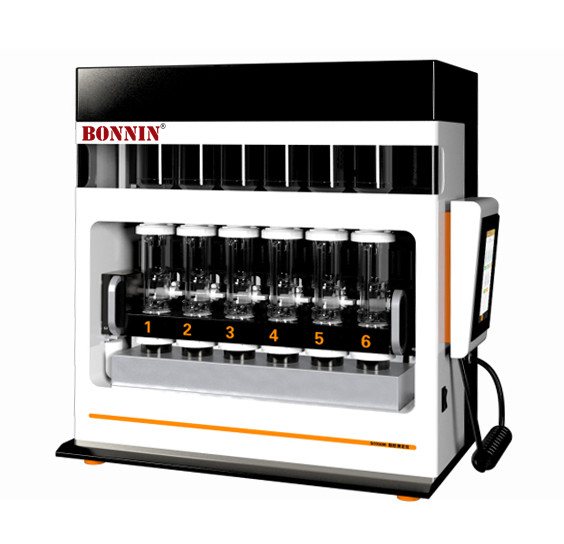

Soxhlet-6 Soxhlet Fat Extract Testing Instrument Automated Soxhlet Extract Instrument



Soxhlet-6 Fully Automatic Soxhlet Fat Extractor, also named Automated Soxhlet Extract Apparatus, is designed based on the Soxhlet extraction principle with weight method to determine the fat content. It has five extraction methods to meet different demands from customer. The whole metal heating module, heating up fast, good effect, low power consumption; access to all-round water temperature, flow control, environmental protection more economical; built-in ether leak detection device to ensure experimental safety. It is widely used in agricultural/ food /chemical /environment and other areas, especially for the drug, soil, sludge,cleaner and other substances in the extraction of soluble organic compounds.



Features:

Technical data:

Temperature range Room temperature +5℃~300℃
Measuring range 0.1~100%
Temperature accuracy ±1℃
Reproducibility Relative error 1%
Sample weight 0.5~15g
Capacity per batch 6pcs/batch
Solvent cup volume 150mL
Solvent recovery ≧85%
Power supply 220VAC±10%, 50Hz
Power 2.6KW
Dimensions 650mm×380mm×720mm
Net Weight 50Kg



Fat Extract Automatic Soxhlet Extraction System Soxhlet-6 Lab Testing Instruments 0

Fat Extract Automatic Soxhlet Extraction System Soxhlet-6 Lab Testing Instruments 1

Fat Extract Automatic Soxhlet Extraction System Soxhlet-6 Lab Testing Instruments 2Fat Extract Automatic Soxhlet Extraction System Soxhlet-6 Lab Testing Instruments 3

Fat Extract Automatic Soxhlet Extraction System Soxhlet-6 Lab Testing Instruments 4

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
