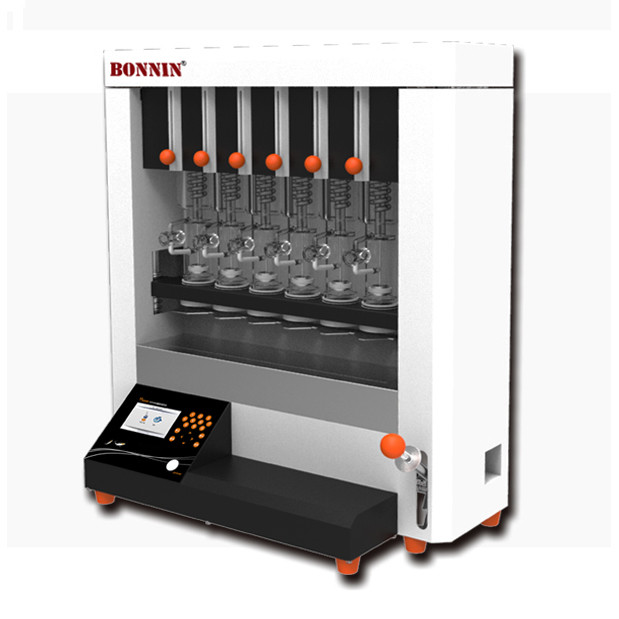

Soxhlet 4 Semi Auto Automatic Fat Extraction Apparatus Machine 50Hz 220VAC

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: Soxhlet-4
Minimum Order Quantity: 1 set
Price: USD2000-5000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Name: Automatic Soxhlet Apparatus Display: English LCD
Capacity Per Batch: 6pcs/batch Temperature Range: Room Temperature +5℃~280℃
Measuring Range: 0~100% Power: 1KW
High Light:

Soxhlet 4 fat extraction apparatus

,

soxhlet extraction machine 50Hz

,

automatic soxhlet apparatus 220VAC

Soxhlet-4 Semi-automatic Soxhlet Fat Extractor, 6 Stations Soxhlet Fat Analyzer



Soxhlet-4 Semi-Automatic Soxhlet Fat Extractor, also named Semi-Automated Soxhlet Extract Apparatus, is designed based on the Soxhlet extraction principle with weight method to determine the fat content. This Soxhlet Fat Analyzer integrates such functions as soaking, extraction, leaching, heating, condensation, and solvent recovery. It features sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation; six samples can be tested at the same time, and optimal temperature can be selected according to the difference between reagent boiling point and ambient temperature to achieve quick analysis; reagents can also be recycled to reduce test cost; and soaking, extraction and solvent recovery can be done in one step. Therefore, this device is characterized by reasonable design, stable performance, good reproducibility, high accuracy, easy operation, saving time and effort, and so on.



Features:

Technical data:

Temperature range Room temperature +5℃~280℃
Measuring range 0~100%
Temperature accuracy ±1℃
Sample weight 0.5~15g(generally 2~5g,depending on sample)
Capacity per batch 6pcs/batch
Solvent cup volume 80mL
Solvent recovery ≥80%
Shortened extraction time 20~80%
Power supply 220VAC±10%, 50Hz
Power 1KW
Dimensions 650mm×320mm×715mm
Net Weight 35Kg



Soxhlet 4 Semi Auto Automatic Fat Extraction Apparatus Machine 50Hz 220VAC 0

Soxhlet 4 Semi Auto Automatic Fat Extraction Apparatus Machine 50Hz 220VAC 1Soxhlet 4 Semi Auto Automatic Fat Extraction Apparatus Machine 50Hz 220VAC 2

Soxhlet 4 Semi Auto Automatic Fat Extraction Apparatus Machine 50Hz 220VAC 3

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
