Lab Tissues Cell Ultrasonic Homogenizer Sonicator 10ml To 600ml LCD Display

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: JY92-IIDN JY96-IIDN
Minimum Order Quantity: 1 set
Price: USD2000-6800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Processing Volume: 10~600ml Optional Display: 7 Inch TFT English Touch Screen Display
High Light:

600ml ultrasonic cell crusher

,

ultrasonic homogenizer sonicator 10ml

,

ultrasonic lab homogenizer LCD

Tissues Cell Ultrasonic Crusher Ultrasonic Homogenizer Sonicator In Laboratory



Application

The Ultrasonic processor, also known as ultrasonic disintegrator, ultrasonic homogenizer, ultrasonic cell crusher, ultrasonic nano-material disperser, etc. The JY-N series is a kind of cavitation effect that uses strong ultrasound to produce cavitation effects in liquids and ultrasonically treat substances. The multi-purpose instrument that can be used to break a variety of animal and plant cells, virus cells, and can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.

Main application

• Used for crushing animal and plant cells, bacteria, spores or tissues, extracting protein from cells, and conducting scientific culture experiments of viruses and vaccines.
• Accelerate the reaction speed of chemistry and physics and accelerate the degassing of liquid.
• Scientific analysis of crude oil dilution, oil-water emulsification, accelerated decrystallization, and glass homogenization.
• Disperse rare earths, various inorganic minerals, and prepare a homogenized mixture of nearly one percent of nanometer emulsion.
• Quick, powerful and high-precision lotion for mold micro-holes and blind holes.
• With new software,central microcomputer centralized control
• It adopts 7 inch TFT touch screen display
• Ultrasonic power step with 1% continuous adjustable.
• With pulse and continuous operation, and with test function
• Ultrasonic time, gap time, and total time can be accurate to 0.1 seconds.

Technical datas:

Model
JY96-IIN
JY88-IIN
JY92-IIN
JY92-IIDN
Frequency
20-25khz
20-25khz
20-25khz
20-25khz
Display
LCD
LCD
LCD
LCD
Adjustable Power Range
150W(5%-99%)
250W(5%-99%)
600W(1%-99%)
900W(1%-99%)
Optional Tip
3mm
3mm
2,3,10,12,15mm
2,3,10,12,15mm
Accompany Tip
6mm
6mm
6mm
6mm
Processing Volume
10-100ml
10-200ml
0.5-500ml
0.5-600ml

Alarm

Time,Overload

Time,Overload

Time,Overload

Time,Overload
Temperature
Alarm

No

No

No
0-99℃ (Prevent sample overheating)
Power Supply
220/110V 50Hz/60Hz

Ditto

Ditto

Ditto
Duty Ratio
1-99%
1-99 %
1-99 %
0.1-99.9 %
The Size of Power Supply Chassis
430*255*300mm
430*255*300mm
430*255*300mm
430*255*300mm
The Size of Sound Abating Trap
345*340*570mm
345*340*570mm
345*340*570mm
345*340*570mm



Horn/ Tip choice:

Tip Model
Frequency(KHZ)
Power Range
Crushing Capacity
Φ2
1/12"
20-25KHz
20-250W
0.5-5ml
Φ3
1/8"
20-25KHz
30-400W
3-10ml
Φ6
1/4"
20-25KHz
60-650W
10-100ml
Φ10
5/12"
20-25KHz/19.5-20.5KHz
100-950W
100-200ml
Φ12
1/2"
20-25KHz
100-950W
100-200ml
Φ15
5/8"
20-25KHz/19.5-20.5KHz
200-950W
200-500ml
Φ18
3/4"
20-25KHz
200-950W
200-500ml
Φ20
3/4"
19.5-20.5KHz
400-1200W
500-1000ml
Φ25
1"
19.5-20.5KHz
800-1800W
500-1200ml

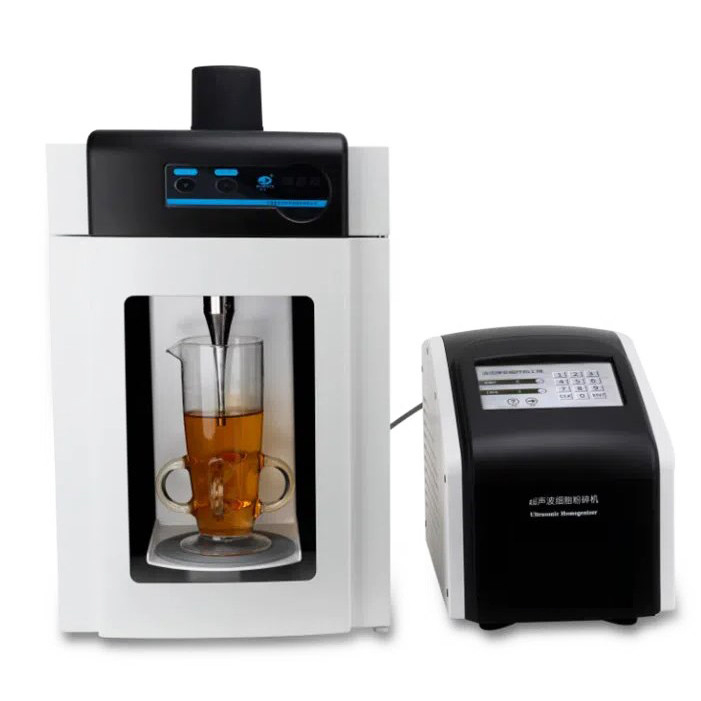

Lab Tissues Cell Ultrasonic Homogenizer Sonicator 10ml To 600ml LCD Display 0

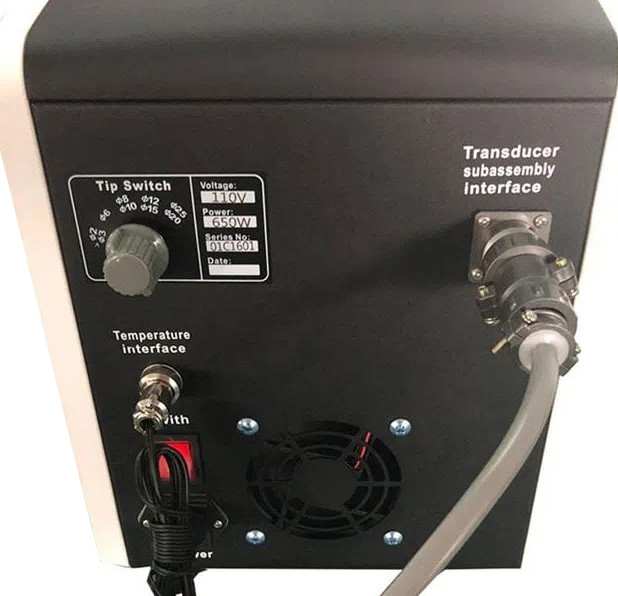

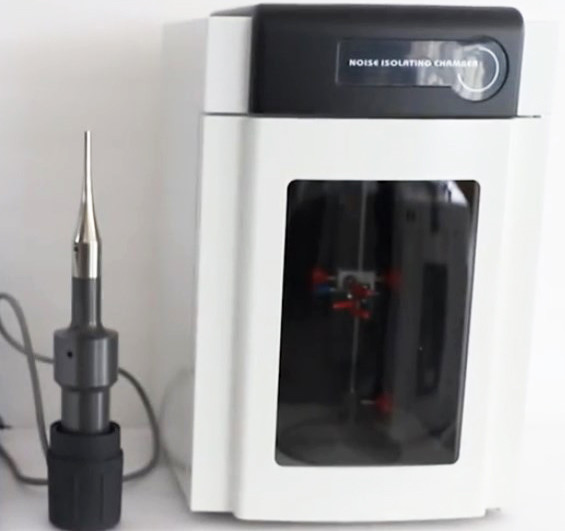

Lab Tissues Cell Ultrasonic Homogenizer Sonicator 10ml To 600ml LCD Display 1Lab Tissues Cell Ultrasonic Homogenizer Sonicator 10ml To 600ml LCD Display 2

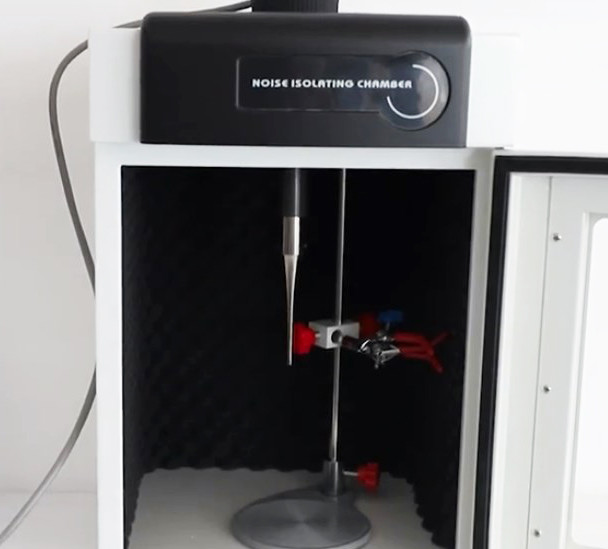

Lab Tissues Cell Ultrasonic Homogenizer Sonicator 10ml To 600ml LCD Display 3

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
