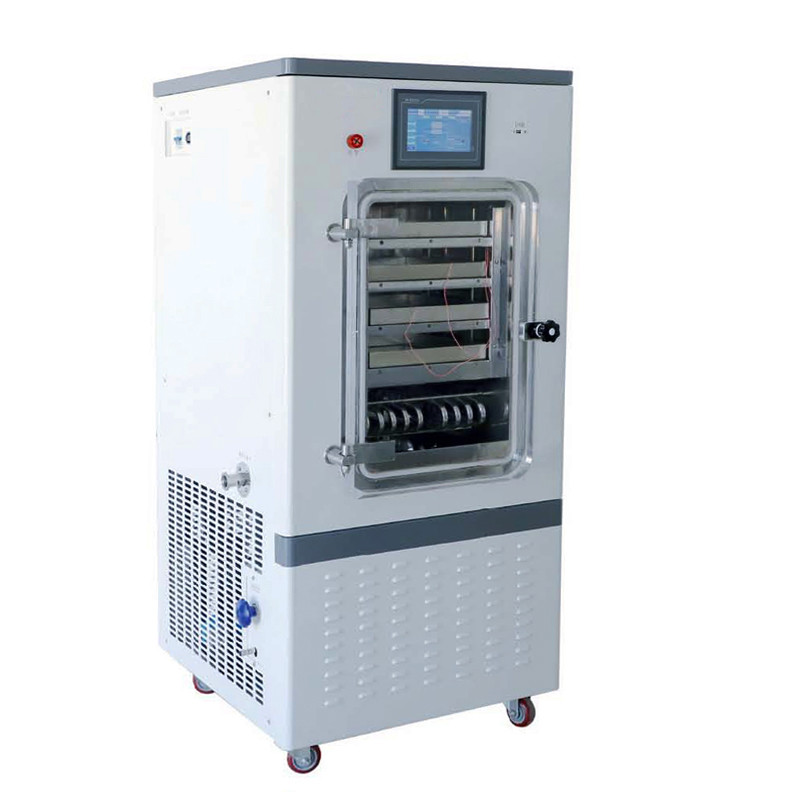

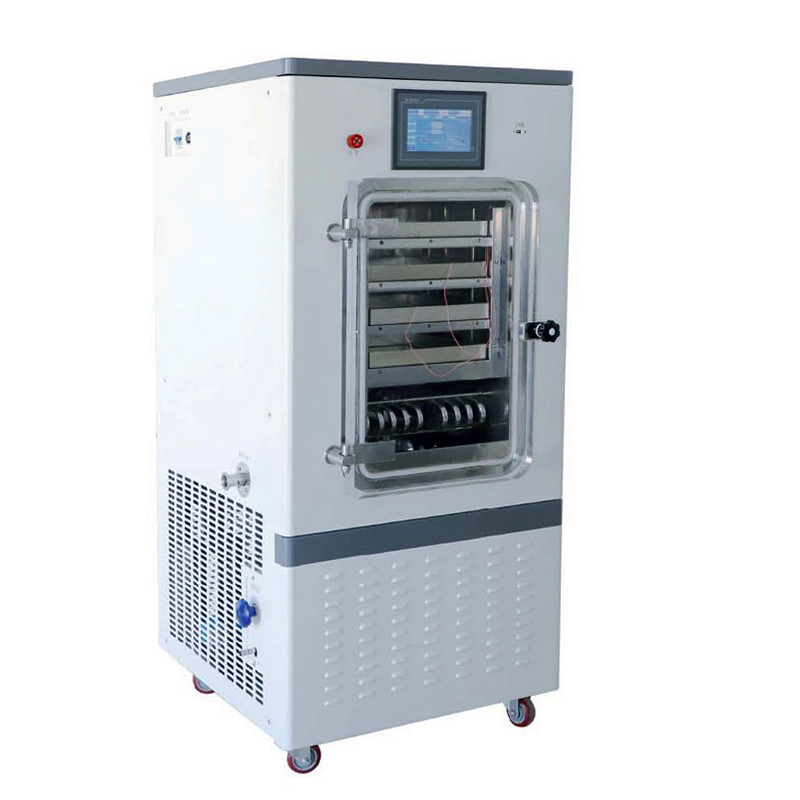

LGJ-20FD LGJ-30FD Coffee Food Commercial Freeze Dry Machine 0.08M2 To 2M2

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: LGJ Series
Minimum Order Quantity: 1 set
Price: USD2000-15000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Capacity: 0.08M2~2M2 Cold Trap Temperature: ≤-56℃, Optional ≤80℃
Display: English Touch Screen Power: AC220V,50Hz
High Light:

LGJ-20FD commercial freeze dry machine

,

LGJ-30FD commercial food freeze dryer

,

2M2 Coffee commercial freeze dryer

LGJ-20FD/30FD/50FD Commercial Coffee Food Vacuum Freeze Dryer Fruits Freeze Drying Equipment

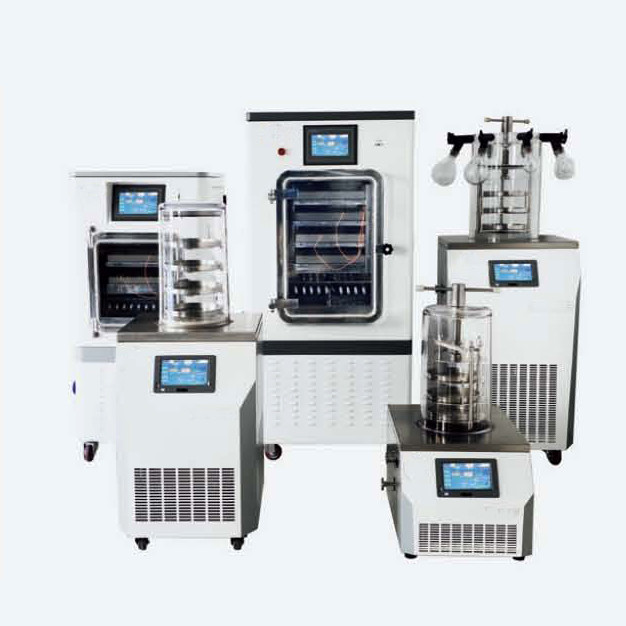

LGJ-10/12/18 Vacuum freeze dryers,small amount of samples can pre-freeze in condenser.They are suitable for lab use or small-scale production,and

they can meet requirements for most laboratories.
Types:A:standard type,B:top press type,C:manifold type,D:manifold with top press type,E:T-type,T:T-type



Features:

■All-in-one structure,small size,no external flange,easy to use,no leakage.
■The cold trap and console are made of stainless steel,which is anti-comrosion and easy to clean.
■All materials in contact with the product use inert materials to meet the requirements of the GLP.
■All stainless steel inflated/water release valve is designed and produced by our Bonnin company,which is safety,anti-corrosion,no leakage.
■ With sample pre-frozen function,large cold trap opening,no inner coil,and low temperature refrigerator is needless.
■ Patented gas diversion technology,and strong ice holding ability.
■ World-known brand compressors,high efficiency,long life,low noise.
■ Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
■ Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
■ Professionally designed FD-LAB freeze-drying machine control system+SH-HPSC-I modular controller with high reliability and stability.
■ Intelligent data recording system can real-time record and display the cold trap temperature curve,sample temperature curve,vacuum curve.
■ Cold trap electric heating defrosting function.





LGJ-20FD LGJ-30FD Coffee Food Commercial Freeze Dry Machine 0.08M2 To 2M2 0

Normal type LGJ-10 LGJ-12 LGJ-18 LGJ-10FD
Freeze-dried area 0.12M2 0.12M2 0.18M2 0.2M2
Number of plate 4 4 6 2
Plates space 70mm 70mm 70mm 70mm
Loadable material 1.2L 1.2L 1.8L 2L
Cold trap temperature ≤-56℃ ≤-56℃ ≤-56℃ -50—+70 electric heating
Water for cold trap 3-4KG/24Hr 3-4KG/24Hr 6KG/24Hr 3-5KG/24Hr
Voltage AC220V/50Hz AC220V/50Hz AC220V/50Hz AC220V/50Hz
Dimension 15×450×(370+430) 580×500×(720+430) 630×580×(970+460) 750*800*1300



Normal type LGJ-20F LGJ-30F LGJ-50F LGJ-100F
Freeze-dried area 0.3M2 0.4M2 0.5M2 1M2
Number of plate 3+1 4+1 4+1 6+1
Plates space 70mm 70mm 70mm 70mm
Plate size 270*400*15 300*340*15 360*480*15 360*480*15
Plate temperature -50℃ to 70℃ -50℃ to 70℃ -50℃ to 70℃ -50℃ to 70℃
Cold trap temperature ≤-75℃ ≤-75℃ ≤-75℃ ≤-75℃
Water for cold trap 4KG/24Hr 6KG/24Hr 8KG/24Hr 15KG/24Hr
Defrost electric defrost Natural defrost Natural defrost electric defrost
Voltage AC220V/50Hz AC220V/50Hz AC380V/50Hz AC380V/50Hz
Dimension 800*800*1550 880*735*1320 960*785*1450 1020*780*1700



LGJ-20FD LGJ-30FD Coffee Food Commercial Freeze Dry Machine 0.08M2 To 2M2 1

LGJ-20FD LGJ-30FD Coffee Food Commercial Freeze Dry Machine 0.08M2 To 2M2 2

LGJ-20FD LGJ-30FD Coffee Food Commercial Freeze Dry Machine 0.08M2 To 2M2 3LGJ-20FD LGJ-30FD Coffee Food Commercial Freeze Dry Machine 0.08M2 To 2M2 4

LGJ-20FD LGJ-30FD Coffee Food Commercial Freeze Dry Machine 0.08M2 To 2M2 5

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
