TP-350 High Temperature Digital Magnetic Hotplate Stirrers Lab Testing Instruments

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: TP-350 Series
Minimum Order Quantity: 1 set
Price: USD400-2000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Product: Hotplate Digital Magnetic Stirrer Temp. Control Range (surface): R.T.+5℃ ~340℃
Platform Size: Φ137mm Speed: 1800(r.p.m)
High Light:

TP-350 Magnetic Hotplate Stirrers

,

digital hotplate magnetic stirrer

,

TP-350 Lab Testing Instruments

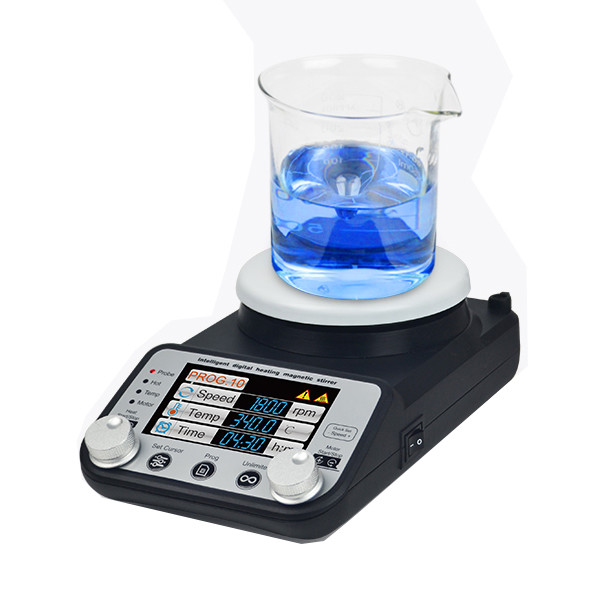

TP-350 High Temperature Magnetic Hotplate Stirrers With Heating Laboratory Magnetic Stirrer Hotplate



The heating plate of the digital magnetic stirrer hot plate series is made of special Ceramic. With special heating technique, the heating plate can reach temperature up to 340°C. Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.



Features:
1. Metal plate shell, firm and durable, thermostability and anti-corrosion.
2. Special heating technique, the heating plate can reach temperature up to 340°C.
3. PID for temperature control. Two display windows. High precision measurement. Single button operation. Inner and outer PT1000 for thermometry. Silicon controlled for output. With couple broken protection function.
4. Available for heating and stirring standard/non-standard reaction flasks from 50ml to 1000ml.
5. DC brushless motor makes stable operation, low noise, long using life and no spark.
6. The heating plate is made of special Ceramic, beautiful, antiseptic and easy for cleaning.
7. The control panel designed 30°slopes for convenient operation.
8. Magnetic stirring technology. Low speed but stable, high speed but powerful.



Model TP-350 TP-350S TP-350E
Platform Size Φ137mm Φ137mm Φ137mm
Platform Material Ceramic Ceramic Ceramic
Speed Range / 100 ~1800rpm 0 ~1800rpm
Temp. Control Range
(surface)
R.T.+5℃ ~340℃ R.T.+5℃ ~340℃ R.T.+5℃ ~340℃
Temp. Setting Range
(surface)
30℃ ~340℃ 30℃ ~340℃ 30℃ ~340℃
Temp. Stability ±3℃ ±3℃ ±3℃
Time Range 1min ~99h59min continuous continuous
Stirring Point Quantity / 1 point 1 point
Max. Stir Capacity (H2O) / 20L 20L
Max. Size of Stirrer Stick / 80mm 80mm
External Interface
Temp. Sensor
PT1000 PT1000 /
Adjustable Safety
Loop Min. Temp.
50℃ 50℃ 50℃
Adjustable Safety
Loop Max. Temp.
350℃ 350℃ 350℃
Voltage AC 220V/AC 110V,
50/60Hz
AC 220V/ AC 110V,
50/60Hz
AC 220V/ AC 110V,
50/60Hz
Power 600W 600W 600W
Fuse 250V, 4A/8A, Ф5x20 250V, 4A/8A, Ф5x20 250V, 4A/8A, Ф5x20
Dimension (WxDxH) 156 x 270 x 70mm 156 x 270 x 70mm 156 x 270 x 70mm
Net Weight 2.2kgs 2.6kgs 2.6kgs

TP-350 High Temperature Digital Magnetic Hotplate Stirrers Lab Testing Instruments 0TP-350 High Temperature Digital Magnetic Hotplate Stirrers Lab Testing Instruments 1

TP-350 High Temperature Digital Magnetic Hotplate Stirrers Lab Testing Instruments 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
