Durable UV Visible Micro Volume Spectrophotometers Automatic Conversion CE ISO

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: K5600
Minimum Order Quantity: 1 set
Price: USD5000-6800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Nucleic Acid Range: 0.4-15000 Ng/μl (DS-DNA) Protein Measurement Range: 00.01-400mg/ml (BSA)
Light Path: 1/0.5/0.05mm Automatic Conversion Sample Volume: 1~2.5μL
Display: English Touch Screen
High Light:

Micro Volume Spectrophotometer CE


durable microvolume spectrophotometers


UV visible Spectrophotometer ISO

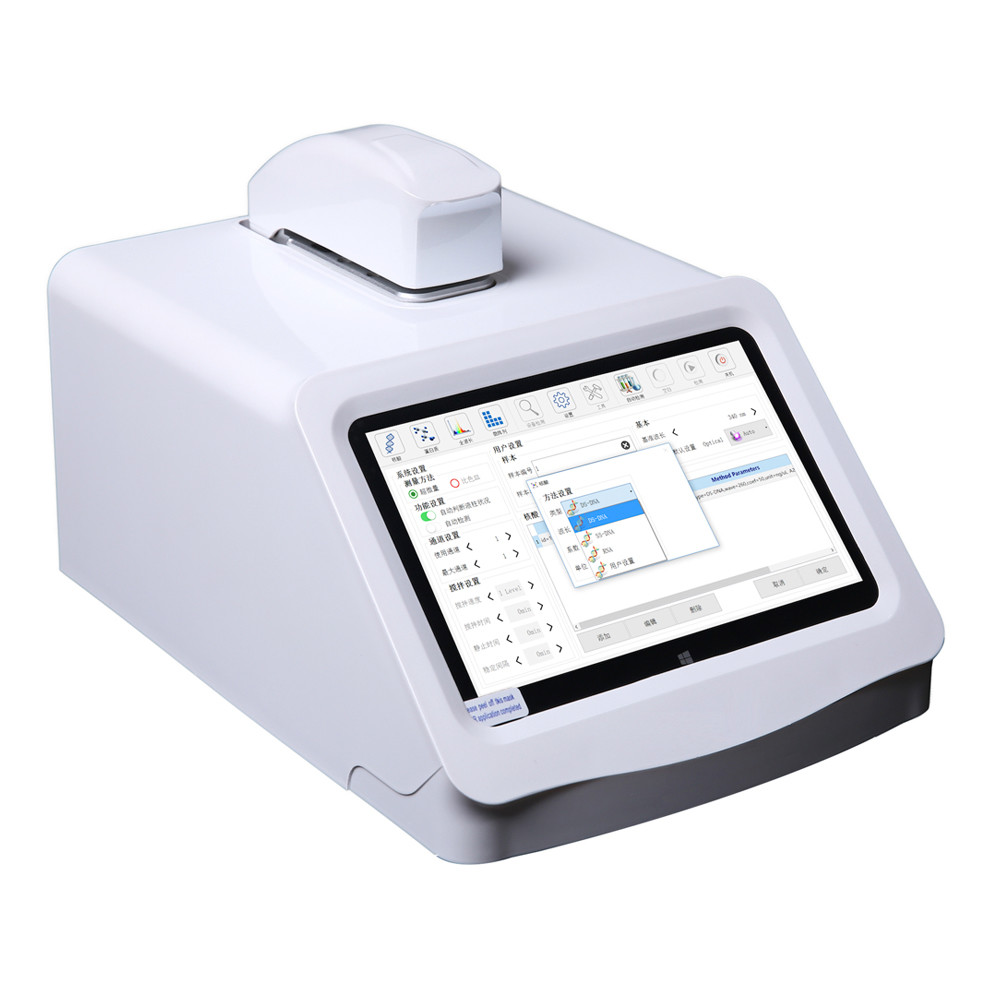

High Quality Nanodrop Microvolume UV-Vis Spectrophotometer UV-visible Spectrophotometer



The amount of samples detected by microvolume UV-visible spectrophotometers is generally about 0.5 μL to 2 μL, and the samples are directly dropped on the sample stage without a cuvette. The ultra-trace UV-Vis spectrophotometer can quantify oligonucleotides, single-stranded DNA, double-stranded DNA, and RNA in buffer. The absorption wavelength of the high absorption peak of nucleic acid is 260 nm, and the absorption peak of protein is 280 nm.


The full-wavelength microvolume spectrophotometer can function like a common UV-Vis spectrophotometer. For example, the BIO-DL MicroDrop can display the absorbance of the sample under light waves from 185 to 910 nm. Absorbance values at up to 40 wavelengths can be detected simultaneously and the data displayed in the report.



★ Platform material: stainless steel and quartz fiber

★ Data can be transferred via USB port or network

★ No need to warm up, boot at any time

★ Save data permanently, you can export or delete it at any time

★ Built-in WIFI for remote assistance

★ Unlimited print test results

★ Built-in detection system, high-definition touch screen

★ Built-in fiber to avoid fiber breakage caused by external force collision, resulting in chaotic measurement results

★ Measurement results are automatically saved to spreadsheet mode

★ Globally unique permanent hard drive save history data function


Technical datas:

Model K5600
Light path 1/0.5/0.05mm automatic conversion
sample volume 1~2.5μL
Light source Long life xenon lamp
Detector 3684-element linear silicide CCD array
Detection range 190~850nm
Wavelength range 190-1100nm
Wavelength accuracy ± 1nm
Wavelength resolution 2 nm (FWHM at Hg 546 nm)
Accuracy of absorbance 0.002 Abs
Absorbance accuracy 1% (0.76 absorbance at 350nm)
Absorbance range 0.002~300Abs, equivalent to 10mm
Detection time less than 3s
Nucleic acid range 0.4-15000 ng/μl (DS-DNA)
Protein measurement range 00.01-400mg/ml (BSA)
Sample measurement time less than 5 seconds
Built-in Method Nucleic Acid, Protein, Full Wavelength Scan
Machine size 20*30*20cm
Machine weight 2.8kg

Durable UV Visible Micro Volume Spectrophotometers Automatic Conversion CE ISO 0


Durable UV Visible Micro Volume Spectrophotometers Automatic Conversion CE ISO 1

Durable UV Visible Micro Volume Spectrophotometers Automatic Conversion CE ISO 2

Durable UV Visible Micro Volume Spectrophotometers Automatic Conversion CE ISO 3

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
