| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | JY92-IIDN JY96-IIDN |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-6800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Processing Volume: | 10~600ml Optional | Display: | 7 Inch TFT English Touch Screen Display |
|---|---|---|---|
| Highlight: | 500ml ultrasonic emulsification equipment,500ml ultrasonic crusher,Tissues Cell ultrasonic emulsifier equipment |
||

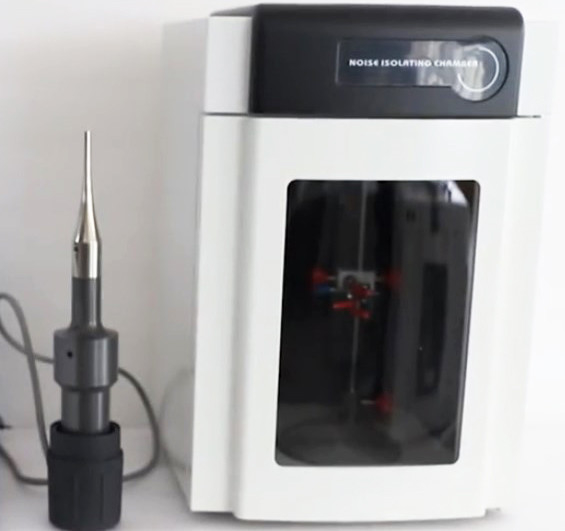

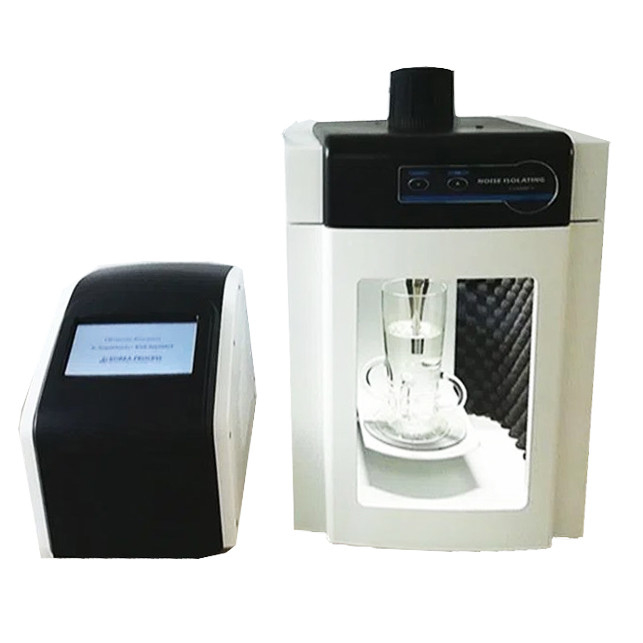

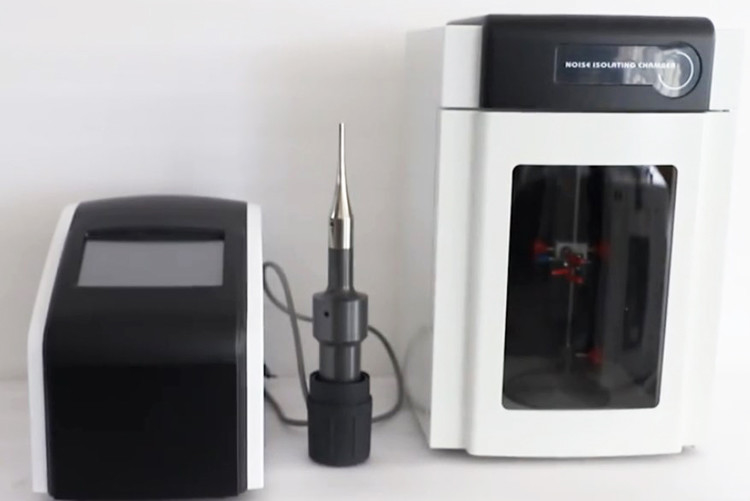

500ml Tissues Cell Pharmaceutical Ultrasonic Crusher Emulsifier Homogenizer Ultrasonic Homogenizer
Application
The Ultrasonic processor, also known as ultrasonic disintegrator, ultrasonic homogenizer, ultrasonic cell crusher, ultrasonic nano-material disperser, etc. The JY-N series is a kind of cavitation effect that uses strong ultrasound to produce cavitation effects in liquids and ultrasonically treat substances. The multi-purpose instrument that can be used to break a variety of animal and plant cells, virus cells, and can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
|
Model
|
JY96-IIN
|
JY88-IIN
|
JY92-IIN
|
JY92-IIDN
|
|
Frequency
|
20-25khz
|
20-25khz
|
20-25khz
|
20-25khz
|
|
Display
|
LCD
|
LCD
|
LCD
|
LCD
|
|
Adjustable Power Range
|
150W(5%-99%)
|
250W(5%-99%)
|
600W(1%-99%)
|
900W(1%-99%)
|
|
Optional Tip
|
3mm
|
3mm
|
2,3,10,12,15mm
|
2,3,10,12,15mm
|
|
Accompany Tip
|
6mm
|
6mm
|
6mm
|
6mm
|
|
Processing Volume
|
10-100ml
|
10-200ml
|
0.5-500ml
|
0.5-600ml
|
|
|
Time,Overload |
Time,Overload |
Time,Overload |
Time,Overload |
|
Temperature
Alarm |
No
|
No
|
No
|
0-99℃ (Prevent sample overheating)
|
|
Power Supply
|
220/110V 50Hz/60Hz
|
|
Ditto |
Ditto |
|
Duty Ratio
|
1-99%
|
1-99 %
|
1-99 %
|
0.1-99.9 %
|
|
The Size of Power Supply Chassis
|
430*255*300mm
|
430*255*300mm
|
430*255*300mm
|
430*255*300mm
|
|
The Size of Sound Abating Trap
|
345*340*570mm
|
345*340*570mm
|
345*340*570mm
|
345*340*570mm
|
Horn/ Tip choice:
|
Tip Model
|
Frequency(KHZ)
|
Power Range
|
Crushing Capacity
|
|
|
Φ2
|
1/12"
|
20-25KHz
|
20-250W
|
0.5-5ml
|
|
Φ3
|
1/8"
|
20-25KHz
|
30-400W
|
3-10ml
|
|
Φ6
|
1/4"
|
20-25KHz
|
60-650W
|
10-100ml
|
|
Φ10
|
5/12"
|
20-25KHz/19.5-20.5KHz
|
100-950W
|
100-200ml
|
|
Φ12
|
1/2"
|
20-25KHz
|
100-950W
|
100-200ml
|
|
Φ15
|
5/8"
|
20-25KHz/19.5-20.5KHz
|
200-950W
|
200-500ml
|
|
Φ18
|
3/4"
|
20-25KHz
|
200-950W
|
200-500ml
|
|
Φ20
|
3/4"
|
19.5-20.5KHz
|
400-1200W
|
500-1000ml
|
|
Φ25
|
1"
|
19.5-20.5KHz
|
800-1800W
|
500-1200ml
|
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
