| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | JY92-IIDN JY96-IIDN |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-6800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Data Storage Function: | 20 Sets Datas | Display: | English Touch Screen |
|---|---|---|---|
| Highlight: | Mini Ultrasonic Homogenizer,homogenizer in microbiology multi purpose,ultrasonic disintegrator biochemistry |
||

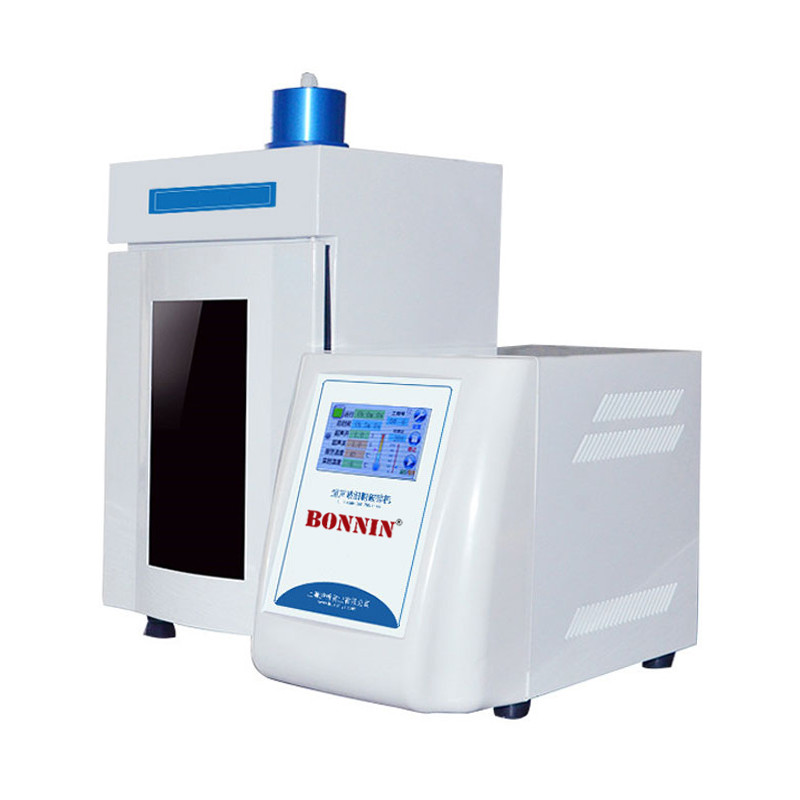

Lab Mini Ultrasonic Homogenizer Ultrasonic Crusher Disintegrator
Application
Ultrasonic Homogenizer is a kind of multi-functional and multi-purpose instrument which uses strong ultrasound to produce cavitation effect in liquid and to deal with substances. It can be used to break up many kinds of animal and plant cells and virus cells. It can also be used for emulsification, separation, extraction, defoaming, degassing, cleaning and accelerating chemical reactions.
Application area
It is widely used in teaching of research and production in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, and pharmaceuticals.
Features
| Model | JY96-IIN | JY88-IIN | JY92-IIN | JY92-IIDN |
| Power | 1.5-150W Continuous | 2.5-250W Continuous | 10-650W Continuous | 10-900W Continuous |
| Mixing capacity | 0.1-150ml ( with optional probe) | 0.1-300ml (with optional probe) | 0.1-500ml (with optional probe) | 0.1-600ml (with optional probe) |
| Optional probe | Φ2,3,8(mm) | Φ2,3,8,10(mm) | Φ2,3,10,12(mm) | Φ2,3,10,12,15(mm) |
| Ultrasonic setting time | 0.1-99.9S | |||
| Single stop time | 0.1-99.9S | |||
| Total time setting | 1-99H59M59S | |||
| Frequency range | 20-25KHz | |||
| Temp control range | 0-100C(Can be customized) | |||
| Alarm Functions | Time, temp, overload ,no-load | Time, temp, overload ,no-load , over temp | ||
| Probe(standard) | Φ6(mm) | |||
| Display Mode | Display Mode | |||
| Data storage | 20sets | |||
| Power(optional110V) | 220V/110V/ 50Hz/60HZ | |||
| Exterior Dimension | 410*225*290(mm) | |||
| Optional function | Computer + data printing function+ soundproof cabinet Lighting and sterilization | |||
| Control Mode | Single chip microcomputer + TFT touch control | |||
| Voice alarm and prompt function | Yes | |||
| Model | HX-IID | JY98-IIIDN | JY99-IIDN | ||
| Power | 10-1000WContinuous | 20-1200WContinuous | 50-1800WContinuous | ||
| Mixing capacity | 0.1-750ml(with optional probe) | 1-1000ml(with optional probe) | 1-1200ml(with optional probe) | ||
| Optional probe | Φ2,3,8,10,12,15(mm) | Φ3,6,10,15,22,25(mm) | Φ3,6,10,15,20,25,28(mm) | ||
| Ultrasonic setting time | 0.1-99.9S | ||||
| Single stop time | 0.1-99.9S | ||||
| Total time setting | 1-99H59M59S | ||||
| Frequency range | 19.5-20.5KHz | ||||
| Temp control range | 0-100C(Can be customized) | ||||
| Alarm Functions | Time, temp, overload ,no-load ,over temp | ||||
| Probe(standard) | Φ6(mm) | Φ20(mm) | Φ22(mm) | ||
| Display Mode | Touch screen | ||||
| Data storage | 20sets | ||||
| Power(optional110V) | 220V/110V/ 50Hz/60HZ | ||||
| Exterior Dimension | 410*225*290(mm) | ||||
| Optional function | Computer + data printing function+ soundproof cabinet Lighting and sterilization | ||||
| Control Mode | Single chip microcomputer + TFT touch control | ||||
| Voice alarm and prompt function | Yes | ||||
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
